BU74-MDDTJ3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8910- )BU72,73,74

Click highlighted areas on diagram

diagram 46453A 9011908086 9011908086 9011908086 9011908086 9011908704 9017008204 9017008204 9017008204 9017008204 9017008204 9017908144 9046112364 9046112365 9046112366 9046112368 9094901167 9094901169 9161160816
Part # Description Qty Price
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-36050

BU72,73,74

 1
Common parts
90119-08086
90119-08704
90170-08204
90179-08144
90461-12364
90461-12365
90461-12366
90461-12368
90949-01167
90949-01169
91611-60816

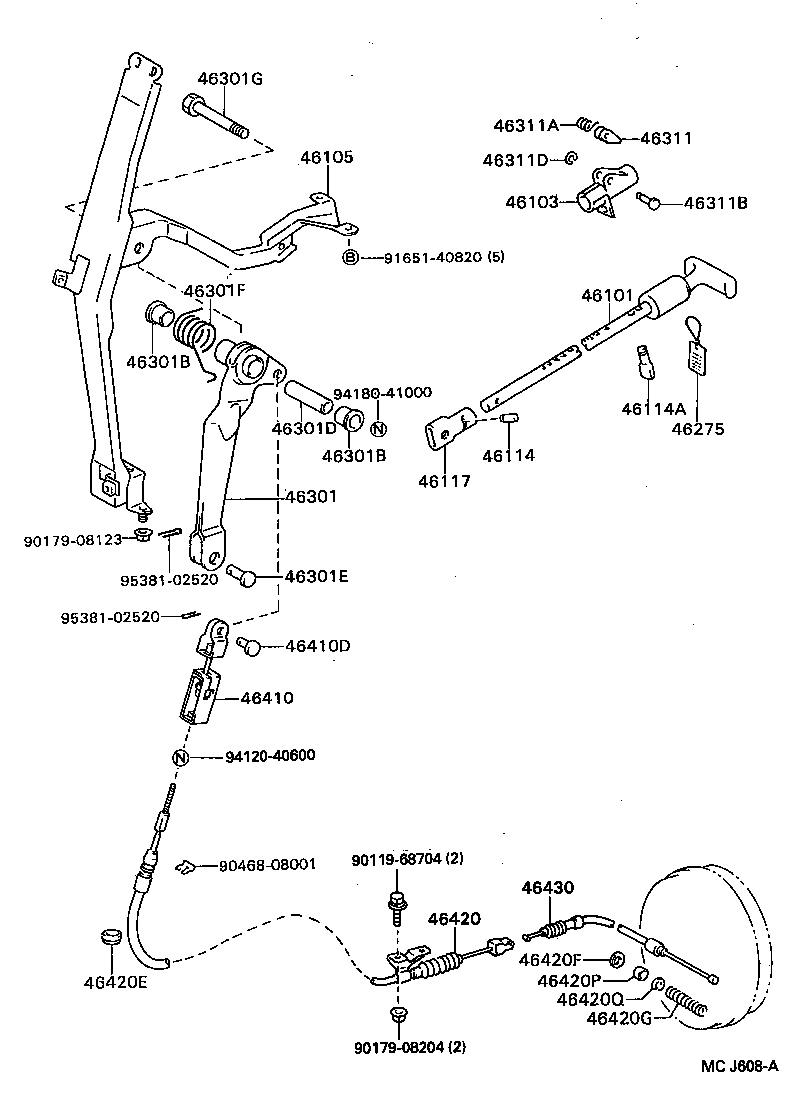

ILLUST NO. 1 OF 3(8910- )BU72,73,74

Click highlighted areas on diagram

diagram 46101 46103 46105 46114 46114A 46117 46275 46301 46301B 46301B 46301D 46301E 46301F 46301G 46311 46311A 46311B 46311D 46410 46410D 46420 46420E 46420F 46420G 46420P 46420Q 46430 9011968704 9017908123 9017908204 9046808001 9165140820 9412040600 9418041000 9538102520 9538102520
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-3618001

BU6#,72,74,78,8#,9#..TOY

BLACK,TRIM8#

 1
46101-36210

BU6#,7#,8#,9#

 1
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-36140

BU6#,7#,8#,9#

 1
46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL
46105-25012

BU6#,7#,8#,9#

 1
46105-25010

BU6#,7#,8#,9#

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-30010

BU6#,7#,8#,9#

 1
46114A - PIN, PARKING BRAKE PLUNGER
46114-20010

BU6#,7#,8#,9#

 1
46117 - SLEEVE, PARKING BRAKE PLUNGER
46117-30010

BU6#,7#,8#,9#

 1
46275 - PLATE, PARKING BRAKE RELEASE CAUTION
46275-26010

BU6#,7#,8#,9#

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-36070

BU6#,7#,8#,9#

 1
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-13007

BU6#,7#,8#,9#

 2
46301B - BUSH(FOR INTERMEDIATE LEVER)
90386-13007

BU6#,7#,8#,9#

 2
46301D - COLLAR(FOR INTERMEDIATE LEVER)
90387-10004

BU6#,7#,8#,9#

 1
46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER)
90240-08010

BU6#,7#,8#,9#

 1
46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90508-35024

BU6#,7#,8#,9#

 1
46301G - BOLT(FOR INTERMEDIATE LEVER)
91111-71070

BU6#,7#,8#,9#

 1
46311 - PAWL, PARKING BRAKE
46311-26010

BU6#,7#,8#,9#

 1
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08041

BU6#,7#,8#,9#

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
90249-05010

BU6#,7#,8#,9#

 1
46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL)
90213-03007

BU6#,7#,8#,9#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-36350

BU6#,7#,8#,9#

 1
46410D - PIN(FOR PARKING BRAKE FRONT CABLE)
90240-08094

BU6#,7#,8#,9#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-36370

BU72,73,74

 1
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
90480-25026

BU6#,7#,8#,9#

 1
46420F - SEAL, DUST(FOR PARKING BRAKE CABLE)
90303-10001

BU6#,7#,8#,94

 1
46420G - SPRING(FOR PARKING CABLE INNER WIRE SET)
90501-14003

BU72,73,74;BU66,78,85,87,88,94..275,30T

 1
46420P - SPACER, PARKING BRAKE
90560-08002

BU6#,7#,8#,94

 1
46420Q - RING, E(FOR PARKING BRAKE CABLE)
96160-00700

BU6#,7#,8#,94

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-36270

BU72,73,74

 1
Common parts
90119-68704
90179-08123
90179-08204
90468-08001
91651-40820
94120-40600
94180-41000
95381-02520
