BU74-MDDTJ3 (1989)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL | ||||
| 38907-93119 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38907-93119 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38907-93119 |
BU72,73,74..TR..03S |
1 | ||
| 38907-93119 |
BU72,73,74..TR..03S |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93111 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38920-93111 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38920-93111 |
BU72,73,74..TR..03S |
1 | ||
| 38920-93111 |
BU72,73,74..TR..03S |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93111 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38920-93111 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38920-93111 |
BU72,73,74..TR..03S |
1 | ||
| 38920-93111 |
BU72,73,74..TR..03S |
1 | ||
| Common parts | ||||
| 82711-95410 | ||||
| 90109-06043 | ||||
| 90249-10110 | ||||
| 90461-07033 | ||||
| 90480-40004 | ||||
| 90520-15002 | ||||
| 91111-60670 | ||||
| 91611-60610 | ||||
| 91611-60855 | ||||
| 91611-61025 | ||||
| 91611-61055 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94611-11600 | ||||
| 96160-00900 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 8413 | ||||

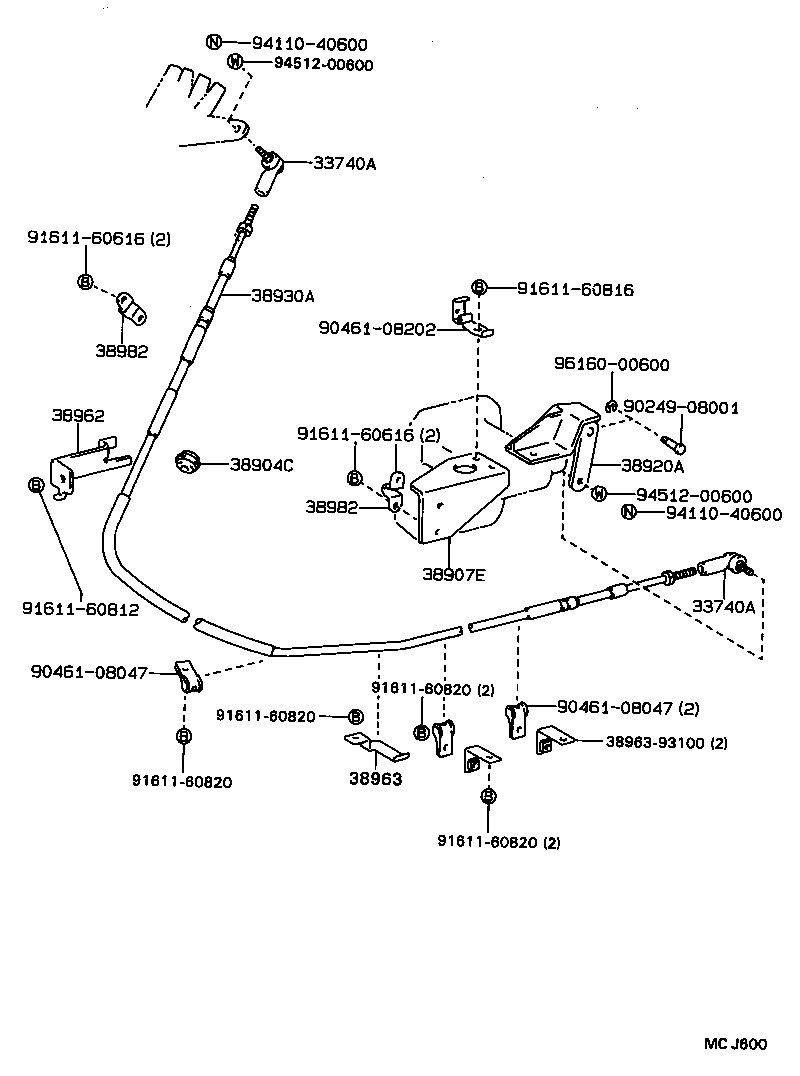

ILLUST NO. 2 OF 2(8910- )BU72,73,74..TR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33740A - END ASSY, PUSH-PULL CONTROL CABLE | ||||
| 33740-96301 |
BU73..IV4;BU67,73..T3;BU66..DM5..IV3;BU67..4FC..CBU;BU60,61,66,68,72,74,78,8#,9#..(DM1,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..5F..(DSL,TD) |
2 | ||
| 33740-96301 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
2 | ||
| 33740-96301 |
BU67..T3;BU67..4FC..CBU;BU66..DM5..IV3;BU60,61,66,68,72,73,74,78,8#,9#..(DM1,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 33740-96301 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 33740A - END ASSY, PUSH-PULL CONTROL CABLE | ||||
| 33740-96301 |
BU73..IV4;BU67,73..T3;BU66..DM5..IV3;BU67..4FC..CBU;BU60,61,66,68,72,74,78,8#,9#..(DM1,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..5F..(DSL,TD) |
2 | ||
| 33740-96301 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
2 | ||
| 33740-96301 |
BU67..T3;BU67..4FC..CBU;BU66..DM5..IV3;BU60,61,66,68,72,73,74,78,8#,9#..(DM1,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 33740-96301 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 38904C - GROMMET, PUSH PULL CABLE | ||||
| 90480-22013 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
1 | ||
| 90480-22013 |
BU73..IV4;BU67..4FC..CBU;BU72,73..DM3,T3,T4;BU6#,74,78,8#,9#..(DMP,TR)..5F..(DSL,TD) |
1 | ||
| 90480-22013 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
1 | ||
| 90480-22013 |
BU67..4FC..CBU;BU72..DM3,T3,T4;BU6#,73,74,78,8#,9#..(DMP,TR)..5F |
1 | ||
| 38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL | ||||
| 38907-93119 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38907-93119 |
BU72,73,74..TR..03S |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93111 |
BU72,73,74..TR..(CBU,IV3) |
1 | ||
| 38920-93111 |
BU72,73,74..TR..03S |
1 | ||
| 38930A - CABLE ASSY, PUSH PULL | ||||
| 38930-93117 |
BU72,73,74,78,85,88,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38930-93117 |
BU88..5F;BU72,73,74,78,9#..TR..5F..03S |
1 | ||
| 38962 - BRACKET, CABLE CLAMP, NO.2 | ||||
| 38962-96304 |
BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
1 | ||
| 38962-96304 |
BU73..03S;BU73..IV4;BU67..4FC..CBU;BU6#,72,74,78,8#,9#..(DMP,TR)..5F..(DSL,TD) |
1 | ||
| 38962-96304 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
1 | ||
| 38963 - BRACKET, CABLE CLAMP, NO.3 | ||||
| 38963-93100 |
BU72,73,74..TR..(CBU,IV3) NO.1 |
2 | ||
| 38963-96307 |
BU72,73,74..TR..03S NO.2 |
1 | ||
| 38963-93100 |
BU72,73,74..TR..03S NO.1 |
2 | ||
| 38963-96307 |
BU72,73,74..TR..(CBU,IV3) NO.2 |
1 | ||
| 38982 - CLAMP, PUSH PULL CABLE, NO.1 | ||||
| 38982-96302 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 38982-96302 |
BU73..IV4;BU67,73..T3;BU67..4FC..CBU;BU66..TR..5F..CBU;BU66..(DM1,DM5,T2,T3,T4,TW1,TW4)..5F..(IV3,IV4);BU60,61,68,72,74,78,8#,9#..(DM1,T1,T2,T3,T4,TW1,TW2,TW4)..5F..(DSL,TD) |
2 | ||
| 38982-96302 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
2 | ||
| 38982-96302 |
BU67..T3;BU67..4FC..CBU;BU66..TR..5F..CBU;BU66..(DM1,DM5,T2,T3,T4,TW1,TW4)..5F..(IV3,IV4);BU60,61,68,72,73,74,78,8#,9#..(DM1,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 38982 - CLAMP, PUSH PULL CABLE, NO.1 | ||||
| 38982-96302 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DM1,DM2,DM4,DM5,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| 38982-96302 |
BU73..IV4;BU67,73..T3;BU67..4FC..CBU;BU66..TR..5F..CBU;BU66..(DM1,DM5,T2,T3,T4,TW1,TW4)..5F..(IV3,IV4);BU60,61,68,72,74,78,8#,9#..(DM1,T1,T2,T3,T4,TW1,TW2,TW4)..5F..(DSL,TD) |
2 | ||
| 38982-96302 |
BU67..4FC..CBU;BU6#,72,73,74,78,8#,9#..(DMP,TR)..5F |
2 | ||
| 38982-96302 |
BU67..T3;BU67..4FC..CBU;BU66..TR..5F..CBU;BU66..(DM1,DM5,T2,T3,T4,TW1,TW4)..5F..(IV3,IV4);BU60,61,68,72,73,74,78,8#,9#..(DM1,T1,T2,T3,T4,TW1,TW2,TW4)..5F |
2 | ||
| Common parts | ||||
| 38963-93100 | ||||
| 90249-08001 | ||||
| 90461-08047 | ||||
| 90461-08202 | ||||
| 91611-60616 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 96160-00600 | ||||
