BU74-MDDTJ3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )BU72,73,74

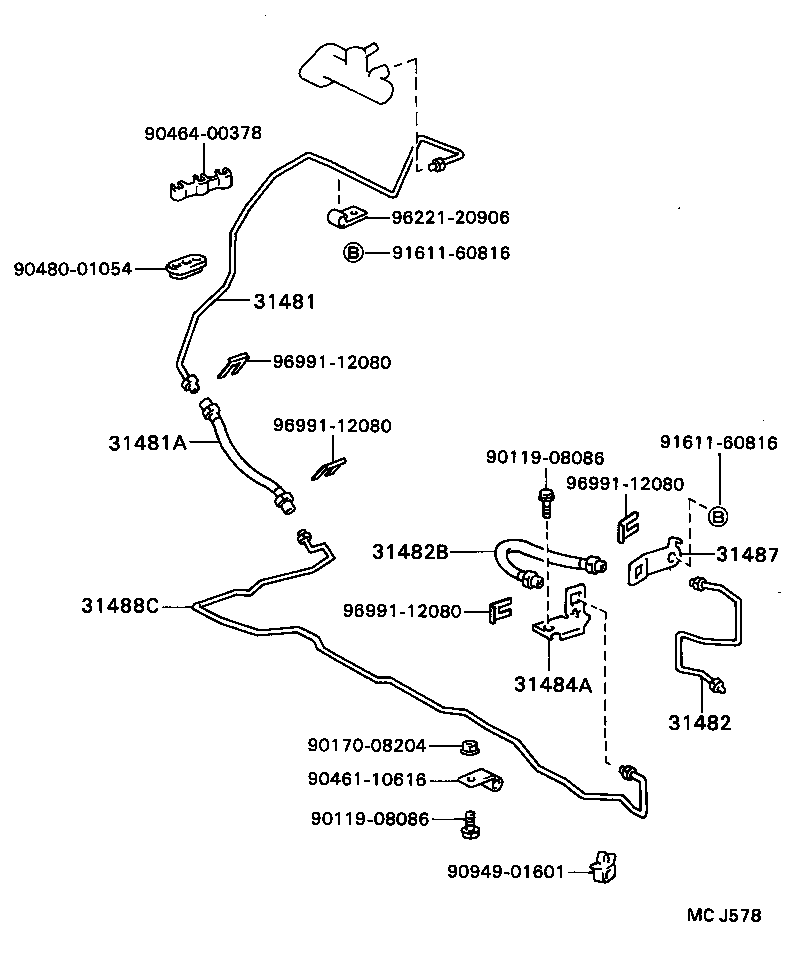

Click highlighted areas on diagram

diagram 31481 31481A 31482 31482B 31484A 31487 31488C 9011908086 9011908086 9017008204 9046110616 9046400378 9048001054 9094901601 9161160816 9161160816 9622120906 9699112080 9699112080 9699112080 9699112080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-36281

BU66,67,68,72,73,74,87..(DMP,TR)..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-02514

BU72,73,74

 1
96932-33705

BU6#,70,72,73,74,83,84,87..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36161

BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F..(DSL,TD)

 1
31482B - HOSE, CLUTCH, NO.2
96818-50280

BU72,73,74

 1
96818-50260

BU60,61,66,68,70,72,73,74,83,84,87..5F..DSL

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-36150

BU72,73,74

 1
31484-36151

BU72,73,74

 1
31487 - PLATE, RELEASE TUBE SET
31487-36151

BU6#,7#,8#,9#..5F..(DSL,TD)

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31488-36391

BU72,73,74

 1
31488-36390

BU72,73,74

 1
Common parts
90119-08086
90170-08204
90461-10616
90464-00378
90480-01054
90949-01601
91611-60816
96221-20906
96991-12080
