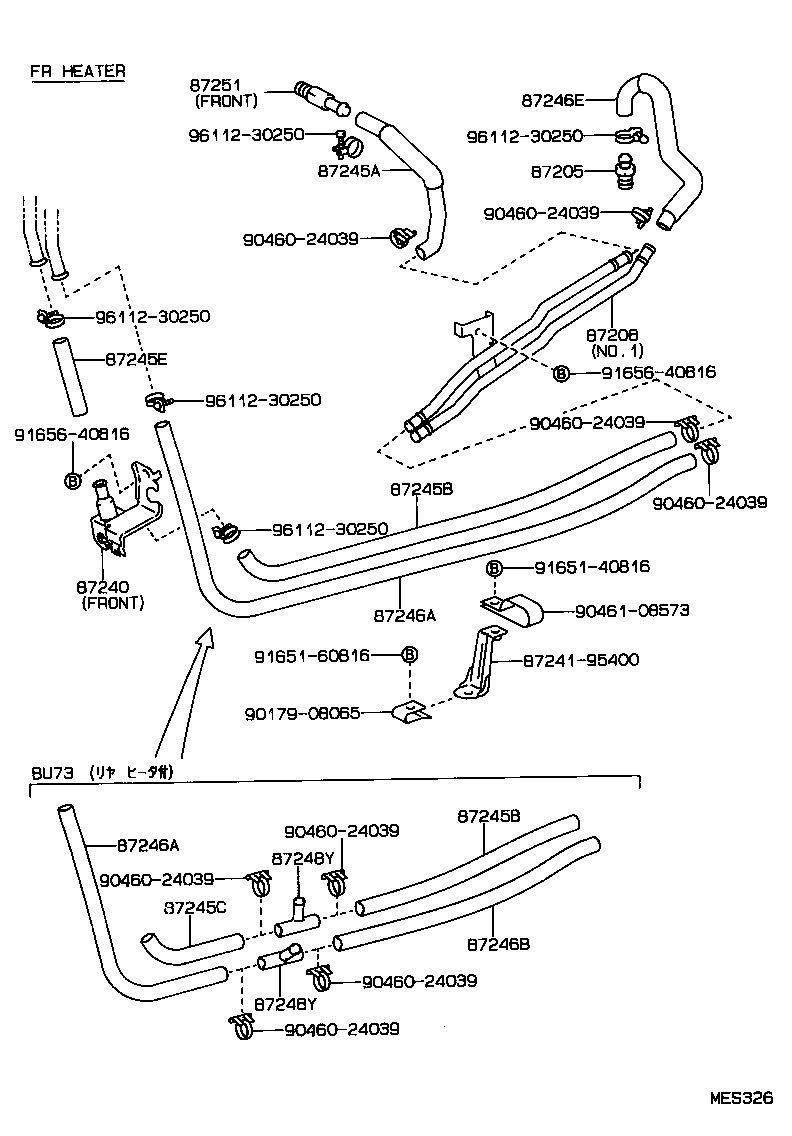

Toyota Dyna/toyoace BU74 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200	BU72,73,74	10/1989 - 05/1995	1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95414	BU72,74 NO.1	10/1989 - 05/1990	1
87208-95414	BU72,73,74	05/1990 - 05/1995	1
87245A - HOSE, HEATER WATER, INLET A
87245-95469	BU72,73,74	10/1989 - 05/1995	1
87245B - HOSE, HEATER WATER, INLET B
99556-30660	BU72,73,74 *H,L=660	10/1989 - 05/1995	1
87245B - HOSE, HEATER WATER, INLET B
99556-30660	BU72,73,74 *H,L=660	10/1989 - 05/1995	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980	BU6#,70,72,73,74,83,84,87..DSL *H,L=980	08/1988 - 05/1995	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980	BU6#,70,72,73,74,83,84,87..DSL *H,L=980	08/1988 - 05/1995	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95482	BU72,73,74	10/1989 - 05/1995	1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-95403	BU72,73,74	10/1989 - 05/1995	1
Common parts
87241-95400
90179-08065
90460-24039
90461-08573
91651-40816
91651-60816
91656-40816
96112-30250

BU74-MDDTJ (1989)
