BU74-MDDTJ (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )BU72,73,74

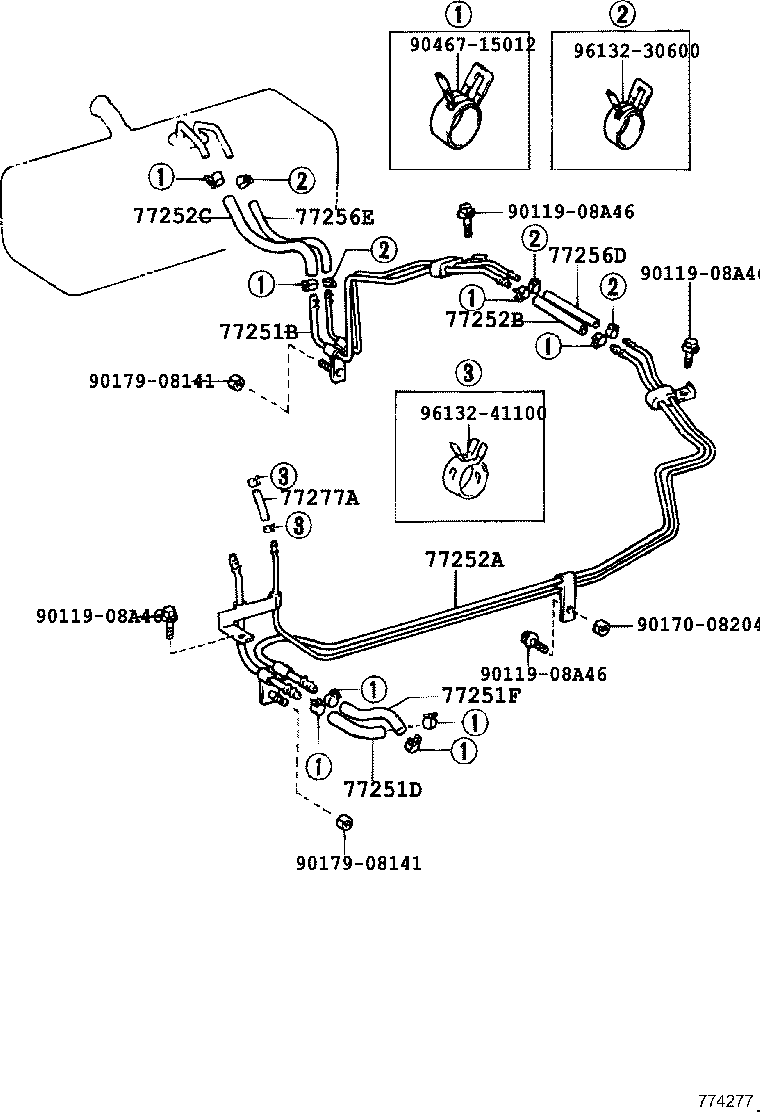

Click highlighted areas on diagram

diagram 77251B 77251D 77251F 77252A 77252B 77252C 77256D 77256E 77277A 9011908A46 9011908A46 9011908A46 9011908A46 9017008204 9017908141 9017908141 9046715012 9613230600 9613241100
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77205-36660

BU72,73,74..03S

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
77259-36170

BU73..03S;BU60,61,66,68,70,72,74,84,87..DSL..(CBU,IV3)

 1
77252A - TUBE, FUEL MAIN, NO.2
77206-36371

BU72,74

 1
77206-36370

BU72,74

 1
77206-36500

BU72,73,74..TR..03S

 1
77206-36371

BU72,73,74..TR..03S

 1
77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
95332-10014

BU60,61,66,68,70,72,73,74,83,84,87..DSL

*H,L=140

 1
77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE)
95332-10040

BU87..V;BU87..06S;BU87..T3..4FC;BU66..275,30T;BU60,66..T3..ST;BU87..T3..5F..CBU;BU61,72,73,74..DM3,DM4,T3

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06020

BU67..DM1;BU60,61,66,68,7#,8#,91..DSL,TD

 1
95333-06020

BU60,61,66,68,7#,83,84,87,88,91

 1
77256E - HOSE, FUEL, NO.2 (FOR FUEL RETURN NO.2 TUBE)
95333-06040

BU87..V;BU87..T3..4FC;BU66..275,30T;BU60,66..T3..ST;BU87..T3..5F..CBU;BU61,72,73,74..DM3,DM4,T3

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-56010

BU6#,7#,83,84,87,88,91,94,96..DSL,TD

長さ=220

 1
Common parts
90119-08A46
90170-08204
90179-08141
90467-15012
96132-30600
96132-41100
