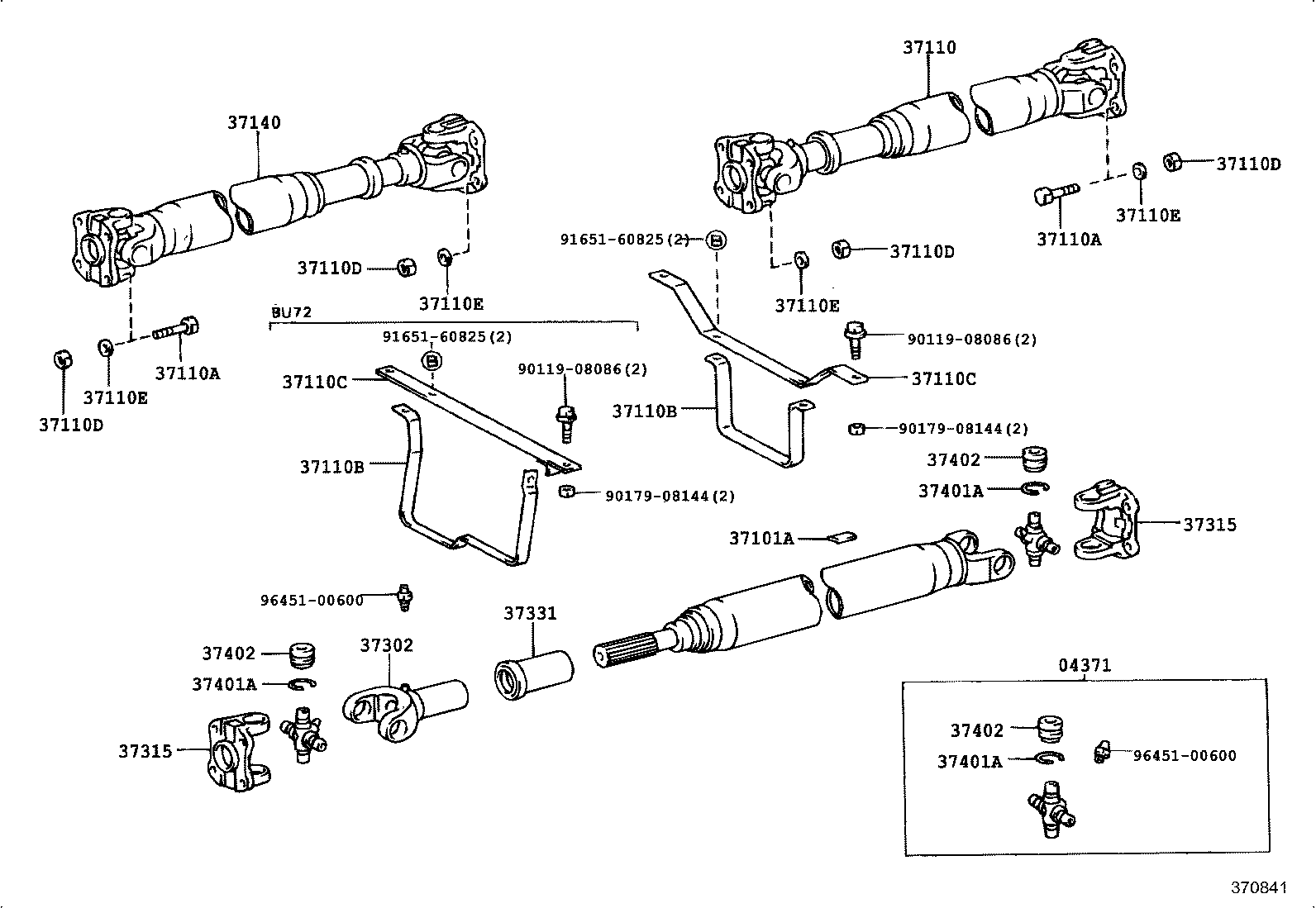

BU74-MDDT3 (1989)
Toyota Dyna/Toyoace
(8910- )BU72,73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-36030 |
BU6#,7# |
4 | ||
| 04371-36030 |
BU6#,70,73,74,78 |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01149 |
BU6#,7#,8#,9# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BU6#,7#,8#,9# 8G,長さ=16.6 |
1 | ||
| 90937-01191 |
BU6#,7# 8G,厚さ=1.6 |
1 | ||
| 90937-01194 |
BU6#,7# 20G,厚さ=4.5 |
1 | ||
| 90937-01147 |
BU6#,7#,8#,9# 2G,厚さ=2.0 |
1 | ||
| 90937-01152 |
BU6#,7#,8#,9# 14G,長さ=29.0 |
1 | ||
| 90937-01132 |
BU6#,7#,8#,9# 10G,長さ=20.7 |
1 | ||
| 90937-01192 |
BU6#,7# 12G,厚さ=4.5 |
1 | ||
| 90937-01148 |
BU6#,7#,8#,9# 4G,厚さ=2.0 |
1 | ||
| 90937-01184 |
BU6#,7# 4G,厚さ=1.6 |
1 | ||
| 90937-01274 |
BU6#,7# 60G,長さ=28.7 |
1 | ||
| 90937-01269 |
BU6#,7# 40G,長さ=25.6 |
1 | ||
| 90937-01272 |
BU6#,7# 52G,長さ=26.7 |
1 | ||
| 90937-01151 |
BU6#,7#,8#,9# 12G,長さ=24.9 |
1 | ||
| 90937-01273 |
BU6#,7# 56G,長さ=28.7 |
1 | ||
| 90937-01271 |
BU6#,7# 48G,長さ=24.6 |
1 | ||
| 90937-01147 |
BU6#,70,73,74,78,8#,9# 2G,厚さ=2.0 |
1 | ||
| 90937-01149 |
BU6#,70,73,74,78,8#,9# 6G,長さ=12.4 |
1 | ||
| 90937-01150 |
BU6#,70,73,74,78,8#,9# 8G,長さ=16.6 |
1 | ||
| 90937-01268 |
BU6#,7# 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01151 |
BU6#,70,73,74,78,8#,9# 12G,長さ=24.9 |
1 | ||
| 90937-01132 |
BU6#,70,73,74,78,8#,9# 10G,長さ=20.7 |
1 | ||
| 90937-01270 |
BU6#,7# 44G,長さ=22.6 |
1 | ||
| 90937-01193 |
BU6#,7# 16G,厚さ=4.5 |
1 | ||
| 90937-01152 |
BU6#,70,73,74,78,8#,9# 14G,長さ=29.0 |
1 | ||
| 90937-01148 |
BU6#,70,73,74,78,8#,9# 4G,厚さ=2.0 |
1 | ||
| 90937-01191 |
BU6#,70,73,74,78 8G,厚さ=1.6 |
1 | ||
| 90937-01184 |
BU6#,70,73,74,78 4G,厚さ=1.6 |
1 | ||
| 90937-01270 |
BU6#,70,73,74,78 44G,長さ=22.6 |
1 | ||
| 90937-01268 |
BU6#,70,73,74,78 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01273 |
BU6#,70,73,74,78 56G,長さ=28.7 |
1 | ||
| 90937-01271 |
BU6#,70,73,74,78 48G,長さ=24.6 |
1 | ||
| 90937-01193 |
BU6#,70,73,74,78 16G,厚さ=4.5 |
1 | ||
| 90937-01272 |
BU6#,70,73,74,78 52G,長さ=26.7 |
1 | ||
| 90937-01192 |
BU6#,70,73,74,78 12G,厚さ=4.5 |
1 | ||
| 90937-01194 |
BU6#,70,73,74,78 20G,厚さ=4.5 |
1 | ||
| 90937-01269 |
BU6#,70,73,74,78 40G,長さ=25.6 |
1 | ||
| 90937-01274 |
BU6#,70,73,74,78 60G,長さ=28.7 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-36710 |
BU74 |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BU72,73,74,8#,9# *11−1.00PX28−16 |
8 | ||
| 90105-11013 |
BU73,74,8#,9# *11−1.00PX28−16 |
8 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
BU72,73,74,8#,9# *11−1.00PX28−16 |
8 | ||
| 90105-11013 |
BU73,74,8#,9# *11−1.00PX28−16 |
8 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36140 |
BU74 |
1 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 51569-36140 |
BU74 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-36120 |
BU74 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51568-36120 |
BU74 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU6#,70,73,74,78 |
8 | ||
| 90179-11005 |
BU6#,7# |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU6#,70,73,74,78 |
8 | ||
| 90179-11005 |
BU6#,7# |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU6#,70,73,74,78 |
8 | ||
| 90179-11005 |
BU6#,7# |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
BU6#,70,73,74,78 |
8 | ||
| 90179-11005 |
BU6#,7# |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU73,74 |
8 | ||
| 90201-11013 |
BU72,73,74 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU73,74 |
8 | ||
| 90201-11013 |
BU72,73,74 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU73,74 |
8 | ||
| 90201-11013 |
BU72,73,74 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
BU73,74 |
8 | ||
| 90201-11013 |
BU72,73,74 |
8 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-36010 |
BU73,74 |
1 | ||
| 37140-36010 |
BU72,73,74 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
BU6#,7#,8#,9# |
1 | ||
| 37302-36020 |
BU6#,70,73,74,78,8#,9# |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU6#,7# |
2 | ||
| 37315-36020 |
BU6#,70,73,74,78 |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-36020 |
BU6#,7# |
2 | ||
| 37315-36020 |
BU6#,70,73,74,78 |
2 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37305-36050 |
BU73,74 |
1 | ||
| 37305-36050 |
BU72,73,74 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29025 |
BU6#,7# 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29024 |
BU6#,7# 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29027 |
BU6#,7# 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
BU6#,70,73,74,78 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
BU6#,70,73,74,78 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29024 |
BU6#,70,73,74,78 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29026 |
BU6#,7# 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
BU6#,70,73,74,78 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29025 |
BU6#,7# 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29024 |
BU6#,7# 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29027 |
BU6#,7# 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
BU6#,70,73,74,78 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
BU6#,70,73,74,78 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29024 |
BU6#,70,73,74,78 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29026 |
BU6#,7# 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
BU6#,70,73,74,78 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-29025 |
BU6#,7# 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29024 |
BU6#,7# 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29027 |
BU6#,7# 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
BU6#,70,73,74,78 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29026 |
BU6#,70,73,74,78 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29024 |
BU6#,70,73,74,78 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29026 |
BU6#,7# 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 90520-29027 |
BU6#,70,73,74,78 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36070 |
BU6#,7# |
8 | ||
| 37402-36070 |
BU6#,70,73,74,78 |
8 | ||
| 37402-36080 |
BU6#,7# WHITE PAINTED |
8 | ||
| 37402-36080 |
BU6#,70,73,74,78 WHITE PAINTED |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36070 |
BU6#,7# |
8 | ||
| 37402-36070 |
BU6#,70,73,74,78 |
8 | ||
| 37402-36080 |
BU6#,7# WHITE PAINTED |
8 | ||
| 37402-36080 |
BU6#,70,73,74,78 WHITE PAINTED |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-36070 |
BU6#,7# |
8 | ||
| 37402-36070 |
BU6#,70,73,74,78 |
8 | ||
| 37402-36080 |
BU6#,7# WHITE PAINTED |
8 | ||
| 37402-36080 |
BU6#,70,73,74,78 WHITE PAINTED |
8 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90179-08144 | ||||
| 91651-60825 | ||||
| 96451-00600 | ||||
(9905-0406)DCB..T5 ; (9905-0406)XZU412..T2,T3,T4; (9905-0406)BU410,BZU410,XZU410,4
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01164 | ||||
| 90031-01165 | ||||
| 90031-01177 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90032-01069 | ||||
| 90032-04005 | ||||
| 90032-04031 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-10028 | ||||
| 90170-12005 | ||||
| 90170-12018 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
