BU73-MDPDT4 (1990)
Toyota Dyna/Toyoace

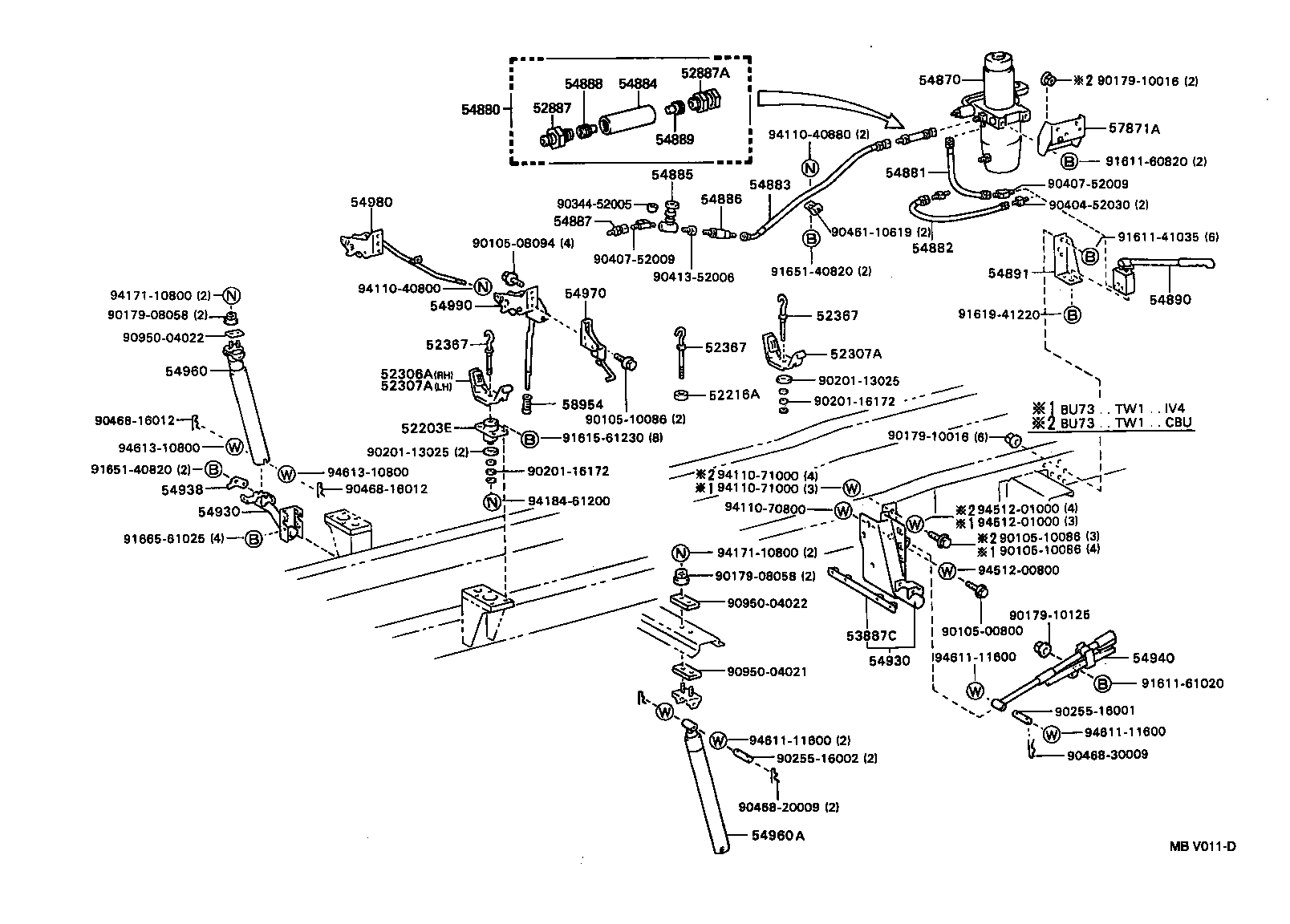

ILLUST NO. 2 OF 2(9005- )BU73..06S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-36050 |
BU73..06S |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-92601 |
BU73..06S |
2 | ||
| 52306A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1 | ||||
| 52306-36020 |
BU73;BU6#,72,74,78,8#,9#..03S |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36020 |
BU73..06S RR |
2 | ||
| 52307-36020 |
BU73;BU6#,72,74,78,8#,9#..03S |
1 | ||
| 52307A - BRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2 | ||||
| 52307-36020 |
BU73..06S RR |
2 | ||
| 52307-36020 |
BU73;BU6#,72,74,78,8#,9#..03S |
1 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-92600 |
BU73..06S CTR |
2 | ||
| 52367-36030 |
BU73;BU6#,72,74,78,8#,9#..03S |
2 | ||
| 52367-37030 |
BU73..06S RR |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-92600 |
BU73..06S CTR |
2 | ||
| 52367-36030 |
BU73;BU6#,72,74,78,8#,9#..03S |
2 | ||
| 52367-37030 |
BU73..06S RR |
2 | ||
| 52367 - HOOK, CAB REAR MOUNTING | ||||
| 52367-92600 |
BU73..06S CTR |
2 | ||
| 52367-36030 |
BU73;BU6#,72,74,78,8#,9#..03S |
2 | ||
| 52367-37030 |
BU73..06S RR |
2 | ||
| 52887 - UNION, TILT CAB CYLINDER | ||||
| 54887-92601 |
BU73..06S |
1 | ||
| 52887A - UNION, TILT CAB CYLINDER | ||||
| 54887-92602 |
BU73..06S |
1 | ||
| 53887C - PLATE, FRONT MUDGUARD | ||||
| 53887-92602 |
BU73..06S |
1 | ||
| 54870 - PUMP ASSY, TILT CAB | ||||
| 54870-92600 |
BU73 |
1 | ||
| 54870-37010 |
BU73 |
1 | ||
| 54870-37020 |
BU73..06S |
1 | ||
| 54880 - VALVE ASSY, TILT CAB PUMP | ||||
| 54880-92600 |
BU73..06S |
1 | ||
| 54881 - HOSE, TILT CAB PUMP PRESSURE | ||||
| 54881-37010 |
BU73..06S |
1 | ||
| 54881-92600 |
BU73 |
1 | ||
| 54882 - HOSE, TILT CAB PUMP RETURN | ||||
| 54882-92600 |
BU73..06S |
1 | ||
| 54883 - HOSE, TILT CAB PUMP | ||||
| 54883-37020 |
BU73..06S |
1 | ||
| 54883-92600 |
BU73 |
1 | ||
| 54883-37010 |
BU73 |
1 | ||
| 54884 - CASE, TILT CAB PUMP VALVE | ||||
| 54884-92600 |
BU73..06S |
1 | ||
| 54885 - VALVE, TILT CAB DOWN STOP | ||||
| 54885-92600 |
BU73..06S |
1 | ||
| 54886 - VALVE, TILT CAB DOWN SAFETY | ||||
| 54886-92600 |
BU73..06S |
1 | ||
| 54887 - UNION, TILT CAB CYLINDER | ||||
| 54887-92600 |
BU73..06S |
1 | ||
| 54888 - VALVE, TILT CAB PUMP, NO.1 | ||||
| 54888-92600 |
BU73..06S |
1 | ||
| 54889 - VALVE, TILT CAB PUMP, NO.2 | ||||
| 54889-92600 |
BU73..06S |
1 | ||
| 54890 - PUMP ASSY, TILT CAB HAND | ||||
| 54890-92600 |
BU73..06S |
1 | ||
| 54891 - BRACKET, TILT CAB HAND PUMP | ||||
| 54891-92600 |
BU73..06S |
1 | ||
| 54930 - BRACKET ASSY, TILT CAB COIL SPRING, LOWER | ||||
| 54930-92600 |
BU73..06S RR |
1 | ||
| 54930-95401 |
BU73;BU6#,72,74,83,84,87..03S |
1 | ||
| 54930 - BRACKET ASSY, TILT CAB COIL SPRING, LOWER | ||||
| 54930-92600 |
BU73..06S RR |
1 | ||
| 54930-95401 |
BU73;BU6#,72,74,83,84,87..03S |
1 | ||
| 54938 - PLATE, TILT CAB COIL SPRING SUPPORT | ||||
| 54938-95400 |
BU73;BU6#,72,74,78,8#,9#..03S |
2 | ||
| 54940 - STAY ASSY, TILT CAB | ||||
| 54940-92600 |
BU73..06S |
1 | ||
| 54960 - SPRING ASSY, TILT CAB COIL | ||||
| 54960-95408 |
BU73..06S FR |
1 | ||
| 54960A - CYLINDER ASSY, TILT CAB | ||||
| 54960-92600 |
BU73 |
1 | ||
| 54960-37010 |
BU73..06S |
1 | ||
| 54970 - LATCH ASSY, TILT CAB STOPPER | ||||
| 54970-92600 |
BU73..06S |
1 | ||
| 54980 - LOCK ASSY, TILT CAB MOUNTING, RH | ||||
| 54980-92600 |
BU73..06S |
1 | ||
| 54990 - LOCK ASSY, TILT CAB MOUNTING, LH | ||||
| 54990-92600 |
BU73..06S |
1 | ||
| 57871A - BRACKET, TILT CAB PUMP | ||||
| 54871-92600 |
BU73..06S |
1 | ||
| 58954 - COVER, REAR LOCK HANDLE GRIP | ||||
| 58954-95400 |
BU73;BU6#,72,74,78,8#,9#..03S |
1 | ||
| Common parts | ||||
| 90105-00800 | ||||
| 90105-08094 | ||||
| 90105-10086 | ||||
| 90179-08058 | ||||
| 90179-10016 | ||||
| 90179-10125 | ||||
| 90201-13025 | ||||
| 90201-16172 | ||||
| 90255-16001 | ||||
| 90255-16002 | ||||
| 90344-52005 | ||||
| 90404-52030 | ||||
| 90407-52009 | ||||
| 90413-52006 | ||||
| 90461-10619 | ||||
| 90468-16012 | ||||
| 90468-20009 | ||||
| 90468-30009 | ||||
| 90950-04021 | ||||
| 90950-04022 | ||||
| 91611-41035 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91615-61230 | ||||
| 91619-41220 | ||||
| 91651-40820 | ||||
| 91665-61025 | ||||
| 94110-40800 | ||||
| 94110-40880 | ||||
| 94110-70800 | ||||
| 94110-71000 | ||||
| 94171-10800 | ||||
| 94184-61200 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94611-11600 | ||||
| 94613-10800 | ||||
