BU73-MDPDT (1991)

Toyota Dyna/Toyoace

Production Sep 1991 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9109- )BU73..06S..CBU

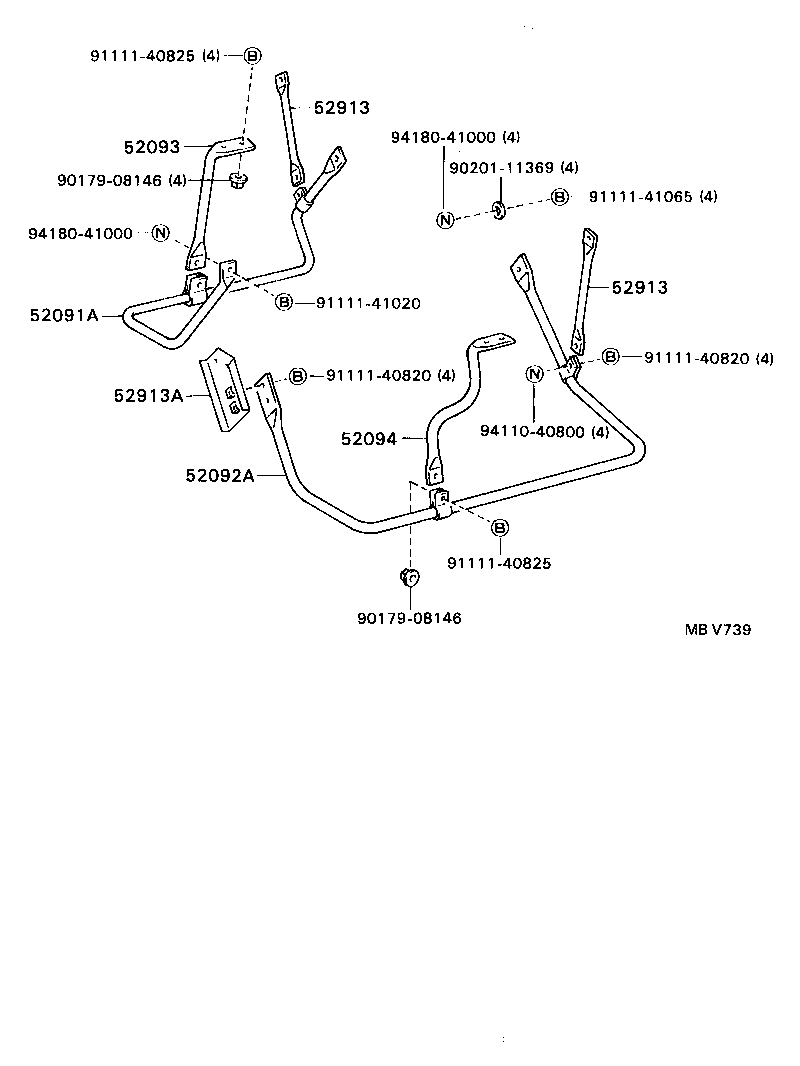

Click highlighted areas on diagram

diagram 52091A 52092A 52093 52094 52913 52913 52913A 9017908146 9017908146 9020111369 9111140820 9111140820 9111140825 9111140825 9111141020 9111141065 9411040800 9418041000 9418041000
Part # Description Qty Price
52091A - STAY SUB-ASSY, SIDE BUMPER, FRONT RH
52091-37010

BU73..06S..CBU

 1
52092A - STAY SUB-ASSY, SIDE BUMPER, FRONT LH
52092-37010

BU73..06S..CBU

 1
52093 - STAY SUB-ASSY, SIDE BUMPER, REAR RH
52913-37010

BU73..06S..CBU

 1
52094 - STAY SUB-ASSY, SIDE BUMPER, REAR LH
52913-37020

BU73..06S..CBU

 1
52913 - STAY, SIDE BUMPER, NO.1
52913-37030

BU73..06S..CBU

 2
52913 - STAY, SIDE BUMPER, NO.1
52913-37030

BU73..06S..CBU

 2
52913A - STAY, SIDE BUMPER, NO.1
52913-37040

BU73..06S..CBU

 1
Common parts
90179-08146
90201-11369
91111-40820
91111-40825
91111-41020
91111-41065
94110-40800
94180-41000
