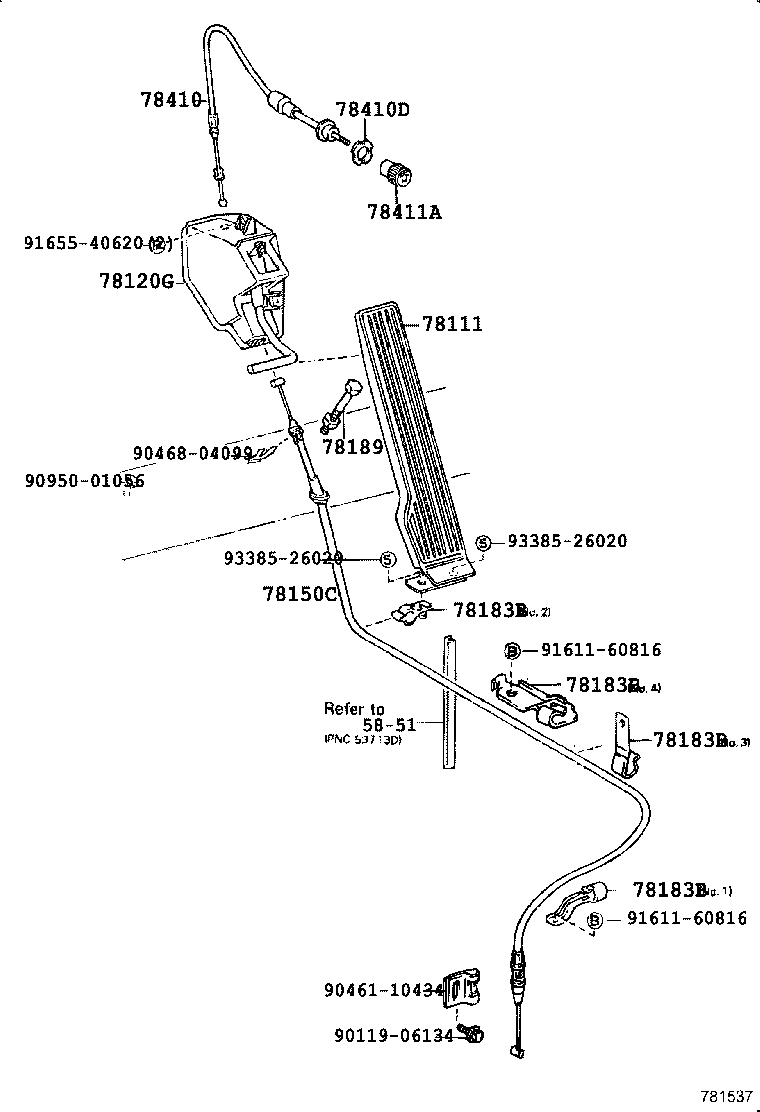

Toyota Dyna/toyoace BU72 ACCELERATOR LINK

Part #	Description	Period	Qty
78111 - PEDAL, ACCELERATOR
78110-95410	BU6#,7#,8#,9#	08/1988 - 03/1994	1
78120G - ROD ASSY, ACCELERATOR PEDAL
78202-95400	BU6#,70,72,73,74,83,84,87	08/1988 - 05/1995	1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-95484	BU72,73,74	10/1989 - 09/1991	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95408	BU72,73,74 NO.4	10/1989 - 08/1990	1
78183-95409	BU72,73,74 NO.3	10/1989 - 08/1990	1
78183-95407	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.1	08/1988 - 05/1995	1
78183-95406	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.2	08/1988 - 05/1995	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95408	BU72,73,74 NO.4	10/1989 - 08/1990	1
78183-95409	BU72,73,74 NO.3	10/1989 - 08/1990	1
78183-95407	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.1	08/1988 - 05/1995	1
78183-95406	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.2	08/1988 - 05/1995	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95408	BU72,73,74 NO.4	10/1989 - 08/1990	1
78183-95409	BU72,73,74 NO.3	10/1989 - 08/1990	1
78183-95407	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.1	08/1988 - 05/1995	1
78183-95406	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.2	08/1988 - 05/1995	1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95408	BU72,73,74 NO.4	10/1989 - 08/1990	1
78183-95409	BU72,73,74 NO.3	10/1989 - 08/1990	1
78183-95407	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.1	08/1988 - 05/1995	1
78183-95406	BU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL NO.2	08/1988 - 05/1995	1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95404	BU6#,70,72,73,74,83,84,87..DSL	08/1988 - 03/1994	1
78410D - NUT, THROTTLE
78314-95010	BU6#,7#,8#,9#	08/1988 - 03/1994	1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-22010	BU6#,7#,8#,9#	08/1988 - 03/1994	1
Common parts
90119-06134
90461-10434
90468-04099
90950-01056
91611-60816
91655-40620
93385-26020
Linked diagrams
5851

BU72H-MDDHTJ3 (1989)

(8910- )BU72,73,74
