BU72H-MDDHT3 (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - Oct 1992
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )BU72,73,74

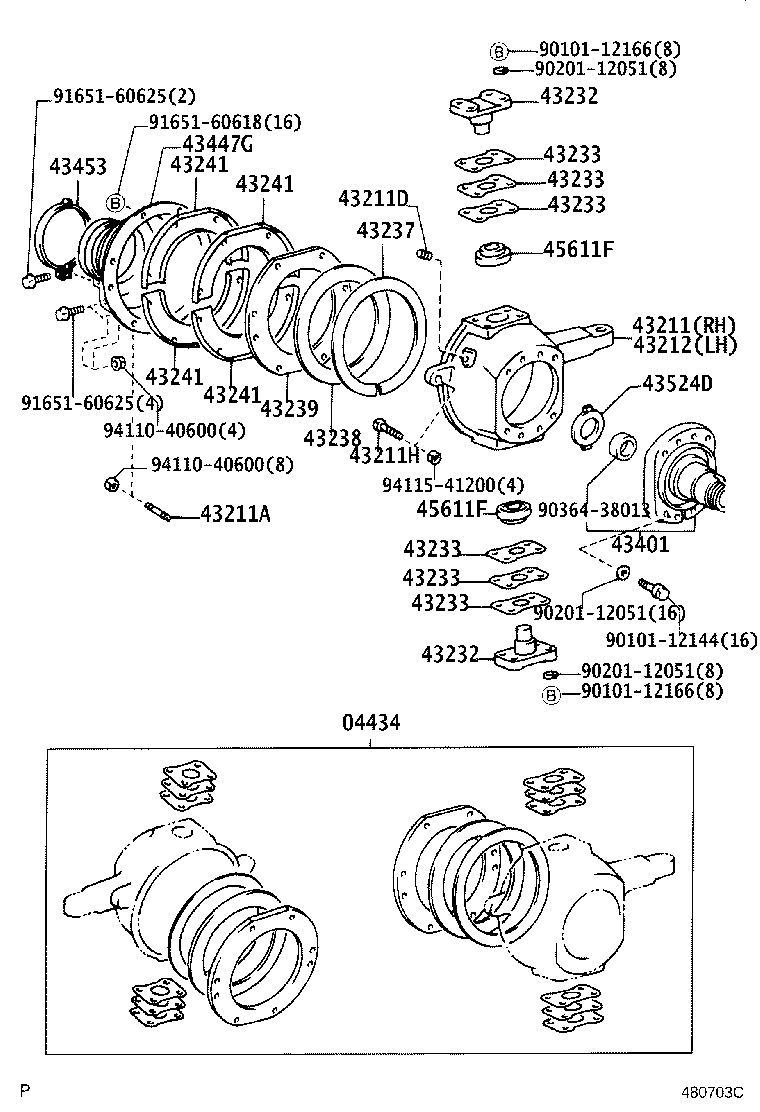

Click highlighted areas on diagram

diagram 04434 43211 43211A 43211D 43211H 43212 43232 43232 43233 43233 43233 43233 43233 43233 43237 43238 43239 43241 43241 43241 43241 43401 43447G 43453 43524D 45611F 45611F 9010112144 9010112166 9010112166 9020112051 9020112051 9020112051 9036438013 9165160618 9165160625 9165160625 9411040600 9411040600 9411541200
Part # Description Qty Price
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36030

BU72,73,74

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36030

BU72,73,74

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36030

BU72,73,74

内側

 4
43241 - COVER, STEERING KUNCKLE OIL SEAL
43241-36030

BU72,73,74

内側

 4
43447G - BOOT, STEERING KUCKLE
43447-36020

BU72,73,74

 2
43447-36010

BU72,73,74

 2
Common parts
90101-12144
90101-12166
90201-12051
90364-38013
91651-60618
91651-60625
94110-40600
94115-41200
