BU72H-MDDHT (1989)

Toyota Dyna/Toyoace

Production Oct 1989 - Oct 1992
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8910- )BU72,73,74

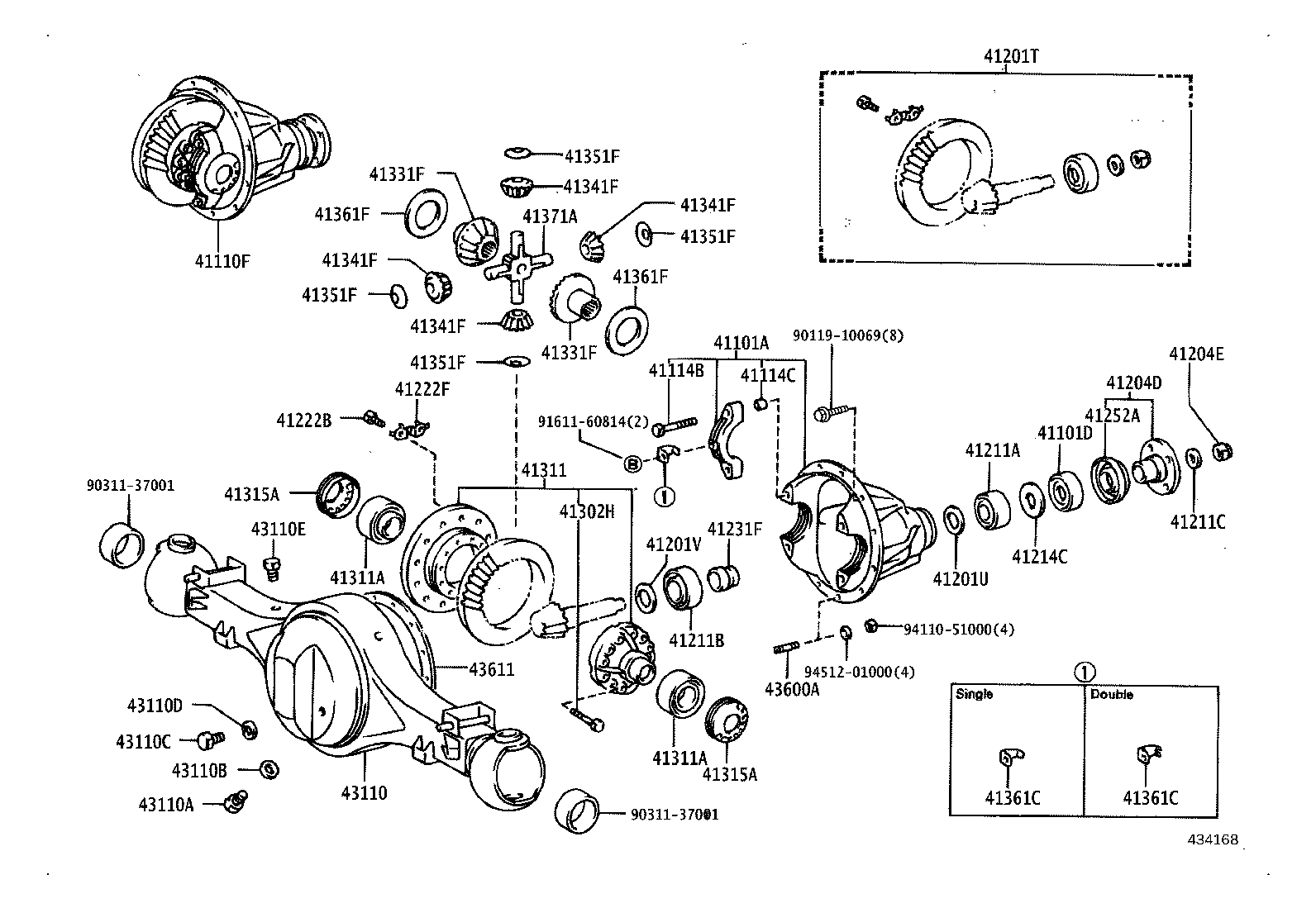

Click highlighted areas on diagram

diagram 41101A 41101D 41110F 41114B 41114C 41201T 41201U 41201V 41204D 41204E 41211A 41211B 41211C 41214C 41222B 41222F 41231F 41252A 41302H 41311 41311A 41311A 41315A 41315A 41331F 41331F 41341F 41341F 41341F 41341F 41351F 41351F 41351F 41351F 41361C 41361C 41361F 41361F 41371A 43110 43110A 43110B 43110C 43110D 43110E 43600A 43611 9011910069 9031137001 9031137001 9161160814 9411051000 9451201000
Part # Description Qty Price
41201U - SHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
90564-35019

BU72,73,74

厚さ=1.80

 1
90564-35020

BU72,73,74

厚さ=1.82,T=1.82

 1
90564-35023

BU72,73,74

厚さ=1.88,T=1.88

 1
90564-35025

BU72,73,74

厚さ=2.00,T=2.00

 1
90564-35027

BU72,73,74

厚さ=2.20,T=2.20

 1
90564-35024

BU72,73,74

厚さ=1.90,T=1.90

 1
90564-35026

BU72,73,74

厚さ=2.10,T=2.10

 1
90564-35030

BU72,73,74

厚さ=2.50,T=2.50

 1
90564-35022

BU72,73,74

厚さ=1.86,T=1.86

 1
90564-35028

BU72,73,74

厚さ=2.30,T=2.30

 1
90564-35032

BU72,73,74

厚さ=2.70,T=2.70

 1
90564-35036

BU72,73,74

厚さ=1.81,T=1.81

 1
90564-35035

BU72,73,74

厚さ=3.00,T=3.00

 1
90564-35031

BU72,73,74

厚さ=2.60,T=2.60

 1
90564-35034

BU72,73,74

厚さ=2.90,T=2.90

 1
90564-35039

BU72,73,74

厚さ=1.87,T=1.87

 1
90564-35033

BU72,73,74

厚さ=2.80,T=2.80

 1
90564-35029

BU72,73,74

厚さ=2.40,T=2.40

 1
90564-35037

BU72,73,74

厚さ=1.83,T=1.83

 1
90564-35021

BU72,73,74

厚さ=1.84,T=1.84

 1
90564-35040

BU72,73,74

厚さ=1.89,T=1.89

 1
90564-35038

BU72,73,74

厚さ=1.85,T=1.85

 1
41204D - FLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204-36050

BU72,73,74

 1
41204E - NUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
90179-22003

BU72,73,74

 1
41214C - SLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41214-36030

BU72,73,74

 1
41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41231-36040

BU72,73,74

 1
41252A - DEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41252-36010

BU72,73,74

 1
43110 - HOUSING ASSY, FRONT AXLE
43110-36040

BU72,73,74

 1
43110-36060

BU72,73,74

 1
43611 - GASKET, FRONT AXLE DIFFERENTIAL CARRIER
42181-36030

BU72,73,74

 1
Common parts
90119-10069
90311-37001
91611-60814
94110-51000
94512-01000
