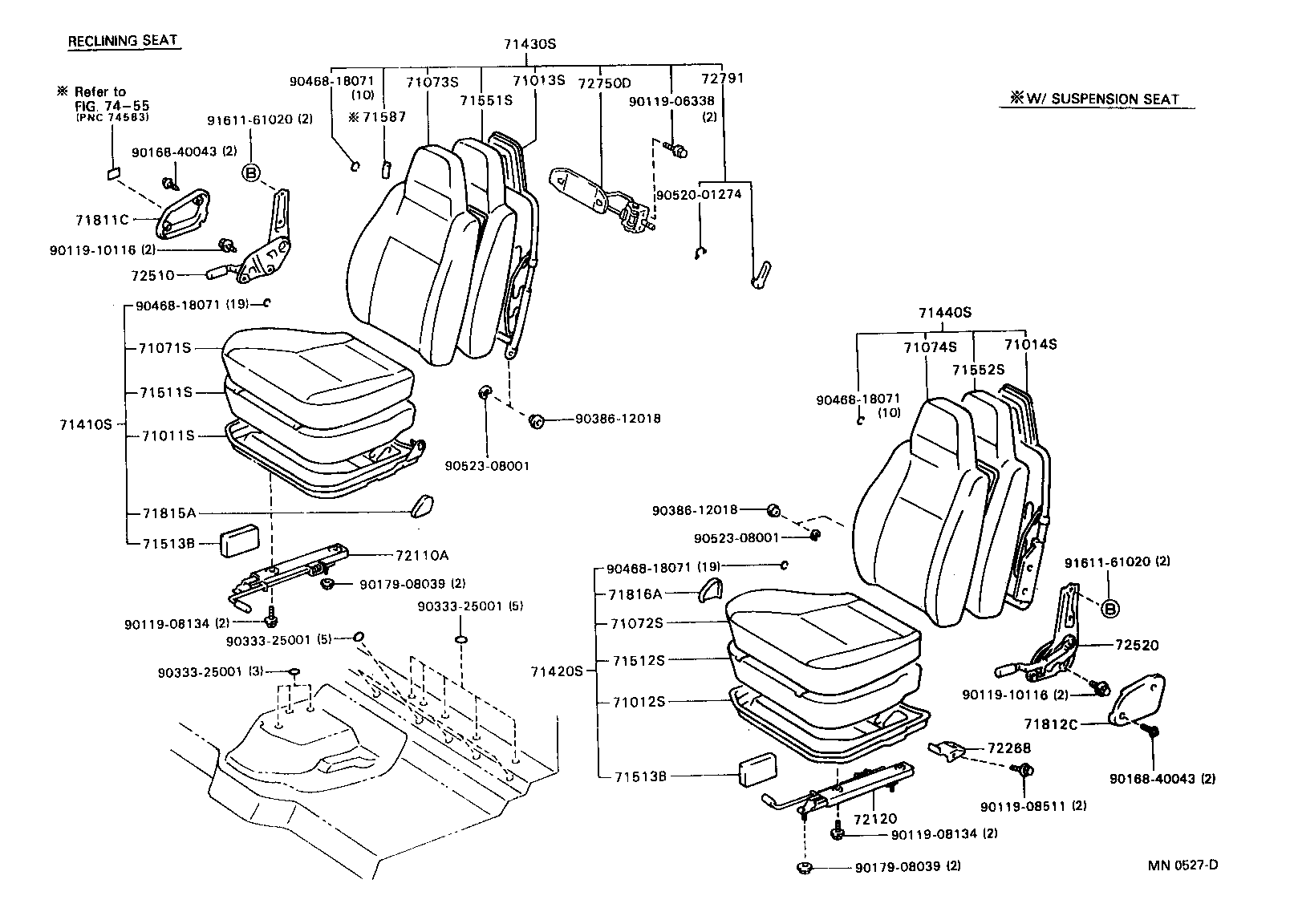

Toyota Dyna/toyoace BU72 SEAT & SEAT TRACK

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95419	BU72,73,74	10/1989 - 05/1995	1
71011-95420	BU72,73,74..CBU,IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	10/1989 - 05/1995	1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95416	BU72,73,74	10/1989 - 05/1995	1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-95418	BU72,74 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	10/1989 - 09/1991	1
71013-37040	BU72,73,74	09/1991 - 05/1995	1
71013-95417	BU72,73,74	10/1989 - 09/1991	1
71013-37020	BU72,73,74..CBU,IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	09/1991 - 05/1995	1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-95425	BU72,73,74	10/1989 - 05/1995	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-95B1604	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71071-95B1804	BU72,74..TOY ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71071-37130B1	BU72,73,74..CBU,IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71071-37120B1	BU72,73,74..03S GRAY,TRIM1#	09/1991 - 05/1995	1
71071-37140D1	BU72,73,74..03S ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71071-95B1904	BU72,74..TOY ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-95B5704	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71072-95B5804	BU72,74..TOY ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71072-37200D1	BU72,73,74..03S (ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽ,RED,TRIM1#	09/1991 - 05/1995	1
71072-37190B2	BU72,73,74..03S GRAY,TRIM1#	09/1991 - 05/1995	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-95B1104	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71073-95B1404	BU72,74..TOY ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71073-37140B1	BU72,73,74..03S GRAY,TRIM1#	09/1991 - 05/1995	1
71073-37160D0	BU72,73,74..03S ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71073-95B1304	BU72,74..TOY ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71073-37150B1	BU72,73,74..03S ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-95B7604	BU72,74..TOY ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71074-37210B1	BU72,73,74..03S GRAY,TRIM1#	09/1991 - 05/1995	1
71074-37220D0	BU72,73,74..03S (ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71074-95B7504	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95B0604	BU72,74..TOY **,ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71410-95B0304	BU72,74..TOY ***,BLUE,TRIM8#	10/1989 - 09/1991	1
71410-37140B0	BU72,73,74..03S ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71410-95B0504	BU72,74..TOY ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71410-37160D0	BU72,73,74..03S **,ｶｽﾀﾑ B-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71410-37150B0	BU72,73,74..CBU,IV3 ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-95B4504	BU72,74..TOY **,ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71420-95B4404	BU72,74..TOY ***,BLUE,TRIM8#	10/1989 - 09/1991	1
71420-37210D0	BU72,73,74..03S **,(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ B-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71420-37200B0	BU72,73,74..03S ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37150B0	BU72,73,74..03S ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),GRAY,TRIM1#	09/1991 - 05/1995	1
71430-95B0004	BU72,74..TOY **,ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71430-9548904	BU72,74..TOY ***,ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71430-37140B0	BU72,73,74..03S ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71430-9548704	BU72,74..TOY ***,BLUE,TRIM8#	10/1989 - 09/1991	1
71430-37160D0	BU72,73,74..03S **,ｶｽﾀﾑ B-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-95B5804	BU72,74..TOY **,ｶｽﾀﾑ-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),BLUE,TRIM8#	10/1989 - 09/1991	1
71440-95B5704	BU72,74..TOY ***,BLUE,TRIM8#	10/1989 - 09/1991	1
71440-37240D0	BU72,73,74..03S **,(ｶﾝﾚｲﾁｼﾖｳ OR ﾕｷｸﾞﾆｼﾖｳ) & ｶｽﾀﾑ B-99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ);ｶｽﾀﾑ B-*99 & ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ),RED,TRIM1#	09/1991 - 05/1995	1
71440-37230B0	BU72,73,74..03S ***,GRAY,TRIM1#	09/1991 - 05/1995	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95406	BU72,73,74	10/1989 - 05/1995	1
71511-95407	BU72,73,74..CBU,IV3 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	10/1989 - 05/1995	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-95406	BU72,73,74	10/1989 - 05/1995	1
71513B - PAD, FRONT SEAT CUSHION, B
71513-95400	BU72,73,74..03S ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ & ﾗﾝﾊﾞｻﾎﾟ-ﾄ)	09/1991 - 05/1995	1
71513-95400	BU72,73,74	10/1989 - 05/1995	2
71513-95400	BU72,74 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	10/1989 - 09/1991	1
71513B - PAD, FRONT SEAT CUSHION, B
71513-95400	BU72,73,74..03S ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ & ﾗﾝﾊﾞｻﾎﾟ-ﾄ)	09/1991 - 05/1995	1
71513-95400	BU72,73,74	10/1989 - 05/1995	2
71513-95400	BU72,74 ｱﾘ(ｻｽﾍﾟﾝｼﾖﾝｼ-ﾄ)	10/1989 - 09/1991	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37030	BU72,73,74	09/1991 - 05/1995	1
71551-95J03	BU72,73,74	10/1989 - 09/1991	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-95J03	BU72,73,74	10/1989 - 05/1995	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00	BU6#,7#,8#,9#..CBU,IV3	09/1991 - 05/1995	2
71587-95J00	BU60,66,87..TOY..06S;BU70,72,74,78,85,88,9#	08/1988 - 09/1991	2
71811C - COVER, RECLINING ADJUSTER, RH
71811-95J01B0	BU6#,7#,8#,9# GRAY,TRIM1#	09/1991 - 05/1995	1
71811-95J0114	BU6#,72,74,78,8#,9#..TOY BLUE,TRIM8#	08/1988 - 09/1991	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-9540004	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71812-95400B0	BU72,73,74 GRAY,TRIM1#	09/1991 - 05/1995	1
71815A - COVER, FRONT SEAT CUSHION HINGE, RH
71815-95J0014	BU6#,72,74,78,8#,9#..TOY BLUE,TRIM8#	08/1988 - 09/1991	1
71815-95J00B0	BU6#,7#,8#,9# GRAY,TRIM1#	09/1991 - 05/1995	1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J0014	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
71816-95J00B0	BU72,73,74 GRAY,TRIM1#	09/1991 - 05/1995	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-95408	BU6#,7#,8#,9#	08/1988 - 05/1995	1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37010	BU72,73,74	10/1989 - 05/1995	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95J0014	BU6#,72,74,78,8#,9#..TOY BLUE,TRIM8#	08/1988 - 09/1991	1
72510-95J0011	BU6#,7#,8#,9# GRAY,TRIM1#	09/1991 - 05/1995	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-9540304	BU72,74..TOY BLUE,TRIM8#	10/1989 - 09/1991	1
72520-95403B0	BU72,73,74 GRAY,TRIM1#	09/1991 - 05/1995	1
72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH
72750-37020	BU72,73,74	09/1991 - 05/1995	1
72791 - LEVER, LUMBAR SUPPORT
72791-20030B0	BU6#,7#,8#,9# GRAY,TRIM1#	09/1991 - 05/1995	1
Common parts
90119-06338
90119-08134
90119-08511
90119-10116
90168-40043
90179-08039
90333-25001
90386-12018
90468-18071
90520-01274
90523-08001
91611-61020
Linked diagrams
7455

BU72DH-MDSTJ3 (1989)

(9109- )BU72,73,74
