BU72DH-MDST3 (1989)
Toyota Dyna/Toyoace

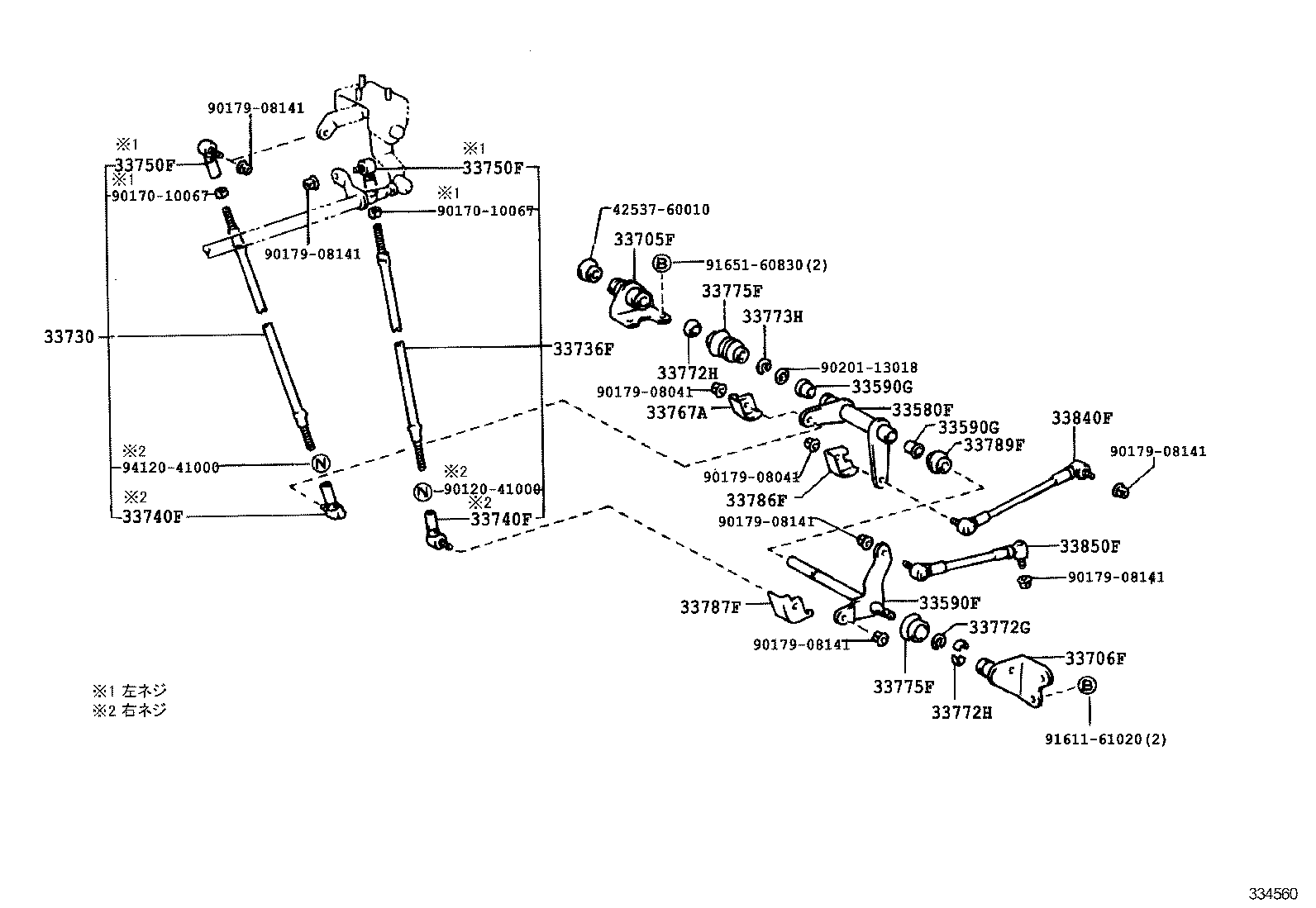

ILLUST NO. 2 OF 2(8910- )BU72,73,74..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT) | ||||
| 33580-36050 |
BU72,73,74..03S |
1 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-36080 |
BU72,73,74..03S |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-36340 |
BU72,73,74..03S |
1 | ||
| 33706F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33706-36110 |
BU72,73,74..03S |
1 | ||
| 33730 - ROD ASSY, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33730-36280 |
BU72,73,74..03S |
1 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33790-36530 |
BU72,73,74..03S |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU73..03S;BU88..5F..DSL;BU90..TOY..T3..IV3;BU6#,70,72,74,83,84,87,91,94..5F NO.1 & NO.2 |
2 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-36050 |
BU73..03S;BU88..5F..DSL;BU90..TOY..T3..IV3;BU6#,70,72,74,83,84,87,91,94..5F NO.1 & NO.2 |
2 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
BU70,72,74,78,83,84,85,90,91,94,95 |
2 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-36030 |
BU70,72,74,78,83,84,85,90,91,94,95 |
2 | ||
| 33767A - INSULATOR, CONNECTING ROD HEAT (FOR FLOOR SHIFT) | ||||
| 33767-36010 |
BU88..5F;BU72,73,74,78,85,9#..5F..03S |
1 | ||
| 33772G - RING, SNAP (FOR CROSS SAFT SUPPORT BUSH) | ||||
| 96151-01600 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
BU72,73,74..03S 左側 |
1 | ||
| 33772-36010 |
BU72,73,74..03S 右側 |
1 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
BU72,73,74..03S 左側 |
1 | ||
| 33772-36010 |
BU72,73,74..03S 右側 |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 90520-12256 |
BU73..03S;BU6#,70,72,74,83,84,87..5F |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU73..03S;BU6#,70,72,74,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F CROSS SHAFT NO.2,LH |
1 | ||
| 33775-36010 |
BU73..03S;BU6#,70,72,74,83,84,87..5F CROSS SHAFT NO.2,RH |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-36020 |
BU66..IV4;BU72,73,74..03S |
1 | ||
| 33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3 | ||||
| 33787-36010 |
BU6#,70,72,73,74,83,84,87..5F |
1 | ||
| 33789F - COVER, CROSS SHAFT DUST, NO.1(FOR FLOOR SHIFT) | ||||
| 33789-36020 |
BU73..03S;BU6#,70,72,74,83,84,87..5F |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-36320 |
BU73..03S;BU6#,70,72,74,83,84,87..5F..(CBU,IV3) |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-36260 |
BU68,72,73,74..03S |
1 | ||
| Common parts | ||||
| 42537-60010 | ||||
| 90120-41000 | ||||
| 90170-10067 | ||||
| 90179-08041 | ||||
| 90179-08141 | ||||
| 90201-13018 | ||||
| 91611-61020 | ||||
| 91651-60830 | ||||
| 94120-41000 | ||||

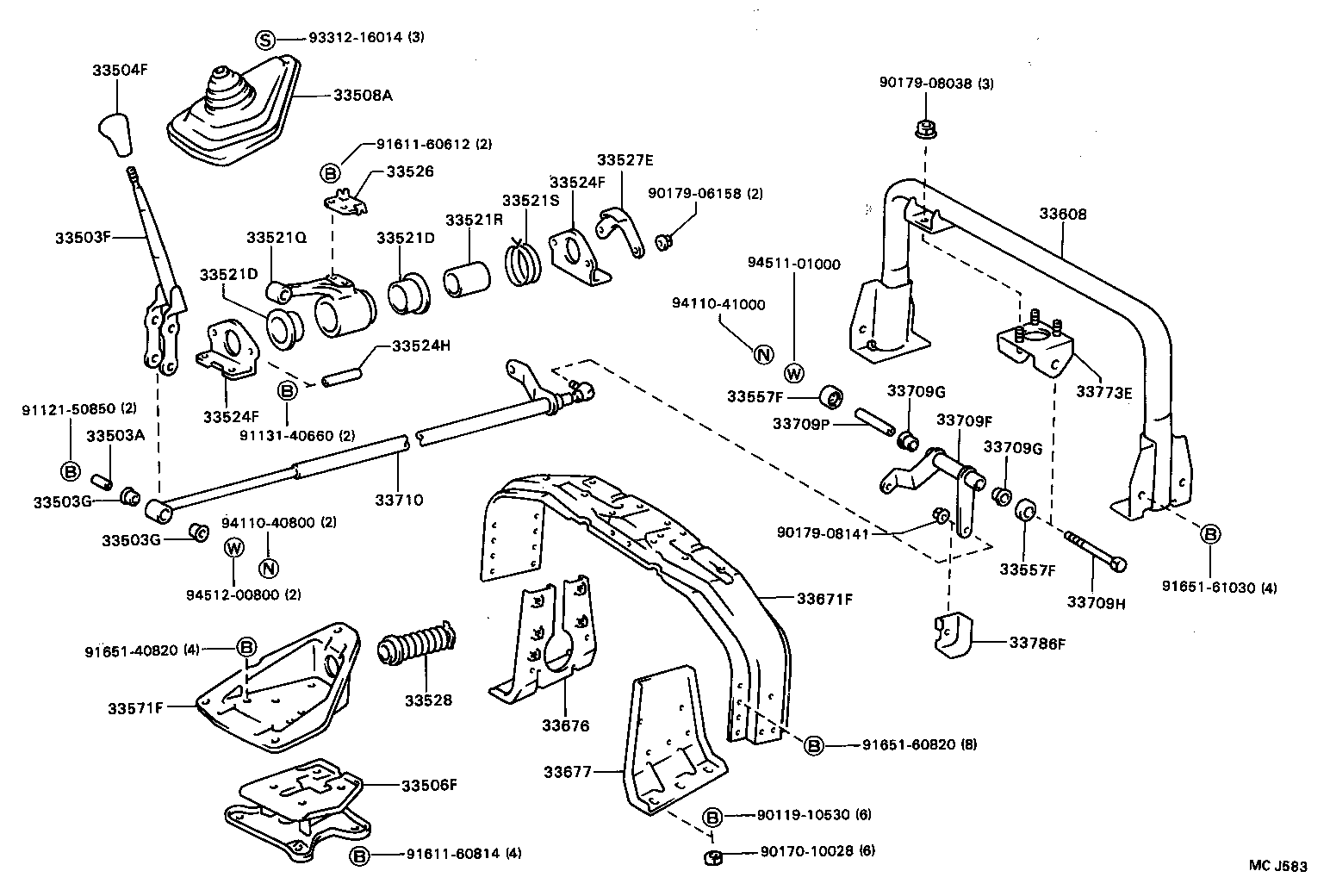

ILLUST NO. 1 OF 2(8910- )BU72,73,74..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503A - COLLAR(FOR SHIFT LEVER) | ||||
| 90387-08009 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 90387-08065 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-36011 |
BU72,73,74..03S |
1 | ||
| 33055-36010 |
BU72,73,74..03S |
1 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
4 | ||
| 33503G - BUSH(FOR SHIFT LEVER) | ||||
| 90389-11006 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
4 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-3605006 |
BU66..DYN..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..DYN..5F BROWN,TRIM4# |
1 | ||
| 33504-36051B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33504-36050B0 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-36030 |
BU72,73,74..03S |
1 | ||
| 33508A - BOOT SUB-ASSY, DUST (FOR FLOOR 3HIFT) | ||||
| 33508-36050 |
BU72,73,74 |
1 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33521D - BUSH (FOR SHIFT LEVER HOUSING) | ||||
| 90389-38004 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-36050 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521-36051 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521R - COLLAR (FOR SHIFT LEVER HOUSING) | ||||
| 90387-34001 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33521S - SPRING (FOR SHIFT LEVER HOUSING) | ||||
| 90508-26063 |
BU73..03S;BU6#,70,72,74,83,84,87..5F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-36030 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33524H - COLLER (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) | ||||
| 90387-06026 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33526 - PLATE, SHIFT LEVER SUPPORT, NO.1 | ||||
| 33526-36020 |
BU72,73,74..03S |
1 | ||
| 33527E - PLATE, SHIFT LEVER SUPPORT, NO.2 | ||||
| 33527-36130 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33528 - COVER, CONTROL SHAFT | ||||
| 33528-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-36020 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33571F - BRACKET, CONTROL SHAFT, LOWER NO.2 | ||||
| 33571-36090 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-36051 |
BU72,73,74..03S |
1 | ||
| 33608-36050 |
BU72,74 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33671-36090 |
BU60,66,87..DM5,T4;BU61,72,73,74,83,84..(DM3,DM4,DM5,T3,T4,TW1)..WT |
1 | ||
| 33676 - SUPPORT, CONTROL ROD MEMBER, RH (FOR FLOOR SHIFT) | ||||
| 33676-36011 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 33677 - SUPPORT, CONTROL ROD MEMBER, LH (FOR FLOOR SHIFT) | ||||
| 33677-36010 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 33709F - SHAFT SUB-ASSY, CROSS, NO.1 (FOR FLOOR SHIFT) | ||||
| 33709-36340 |
BU72,73,74..03S |
1 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33709G - BUSH (FOR CROSS SHAFT, NO.1 | ||||
| 90386-13007 |
BU73..03S;BU6#,70,72,74,78,8#,9#..5F |
2 | ||
| 33709H - BOLT, HEXAGON (FOR CROSS SHAFT) | ||||
| 90101-10279 |
BU73..03S;BU6#,70,72,74,83,84,87..5F |
1 | ||
| 33709P - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-10002 |
BU73..03S;BU6#,70,72,74,83,84,87..5F |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-36251 |
BU72,73,74..03S |
1 | ||
| 33710-36250 |
BU72,73,74..03S |
1 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-36130 |
BU72,73,74..03S |
1 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33786-36020 |
BU66..IV4;BU72,73,74..03S |
1 | ||
| Common parts | ||||
| 90119-10530 | ||||
| 90170-10028 | ||||
| 90179-06158 | ||||
| 90179-08038 | ||||
| 90179-08141 | ||||
| 91121-50850 | ||||
| 91131-40660 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91651-40820 | ||||
| 91651-60820 | ||||
| 91651-61030 | ||||
| 93312-16014 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
