BU72DH-MDMT (1991)
Toyota Dyna/Toyoace
Production
Sep 1991
-
May 1995
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9109- )DM3

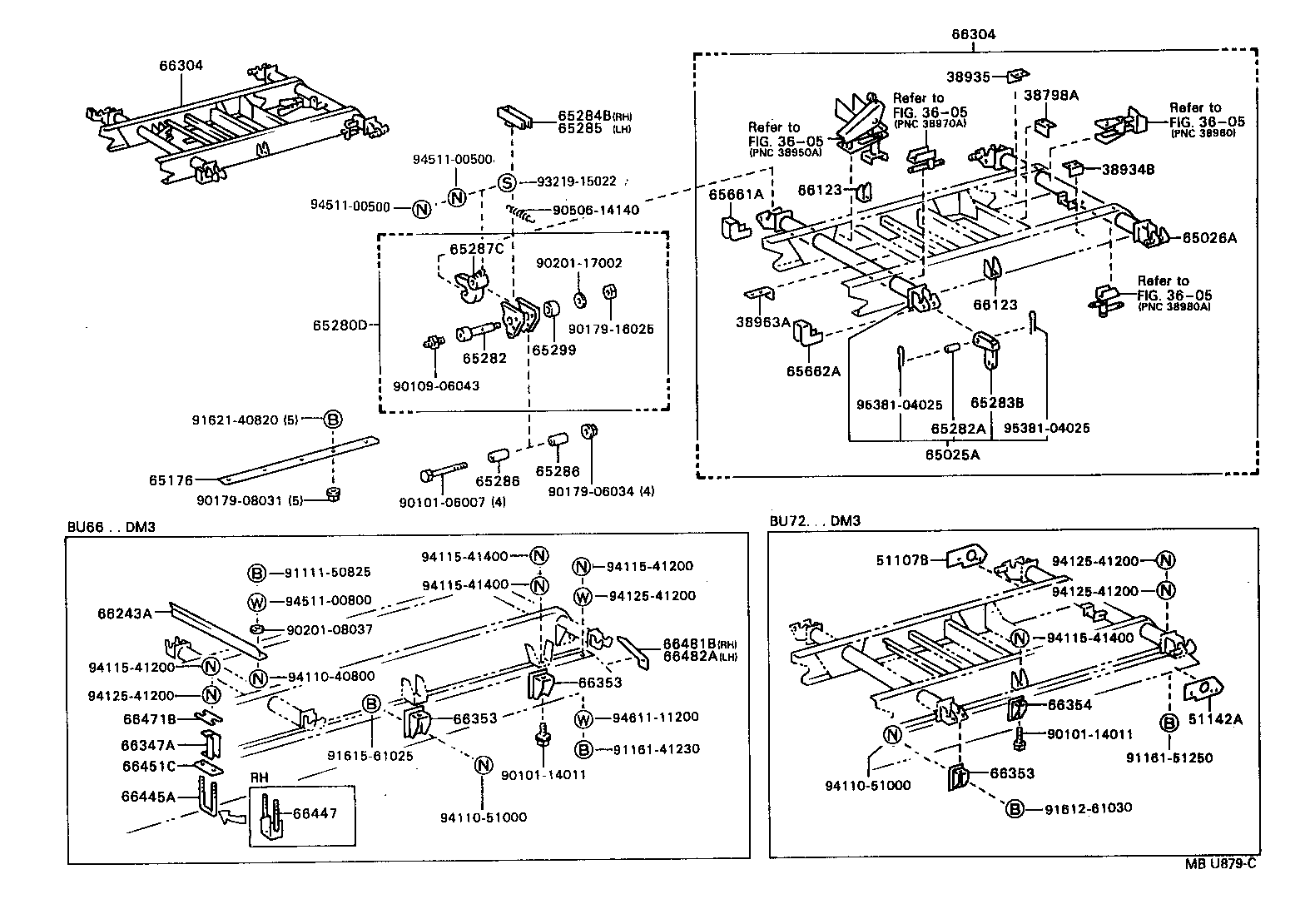

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38798A - BRACKET, U BOLT SUPPORT | ||||
| 38798-93310 |
BU66,72..DM3 |
1 | ||
| 38934B - STAY, VALVE CONTROL LEVER BRACKET | ||||
| 38934-93301 |
BU66,72..DM3 |
1 | ||
| 38935 - STAY, VALVE CONTROL LEVER BRACKET, NO.2 | ||||
| 38935-93300 |
BU66,72..DM3 |
1 | ||
| 38963A - BRACKET, CABLE CLAMP, NO.8 | ||||
| 38963-93303 |
BU66,72..DM3 |
1 | ||
| 51107B - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-93300 |
BU72..DM3 |
1 | ||
| 51142A - REINFORCEMENT, SIDE RAIL, LH | ||||
| 51142-93300 |
BU72..DM3 |
1 | ||
| 65025A - HINGE SUB-ASSY, VESSEL, FRONT | ||||
| 65025-93300 |
BU66,72..DM3 |
1 | ||
| 65026A - HINGE SUB-ASSY, VESSEL | ||||
| 65026-93301 |
BU66,72..DM3 |
1 | ||
| 65280D - HINGE SUB-ASSY, VESSEL, FRONT | ||||
| 65280-93301 |
BU66,72..DM3 右側 |
2 | ||
| 65290-93301 |
BU66,72..DM3 左側 |
2 | ||
| 65282 - SHAFT, BEZEL HINGE | ||||
| 65282-93301 |
BU66,72..DM3 |
4 | ||
| 65282A - SHAFT, VESSEL HINGE STOPPER | ||||
| 65282-93300 |
BU66,72..DM3 |
4 | ||
| 65283B - STOPPER, VESSEL HINGE HOOK | ||||
| 65283-93304 |
BU66,72..DM3 |
4 | ||
| 65284B - SUPPOTER, HINGE BRACKET, REAR | ||||
| 65284-93303 |
BU66,72..DM3 |
4 | ||
| 65284-93304 |
BU66,72..DM3 |
4 | ||
| 65285 - GUSSET, VESSEL HINGE, NO.2 | ||||
| 65285-93300 |
BU66,72..DM3 |
4 | ||
| 65286 - PIPE, VESSEL HINGE SHAFT | ||||
| 65286-93300 |
BU66,72..DM3 |
8 | ||
| 65286 - PIPE, VESSEL HINGE SHAFT | ||||
| 65286-93300 |
BU66,72..DM3 |
8 | ||
| 65287C - HOOK, VESSEL HINGE | ||||
| 65287-93302 |
BU66,72..DM3 |
4 | ||
| 65299 - COLLAR, VESSEL HINGE | ||||
| 65299-93300 |
BU66,72..DM3 |
4 | ||
| 65661A - GUIDE, ROLLER, RH | ||||
| 65661-93301 |
BU66,72..DM3 |
1 | ||
| 65662A - GUIDE, ROLLER, LH | ||||
| 65662-93301 |
BU66,72..DM3 |
1 | ||
| 66123 - BRACKET, SUB-FRAME MOUNTING | ||||
| 66123-93300 |
BU72..DM3 |
6 | ||
| 66123 - BRACKET, SUB-FRAME MOUNTING | ||||
| 66123-93300 |
BU72..DM3 |
6 | ||
| 66304 - FRAME SUB-ASSY, SUB | ||||
| 66304-93306 |
BU72..DM3 |
1 | ||
| 66304 - FRAME SUB-ASSY, SUB | ||||
| 66304-93306 |
BU72..DM3 |
1 | ||
| 66353 - BRACKET, SUB FRAME | ||||
| 66353-93301 |
BU72..DM3 |
2 | ||
| 66353 - BRACKET, SUB FRAME | ||||
| 66353-93301 |
BU72..DM3 |
2 | ||
| 66353 - BRACKET, SUB FRAME | ||||
| 66353-93301 |
BU72..DM3 |
2 | ||
| 66354 - BRACKET, SUB FRAME ANCHOR, LH | ||||
| 66354-93300 |
BU72..DM3 |
4 | ||
| Common parts | ||||
| 90101-06007 | ||||
| 90101-14011 | ||||
| 90109-06043 | ||||
| 90179-06034 | ||||
| 90179-08031 | ||||
| 90179-16025 | ||||
| 90201-08037 | ||||
| 90201-17002 | ||||
| 90506-14140 | ||||
| 91111-50825 | ||||
| 91161-41230 | ||||
| 91161-51250 | ||||
| 91612-61030 | ||||
| 91615-61025 | ||||
| 91621-40820 | ||||
| 93219-15022 | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
| 94115-41200 | ||||
| 94115-41400 | ||||
| 94125-41200 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94611-11200 | ||||
| 95381-04025 | ||||
| Linked diagrams | ||||
| 3605 | ||||
