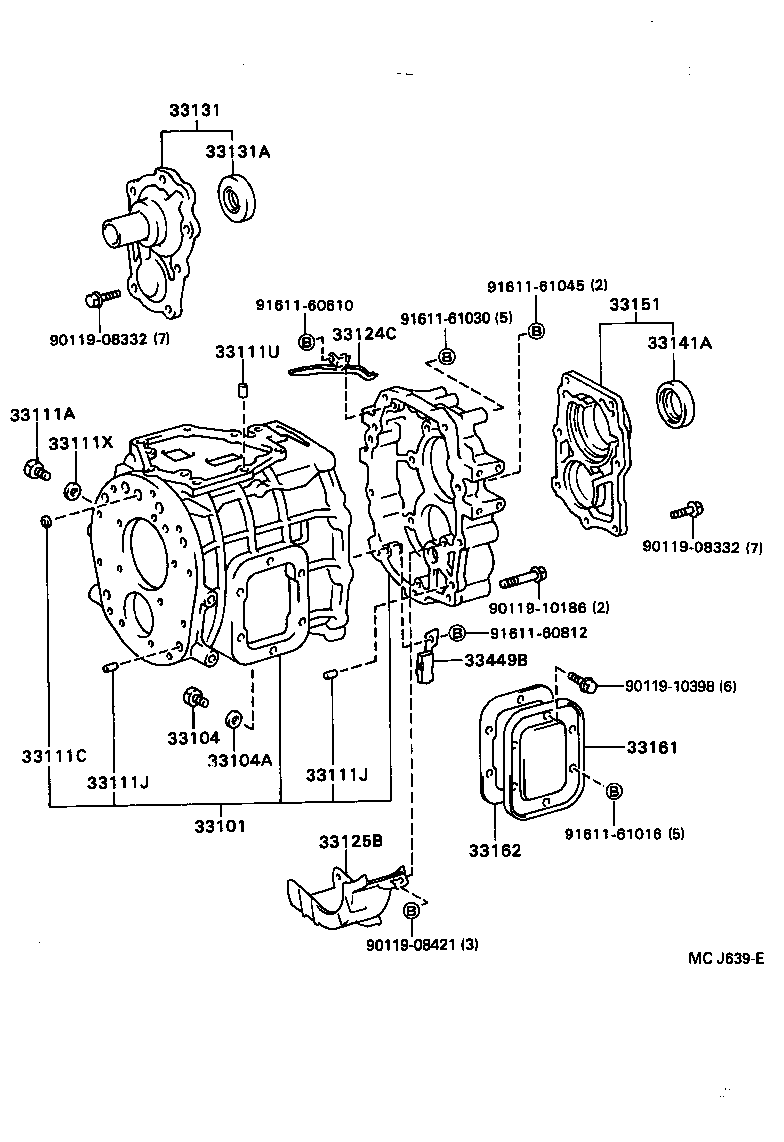

BU72D-MDNTJ (1989)
Toyota Dyna/Toyoace
(8910- )BU72,73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-36271 |
BU72,73,74..CBU,IV3 |
1 | ||
| 31111-36270 |
BU72,73,74..CBU,IV3 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36070 |
BU72,73,74 UPR,RH |
1 | ||
| 31121-36040 |
BU72,73,74,78,88,9#..5F 下側 |
1 | ||
| 31121-36080 |
BU72,73,74 UPR,LH |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36070 |
BU72,73,74 UPR,RH |
1 | ||
| 31121-36040 |
BU72,73,74,78,88,9#..5F 下側 |
1 | ||
| 31121-36080 |
BU72,73,74 UPR,LH |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-36070 |
BU72,73,74 UPR,RH |
1 | ||
| 31121-36040 |
BU72,73,74,78,88,9#..5F 下側 |
1 | ||
| 31121-36080 |
BU72,73,74 UPR,LH |
1 | ||
| 31121B - COVER, CLUTCH HOUSING, NO.3 | ||||
| 31121-36090 |
BU72,73,74..CBU,IV3 |
2 | ||
| 31121B - COVER, CLUTCH HOUSING, NO.3 | ||||
| 31121-36090 |
BU72,73,74..CBU,IV3 |
2 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-36040 |
BU72,73,74 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-36041 |
BU6#,7#,84,87,88,9#..5F..(03S,06S)..(DSL,TD) |
1 | ||
| 33119-36041 |
BU6#,7#,8#,9#..5F |
1 | ||
| Common parts | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
| 91612-61040 | ||||
| 91612-61045 | ||||
| 91619-61235 | ||||
| 91619-61250 | ||||
(8910- )BU72,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-36071 |
BU72,73,74 |
1 | ||
| 33101-36102 |
BU72,73,74 |
1 | ||
| 33101-36070 |
BU72,74 |
1 | ||
| 33101-36101 |
BU72,73,74..CBU,IV3 |
1 | ||
| 33101-36100 |
BU72,73,74..CBU,IV3 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 90341-18006 |
BU61,67,68,7#,8#,9#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 90430-18008 |
BU61,68,7#,83,84,91,94 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
BU61,68,7#,83,84,91,94 |
1 | ||
| 90341-18006 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-11600 |
BU61,67,68,7#,8#,9#..5F |
3 | ||
| 96411-11600 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 90250-12002 |
BU72,73,74 長さ=16,外径=12 |
2 | ||
| 90250-12002 |
BU72,73,74 長さ=16,外径=12 |
6 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12146 |
BU6#,7#,8#,9#..5F 長さ=17,外径=12 |
2 | ||
| 90250-12002 |
BU72,73,74 長さ=16,外径=12 |
2 | ||
| 90250-12002 |
BU72,73,74 長さ=16,外径=12 |
6 | ||
| 90250-12216 |
BU6#,7#,8#,9#..5F 長さ=14,外径=12 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F 長さ=11,外径=11 |
1 | ||
| 90253-11001 |
BU61,67,68,7#,8#,9#..5F 長さ=11,外径=11 |
1 | ||
| 90253-13017 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F 長さ=12,外径=13 |
2 | ||
| 90253-13017 |
BU61,67,68,7#,8#,9#..5F 長さ=12,外径=13 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
BU6#,7#,8#,9#..5F |
1 | ||
| 90430-18008 |
BU61,68,7#,83,84,91,94 |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-36040 |
BU72,73,74 |
1 | ||
| 33125B - RECEIVER, MANUAL TRANSMISSION CASE | ||||
| 33125-36010 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 33125-36020 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 33125-36020 |
BU61,68,7#,83,84,91,94 |
1 | ||
| 33125-36020 |
BU61,67,68,7#,8#,9#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-36060 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 33018-36060 |
BU61,67,68,7#,8#,9#..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32012 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 90311-32012 |
BU61,67,68,7#,8#,9#..5F |
1 | ||
| 33141A - SEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER) | ||||
| 90311-48016 |
BU72,73,74 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33017-36020 |
BU72,73,74 |
1 | ||
| 33017-36050 |
BU72,73,74 |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| 33161-36010 |
BU72..DMP..CBU;BU6#,70,78,8#,9#..5F |
1 | ||
| 33161-36010 |
BU72..DMP..CBU |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| 33162-36020 |
BU6#,7#,8#,9#..5F |
1 | ||
| 33162-36020 |
BU61,68,7#,83,84,91,94 |
1 | ||
| 33162-36020 |
BU73..20T;BU6#,70,72,74,78,8#,9#..5F |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-36010 |
BU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F |
1 | ||
| 33449-36010 |
BU61,67,68,7#,8#,9#..5F |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-08421 | ||||
| 90119-10186 | ||||
| 90119-10398 | ||||
| 91611-60610 | ||||
| 91611-60812 | ||||
| 91611-61016 | ||||
| 91611-61030 | ||||
| 91611-61045 | ||||
