BU72D-MDNT3 (1989)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,83,84,87 ; (8910-9109)14B..BU72,73,74 ; (9008-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56480 |
14B..BU72,73,74 |
1 | ||
| 17700-56480 |
14B..BU72,73,74 |
1 | ||
| 17700-56490 |
14B..BU72..DMP |
1 | ||
| 17700-56490 |
14B..BU72..DMP |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-06003 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-06003 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56170 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17701-56170 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17701-56170 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17701-56170 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17771-56020 |
B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17771-56030 |
14B..BU72..DMP |
1 | ||
| 17771-56030 |
14B..BU72..DMP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56020 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17807-56020 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17807-56020 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17807-56020 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17807-56011 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17807-56011 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(8808-9008)B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 ; (9008- )B,11B,14B,3B..BU6#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 17805-58120 |
14B..BU72,73,74 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58180 |
14B..BU72,73,74 |
1 | ||
| 17881-56130 |
14B..BU72..DMP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
11B,14B..BU61,66,67,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10850 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10800 |
14B..BU72..DMP ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10850 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10880 |
14B..BU67..DM4,T3;11B,14B..BU61,66,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
11B,14B..BU61,66,67,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10850 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10800 |
14B..BU72..DMP ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10850 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10880 |
14B..BU67..DM4,T3;11B,14B..BU61,66,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-54220 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17882-54220 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-95405 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17883-95405 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10830 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10780 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 96111-10750 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10830 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10780 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 96111-10750 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95427 |
BU6#,70,72,74,83,84,87 |
1 | ||
| 53097-37010 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 53097-37010 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53097-37060 |
BU72..DMP |
1 | ||
| 53709C - COVER SUB-ASSY, AIR CLEANER INLET | ||||
| 53709-95403 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53709-95403 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1 | ||||
| 53909-95404 |
BU6#,70,72,74,83,84,87 |
1 | ||
| 53909-37010 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53909-37010 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL | ||||
| 53970-95400 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 53970-95400 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53977 - PLATE, AIR CLEANER INLET COVER | ||||
| 53977-95402 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53977-95402 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90159-60168 | ||||
| 90202-05129 | ||||
| 90202-06119 | ||||
| 90468-14001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||

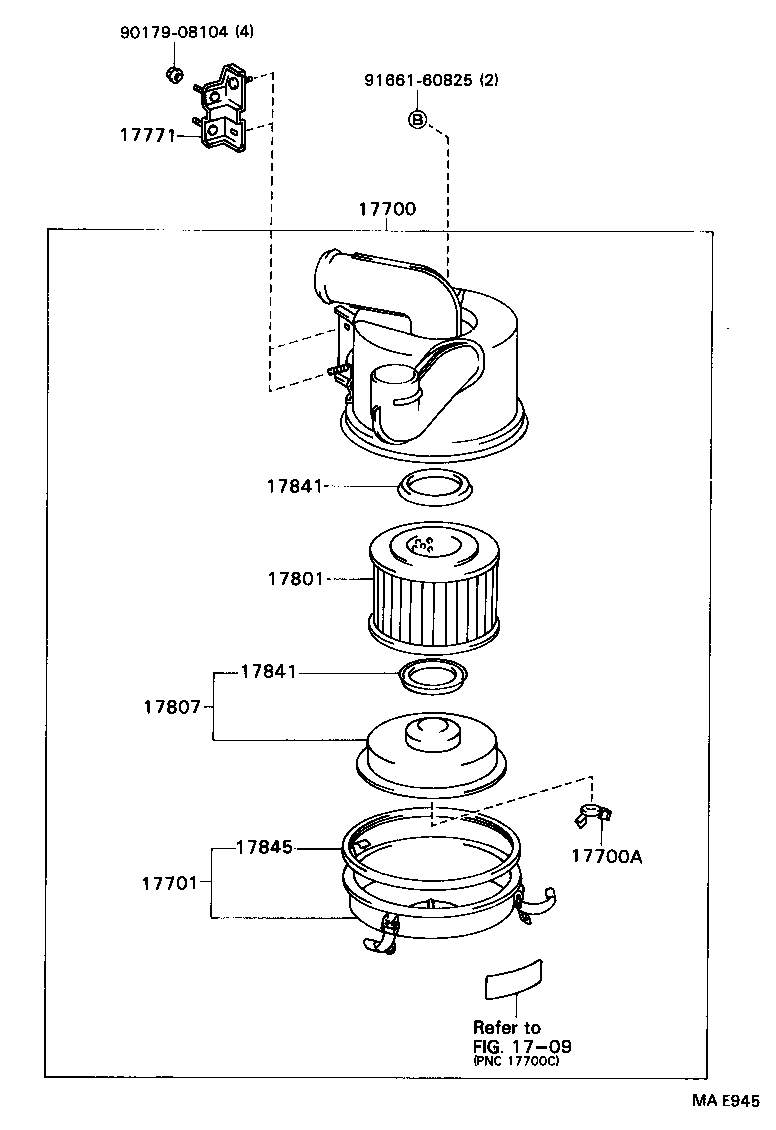

ILLUST NO. 1 OF 2(9109- )14B..BU72..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-56480 |
14B..BU72,73,74 |
1 | ||
| 17700-56490 |
14B..BU72..DMP |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-08008 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 90175-06003 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-06003 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.2 |
1 | ||
| 90175-08008 |
14B..BU72..DMP;14B..BU67..DM1;14B#..BU78,88,9# |
1 | ||
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-56170 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17701-56170 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17701-56150 |
14B..BU72..DMP;14B..BU67..DM1;14BT..BU96..4FC;14B..BU78,88,9# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-56020 |
B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17771-56030 |
14B..BU72..DMP |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-56020 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 17807-56020 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 17807-56011 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-56020 |
14BT..BU96..4FC;B,11B,14B,3B..BU6#,7#,83,84,87,88,91,94,96 |
1 | ||
| Common parts | ||||
| 90179-08104 | ||||
| 91661-60825 | ||||
| Linked diagrams | ||||
| 1709 | ||||

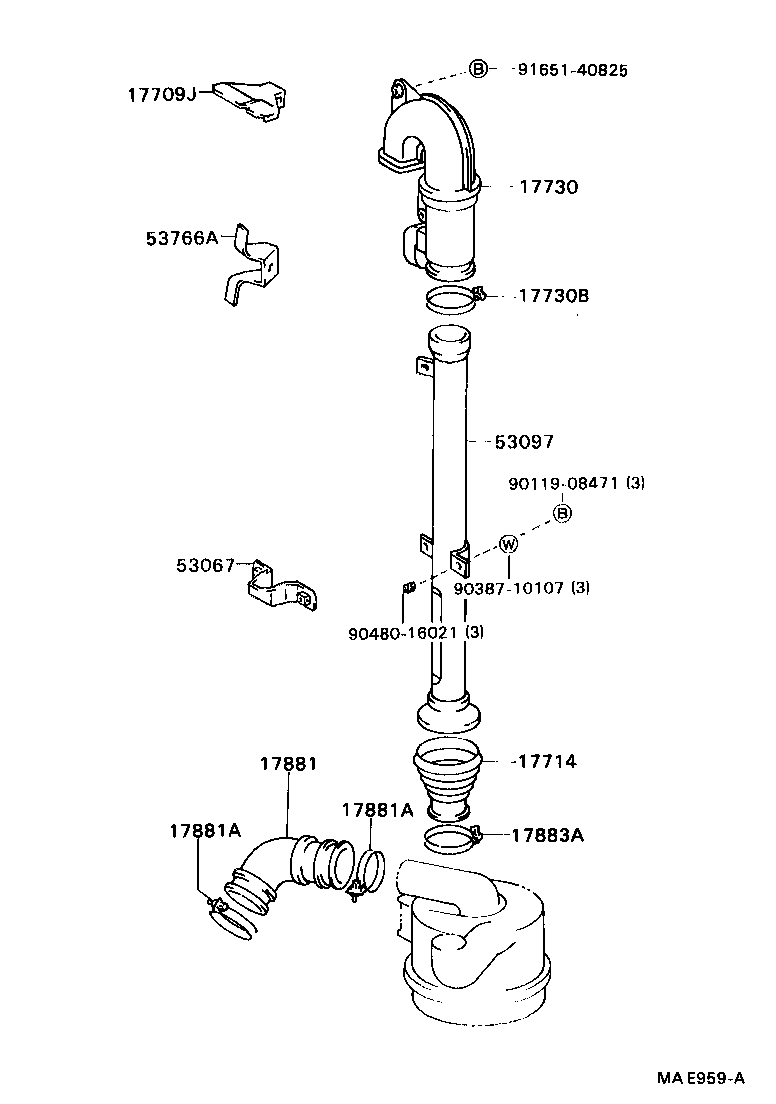

ILLUST NO. 2 OF 2(9109- )14B..BU72..DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17709J - BRACKET, AIR CLEANER INLET, NO.3 | ||||
| 53764-95406 |
14B..BU72..DMP |
1 | ||
| 17714 - RUBBER SEAL, AIR INTAKE | ||||
| 17714-95401 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-56040 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17730-56041 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17730B - CLAMP, HOSE(FOR PRECLEANER HOSE) | ||||
| 96111-10880 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58180 |
14B..BU72,73,74 |
1 | ||
| 17881-56130 |
14B..BU72..DMP |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
11B,14B..BU61,66,67,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10850 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10800 |
14B..BU72..DMP ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10850 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10880 |
14B..BU67..DM4,T3;11B,14B..BU61,66,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10880 |
11B,14B..BU61,66,67,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 96111-10850 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10800 |
14B..BU72..DMP ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10850 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 PIPE SIDE |
1 | ||
| 96111-10750 |
14B..BU67..DM1;14B..BU78,88,9#;14B,27LPG..BU68,72..DMP PIPE SIDE |
1 | ||
| 96111-10880 |
14B..BU67..DM4,T3;11B,14B..BU61,66,72,73,74,84,87 INTAKE MANIFOLD SIDE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10750 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10830 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 INLET SIDE |
1 | ||
| 96111-10780 |
14B..BU72..DMP;14B..BU67..DM1 |
1 | ||
| 96111-10750 |
14B..BU67..DM4,T3;B,11B,14B,3B..BU60,61,66,68,70,72,73,74,83,84,87 AIR CLEANER SIDE |
1 | ||
| 53067 - BRACKET SUB-ASSY, AIR CLEANER INLET | ||||
| 53067-95400 |
BU72..DMP |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-95427 |
BU6#,70,72,74,83,84,87 |
1 | ||
| 53097-37010 |
BU67..DM4,T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 53097-37010 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 53097-37060 |
BU72..DMP |
1 | ||
| 53766A - BRACKET, AIR CLEANER INLET PIPE | ||||
| 53766-95401 |
BU72..DMP |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90387-10107 | ||||
| 90480-16021 | ||||
| 91651-40825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
