BU72-MDFT3 (1989)
Toyota Dyna/Toyoace
(8910- )BU72,73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

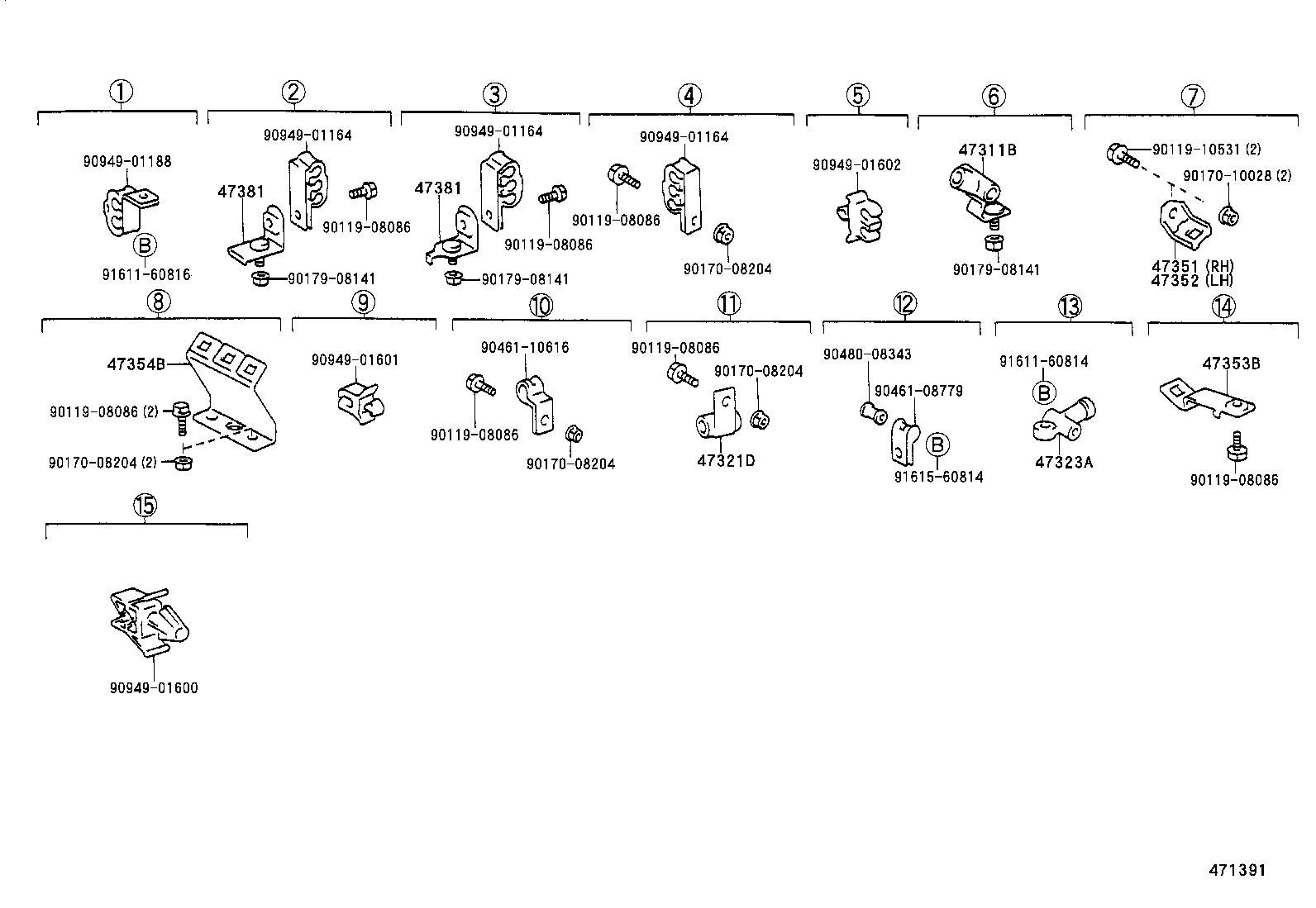

| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,7#,8#,9# |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-12004 |
BU61,72..WT;BU60,66..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36131 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36131 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36180 |
BU72 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36070 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36110 |
BU72,73,74 右側 |
1 | ||
| 47381-36060 |
BU72,73,74 左側 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36110 |
BU72,73,74 右側 |
1 | ||
| 47381-36060 |
BU72,73,74 左側 |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-10531 | ||||
| 90170-08204 | ||||
| 90170-10028 | ||||
| 90179-08141 | ||||
| 90461-08779 | ||||
| 90461-10616 | ||||
| 90480-08343 | ||||
| 90949-01164 | ||||
| 90949-01188 | ||||
| 90949-01600 | ||||
| 90949-01601 | ||||
| 90949-01602 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91615-60814 | ||||
(8910- )BU72,73,74
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

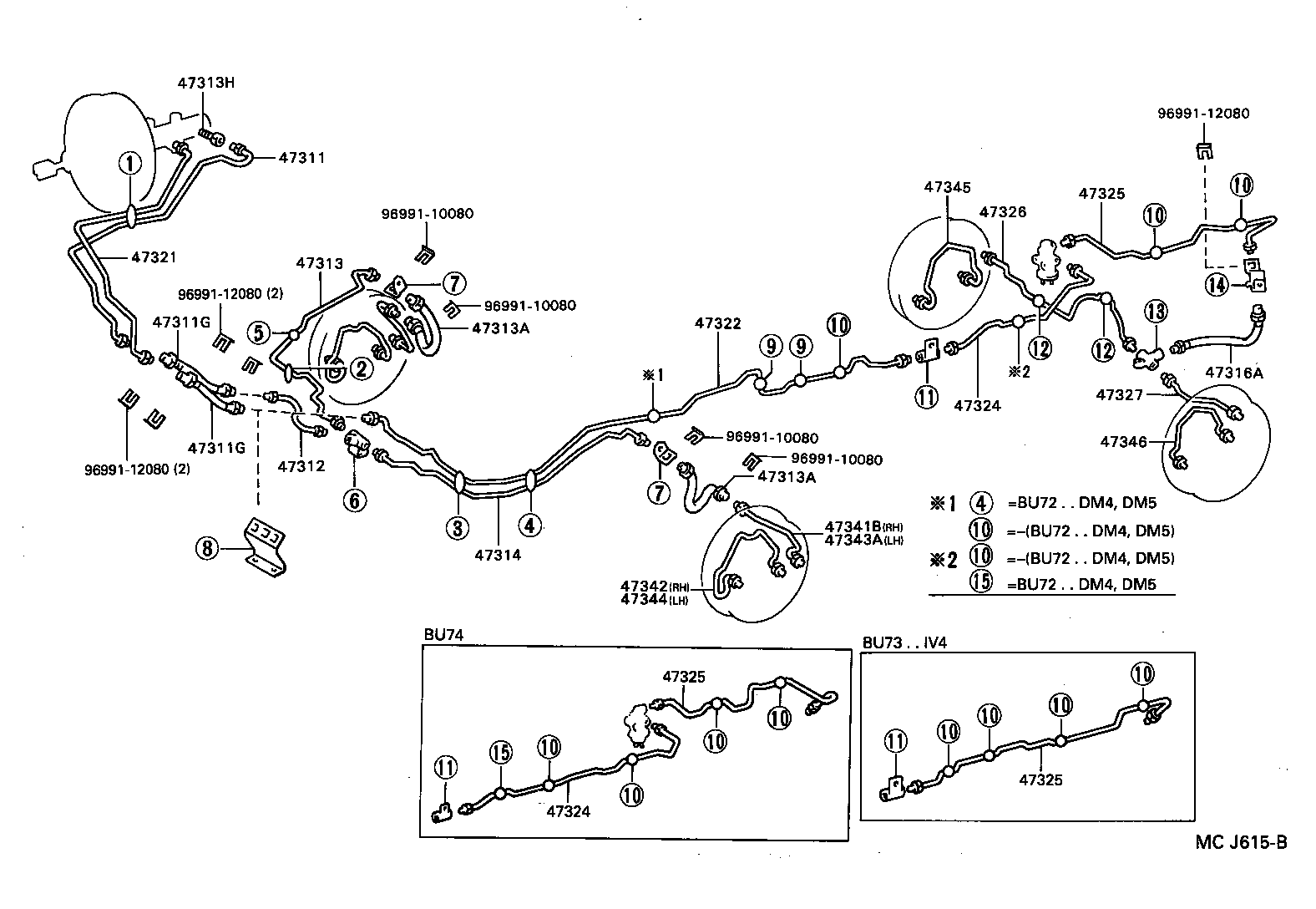

| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36410 |
BU67..T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36250 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36220 |
BU72,73,74 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-34005 |
BU72,73,74 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-34005 |
BU72,73,74 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90404-12007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
1 | ||
| 90404-12007 |
BU6#,7#,8#,9# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36230 |
BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU72,83,84,87;BU60,61,66,68,70..DM1,DM3,HRF,SRF,T1,T3,TW1 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36280 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36290 |
BU72,73,74..DM3,T3,T4,TW1 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36260 |
BU72,73..DM3,T3,T4,TW1 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36260 |
BU72,73..DM3,T3,T4,TW1 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36330 |
BU72..DM3,T3,T4 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36330 |
BU72..DM3,T3,T4 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-36330 |
BU72..DM3,T3,T4 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36100 |
BU60,61,66,72..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47326-36180 |
BU72..DM3,DM4,T3 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36210 |
BU72..DM3,DM4,T3 |
1 | ||
| 47327-36160 |
BU60,61,66,72..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36100 |
BU72..DM5,T4 |
1 | ||
| 47341-36110 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36080 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47342-36070 |
BU72..DM5,T4 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36100 |
BU72..DM5,T4 |
1 | ||
| 47343-36110 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-36070 |
BU72..DM5,T4 |
1 | ||
| 47344-36080 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47342-36060 |
BU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T) |
1 | ||
| 47345-36040 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1 |
1 | ||
| 47342-36060 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1 |
1 | ||
| 47344-36060 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47344-36060 |
BU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T) |
1 | ||
| Common parts | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(9309- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-36410 |
BU67..T3;BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33705 |
BU6#,70,72,73,74,83,84,87 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-36250 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-36220 |
BU72,73,74 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-34005 |
BU72,73,74 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-34005 |
BU72,73,74 |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90404-12007 |
BU61,66,67,68,72,74,78,8#,9#;BU60,70..(SRF,T1,T2,T3,T4,TW2,TW4)..(03S,06S) |
1 | ||
| 90404-12007 |
BU6#,7#,8#,9# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-36230 |
BU60,61,66,68,70,72,73,74,83,84,87 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU72,83,84,87;BU60,61,66,68,70..DM1,DM3,HRF,SRF,T1,T3,TW1 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96912-34005 |
BU72,83,84,87;BU60,61,66,68,70..DM1,DM3,HRF,SRF,T1,T3,TW1 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-36280 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-12014 |
BU6#,7#,8#,9# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-36290 |
BU72,73,74..DM3,T3,T4,TW1 |
1 | ||
| 47323A - WAY, NO.3(FOR REAR BRAKE TUBE) | ||||
| 90413-12004 |
BU61,72..WT;BU60,66..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-36260 |
BU72,73..DM3,T3,T4,TW1 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-36100 |
BU60,61,66,72..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47326-36180 |
BU72..DM3,DM4,T3 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-36210 |
BU72..DM3,DM4,T3 |
1 | ||
| 47327-36160 |
BU60,61,66,72..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-36100 |
BU72..DM5,T4 |
1 | ||
| 47341-36110 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-36080 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47342-36070 |
BU72..DM5,T4 |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-36100 |
BU72..DM5,T4 |
1 | ||
| 47343-36110 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-36070 |
BU72..DM5,T4 |
1 | ||
| 47344-36080 |
BU72,73,74..DM3,DM4,T3,TW1 |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47342-36060 |
BU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T) |
1 | ||
| 47345-36040 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1 |
1 | ||
| 47342-36060 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-36040 |
BU87..V;BU60,66,72,87..(DM1,DM3,DM4,T3,TW1)..WT;BU67,68,73,74,78,85,88,94..DM1,DM4,T3,T4,TW1 |
1 | ||
| 47344-36060 |
BU88..T2;BU60,61,66,72,83,84,87..DM2,DM5,T2,T4,TW2,TW4 |
1 | ||
| 47344-36060 |
BU83..CBU;BU83..DYN..IV3;BU60,61,66,72,84,87,88..(DM2,DM5,T2,T4,TW2,TW4)..(175,20T) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-36131 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-36131 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-36180 |
BU72 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-36070 |
BU6#,70,72,73,74,83,84,87 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-36110 |
BU72,73,74 右側 |
1 | ||
| 47381-36060 |
BU72,73,74 左側 |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
| 90119-08068 | ||||
| 90119-08086 | ||||
| 90119-10531 | ||||
| 90170-08204 | ||||
| 90170-10028 | ||||
| 90179-08141 | ||||
| 90201-10282 | ||||
| 90461-06112 | ||||
| 90461-08779 | ||||
| 90949-01164 | ||||
| 90949-01165 | ||||
| 90949-01188 | ||||
| 90949-01600 | ||||
| 90949-01862 | ||||
| 90949-01943 | ||||
| 90949-01944 | ||||
| 90949-01945 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||
(9309- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90091-40617 | ||||
| 90179-06009 | ||||
| 90179-08233 | ||||
| 90179-10071 | ||||
| 91512-60816 | ||||
