BU70V-MDJ (1984)
Toyota Dyna/Toyoace
Production
Sep 1984
-
Aug 1987
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )BU70

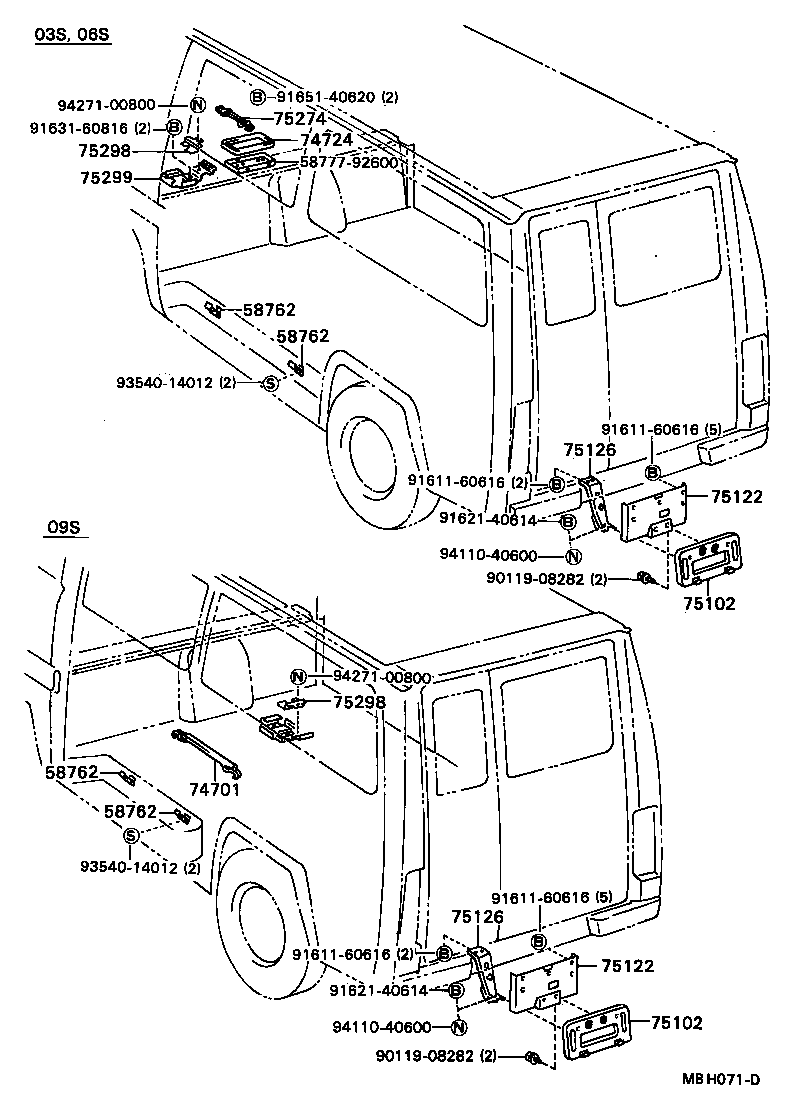

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58762 - HOLDER, STARTING HANDLE | ||||
| 58762-92600 |
BU70 |
2 | ||
| 58762 - HOLDER, STARTING HANDLE | ||||
| 58762-92600 |
BU70 |
2 | ||
| 58762 - HOLDER, STARTING HANDLE | ||||
| 58762-92600 |
BU70 |
2 | ||
| 58762 - HOLDER, STARTING HANDLE | ||||
| 58762-92600 |
BU70 |
2 | ||
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 58705-92601 |
BU70..09S |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-92605 |
BU70 |
1 | ||
| 75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE | ||||
| 75102-92605 |
BU70 |
1 | ||
| 75122 - STAY, REAR LICENSE PLATE BRACKET, UPPER | ||||
| 75123-92600 |
BU70 |
1 | ||
| 75122 - STAY, REAR LICENSE PLATE BRACKET, UPPER | ||||
| 75123-92600 |
BU70 |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66493-92601 |
BU70 |
1 | ||
| 75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER | ||||
| 66493-92601 |
BU70 |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-95400 |
BU70;BU6#,77,8#,93,98..03S |
1 | ||
| 75298 - PLATE, JACK HOLDER | ||||
| 75298-95400 |
BU70;BU6#,77,8#,93,98..03S |
1 | ||
| Common parts | ||||
| 58777-92600 | ||||
| 90119-08282 | ||||
| 91611-60616 | ||||
| 91621-40614 | ||||
| 91631-60816 | ||||
| 91651-40620 | ||||
| 93540-14012 | ||||
| 94110-40600 | ||||
| 94271-00800 | ||||
