BU70V-MDE (1984)
Toyota Dyna/Toyoace
Production
Sep 1984
-
Aug 1987
Engine
B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8409- )BU70

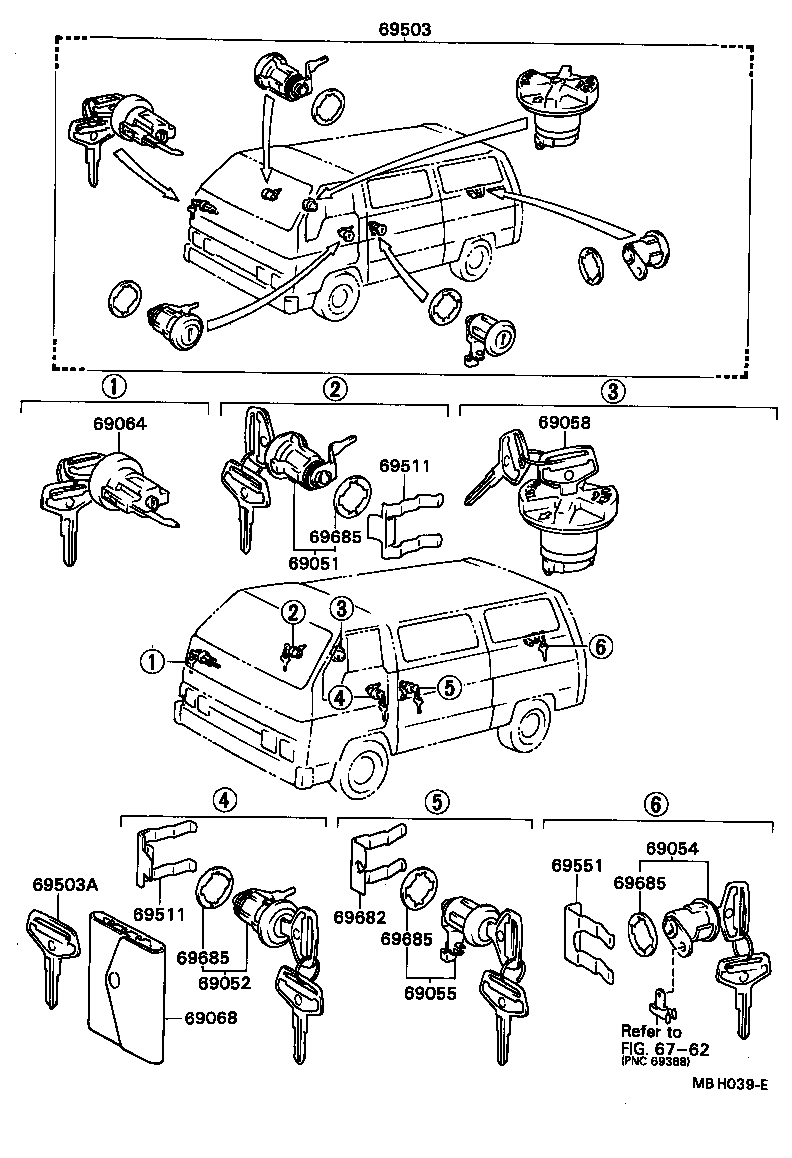

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95403 |
BU6#,7#,8#,9# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95403 |
BU6#,7#,8#,9# |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-92601 |
BU70 |
1 | ||
| 69055 - CYLINDER & KEY SET, REAR DOOR LOCK, LH | ||||
| 69054-92601 |
BU70 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-89102 |
BU6#,7#,8#,9# |
2 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95407 |
BU6#,7#,8#,9# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-20010 |
BU6#,7#,8#,9# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-92600 |
BU70 |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
BU6#,7#,8#,9# ﾏｽﾀｰｷｰ |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
BU6#,7#,8#,9# |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
BU6#,7#,8#,9# |
2 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69681-95402 |
BU70 |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69681-95402 |
BU70 |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
BU6#,7#,8#,9# FR DOOR |
2 | ||
| 69513-12020 |
BU70 BACK & SLIDE DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
BU6#,7#,8#,9# FR DOOR |
2 | ||
| 69513-12020 |
BU70 BACK & SLIDE DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
BU6#,7#,8#,9# FR DOOR |
2 | ||
| 69513-12020 |
BU70 BACK & SLIDE DOOR |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
BU6#,7#,8#,9# FR DOOR |
2 | ||
| 69513-12020 |
BU70 BACK & SLIDE DOOR |
2 | ||
| Linked diagrams | ||||
| 6762 | ||||
