BU70V-MD (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )BU70

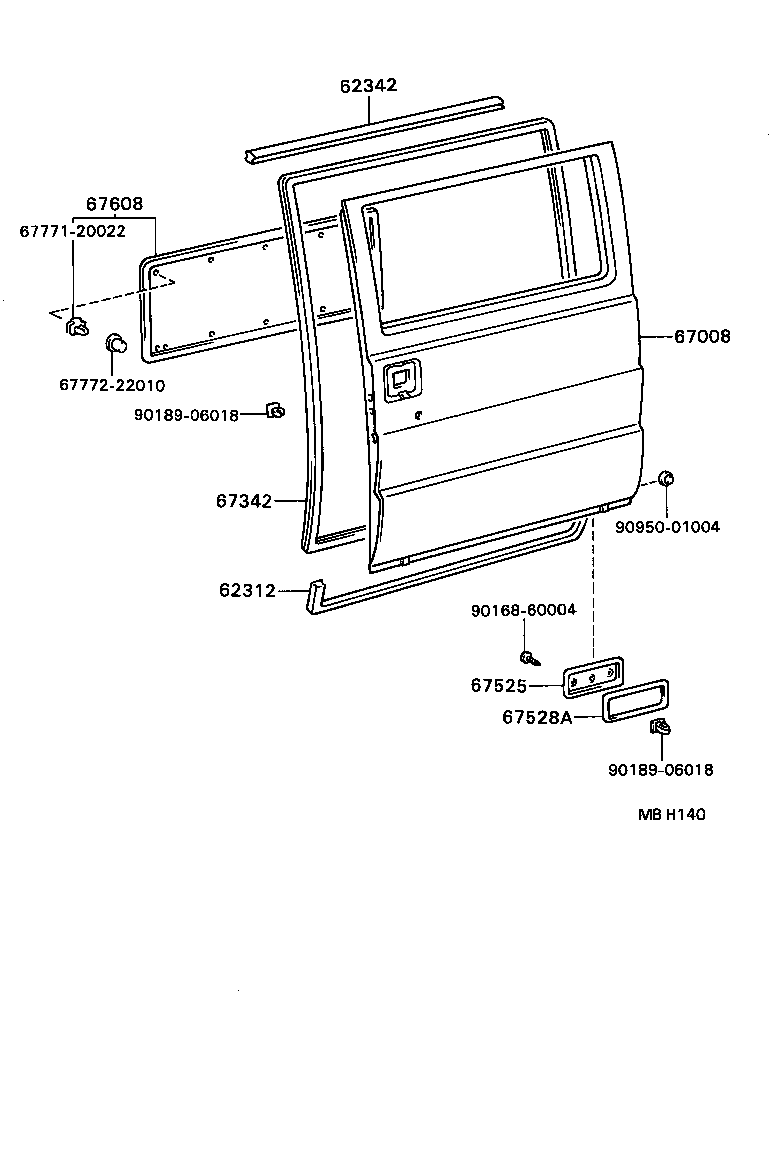

Click highlighted areas on diagram

diagram 62312 62342 67008 67342 67525 67528A 67608 6777120022 6777222010 9016860004 9018906018 9018906018 9095001004
Part # Description Qty Price
62312 - WEATHERSTRIP, DOOR OPENING TRIM, LOWER LH
62345-95A04

BU70

 1
62342 - WEATHERSTRIP, DOOR OPENING, UPPER LH
62343-95A00

BU70

 1
67008 - PANEL SUB-ASSY, SLIDE DOOR, LH
67004-92605

BU70

 1
67004-92604

BU70

 1
67342 - WEATHERSTRIP, SLIDE DOOR, LH
62342-95A00

BU70

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95A00

BU70

 2
67528A - PACKING, SLIDE DOOR LOWER COVER
67526-95A00

BU70

 2
67608 - BOARD SUB-ASSY, SLIDE DOOR TRIM, LH
67640-9260203

BU70

SHADOW GRAY,GRAY

 1
Common parts
67771-20022
67772-22010
90168-60004
90189-06018
90950-01004
