BU68DH-MDKTU3 (1993)

Toyota Dyna/Toyoace

Production Nov 1993 - May 1995
Engine 27LPG
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )27LPG

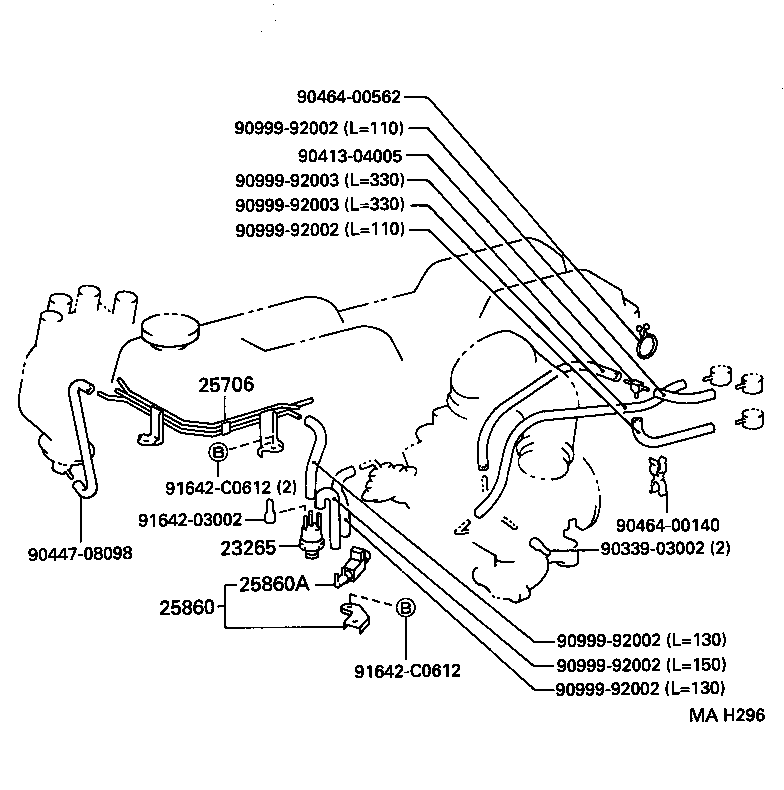

Click highlighted areas on diagram

diagram 23265 25706 25860 25860A 9033903002 9041304005 9044708098 9046400140 9046400562 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9164203002 91642C0612 91642C0612
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11027

27LPG..BU68

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-75030

27LPG..BU68

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75040

27LPG..BU68

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
25860-62010

27LPG..BU68

 1
Common parts
90339-03002
90413-04005
90447-08098
90464-00140
90464-00562
90999-92002
90999-92003
91642-03002
91642-C0612
