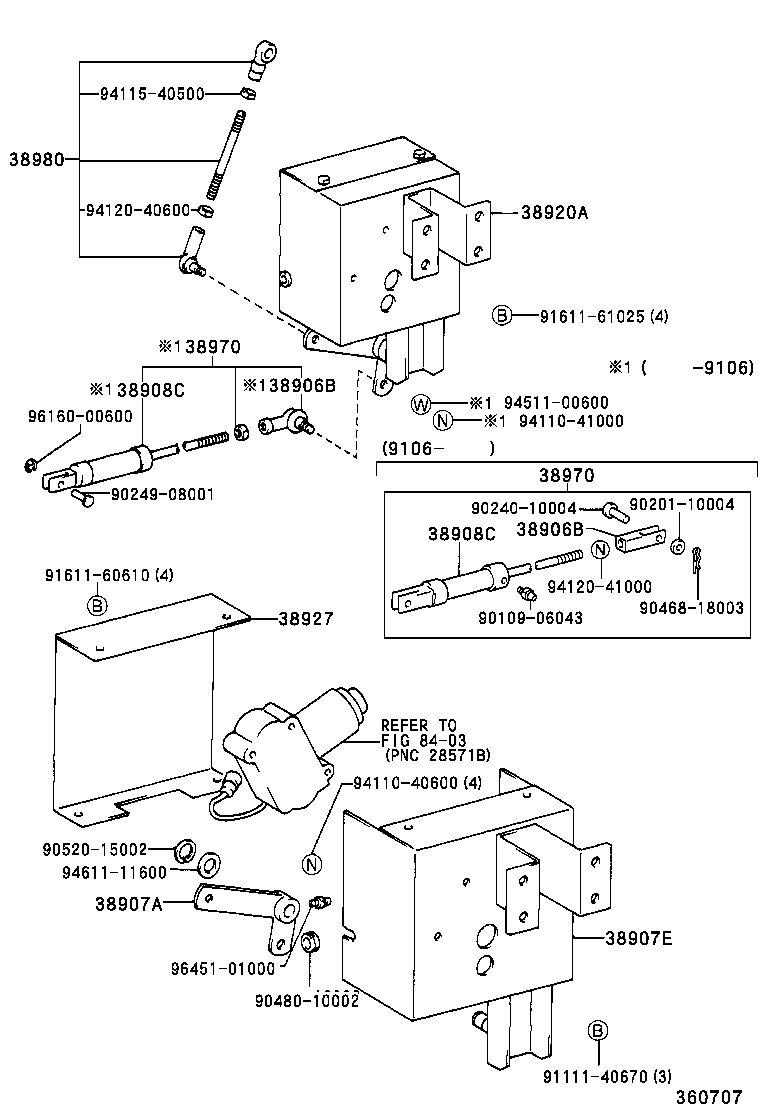

BU68DH-MDKTJ3 (1989)
Toyota Dyna/Toyoace
(9008-9306)BU60,66,68..DM1,T3..5F..WT..20T..IV3
ﾎﾞﾀﾝ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38906B - JOINT ASSY, BALL (FOR POWER TAKE-0FF CONTROL ROD) | ||||
| 38906-93101 |
BU66,88..4FC;BU67..4FC..CBU;BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38906B - JOINT ASSY, BALL (FOR POWER TAKE-0FF CONTROL ROD) | ||||
| 38906-93101 |
BU66,88..4FC;BU67..4FC..CBU;BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38907-93122 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93125 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL | ||||
| 38907-93123 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907-93116 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38907-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93116 |
BU60,61,67,78,8#,9#..TR..5F;BU66,68..(DM1,T2,T3,T4,TW4)..5F..DSL |
1 | ||
| 38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38908-93109 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93111 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93112 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38908-93109 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93111 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93112 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927 - COVER, VALVE CONTROL LEVER | ||||
| 38927-93102 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93105 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38970 - ROD ASSY, POWER TAKE-OFF CONTROL | ||||
| 38970-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38970 - ROD ASSY, POWER TAKE-OFF CONTROL | ||||
| 38970-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38980 - ROD ASSY, VALVE CONTROL | ||||
| 38980-93101 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| Common parts | ||||
| 90109-06043 | ||||
| 90201-10004 | ||||
| 90240-10004 | ||||
| 90249-08001 | ||||
| 90468-18003 | ||||
| 90480-10002 | ||||
| 90520-15002 | ||||
| 91111-40670 | ||||
| 91611-60610 | ||||
| 91611-61025 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94115-40500 | ||||
| 94120-40600 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94611-11600 | ||||
| 96160-00600 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 8403 | ||||
ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38906B - JOINT ASSY, BALL (FOR POWER TAKE-0FF CONTROL ROD) | ||||
| 38906-93101 |
BU66,88..4FC;BU67..4FC..CBU;BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38906-93101 |
BU66,88..4FC;BU67..4FC..CBU;BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38907-93122 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93122 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93125 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907-93125 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL | ||||
| 38907-93123 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907-93123 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38907-93116 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38907-93116 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38907-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93116 |
BU60,61,67,78,8#,9#..TR..5F;BU66,68..(DM1,T2,T3,T4,TW4)..5F..DSL |
1 | ||
| 38907-93116 |
BU60,61,67,78,8#,9#..TR..5F;BU66,68..(DM1,T2,T3,T4,TW4)..5F..DSL |
1 | ||
| 38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38908-93109 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93109 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93111 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93111 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93112 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93112 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927 - COVER, VALVE CONTROL LEVER | ||||
| 38927-93102 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93102 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93105 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93105 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38927-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38970 - ROD ASSY, POWER TAKE-OFF CONTROL | ||||
| 38970-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38970-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| Common parts | ||||
| 82711-95410 | ||||
| 90109-06043 | ||||
| 90249-10110 | ||||
| 90461-07033 | ||||
| 90480-40004 | ||||
| 90520-15002 | ||||
| 91111-60670 | ||||
| 91611-60610 | ||||
| 91611-60855 | ||||
| 91611-61025 | ||||
| 91611-61055 | ||||
| 94110-40600 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94511-00600 | ||||
| 94511-01000 | ||||
| 94611-11600 | ||||
| 96160-00900 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 8413 | ||||

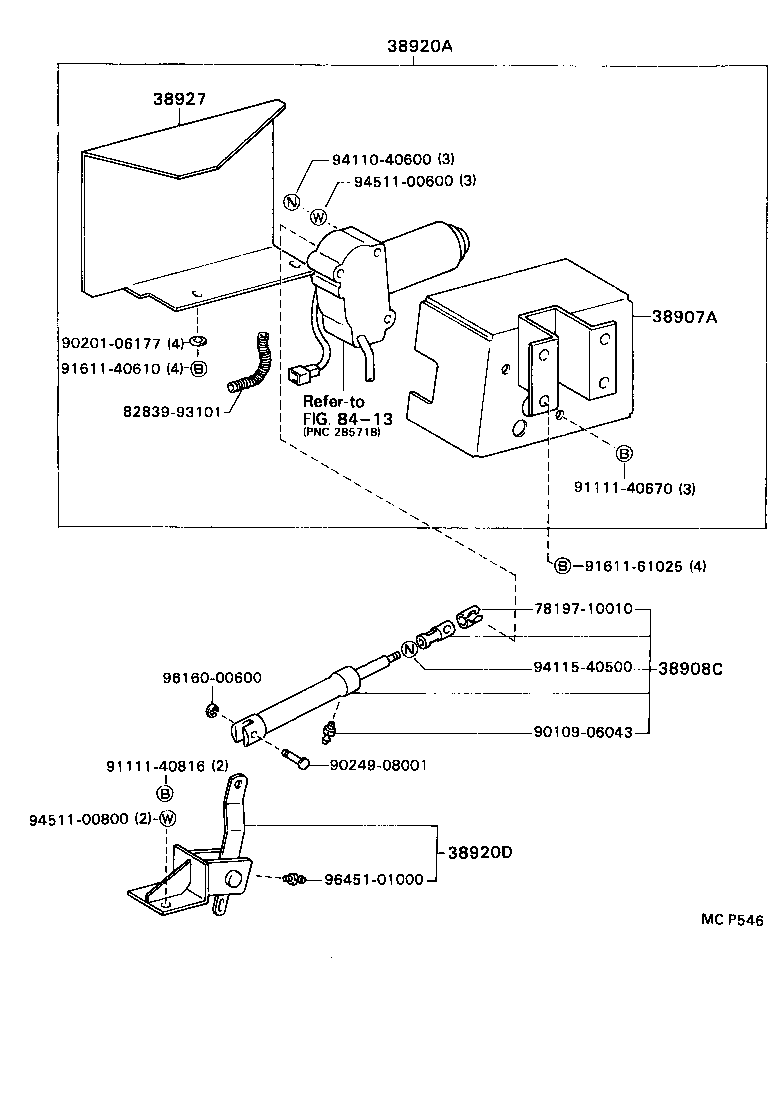

(9306- )BU60,66,68..DM1,T3..5F..WT..20T..IV3
ﾎﾞﾀﾝ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38907A - LEVER SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38907-93122 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38907-93125 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38908C - ROD SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38908-93109 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93111 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38908-93112 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38920-93113 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93108 |
BU68;BU60,61,66,67,78,8#,9#..TR..5F..(CBU,IV3) |
1 | ||
| 38920-93108 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 |
1 | ||
| 38920-93116 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920-93118 |
BU60,66,68..(DM1,T3)..5F..WT..20T..DSL..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38920D - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.2 | ||||
| 38920-93115 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| 38927 - COVER, VALVE CONTROL LEVER | ||||
| 38927-93102 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93105 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 ﾎﾞﾀﾝ ｼｷ |
1 | ||
| 38927-93106 |
BU60,66,68..(DM1,T3)..5F..WT..20T..IV3 |
1 | ||
| Common parts | ||||
| 78197-10010 | ||||
| 82839-93101 | ||||
| 90109-06043 | ||||
| 90201-06177 | ||||
| 90249-08001 | ||||
| 91111-40670 | ||||
| 91111-40816 | ||||
| 91611-40610 | ||||
| 91611-61025 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 96160-00600 | ||||
| 96451-01000 | ||||
| Linked diagrams | ||||
| 8413 | ||||
