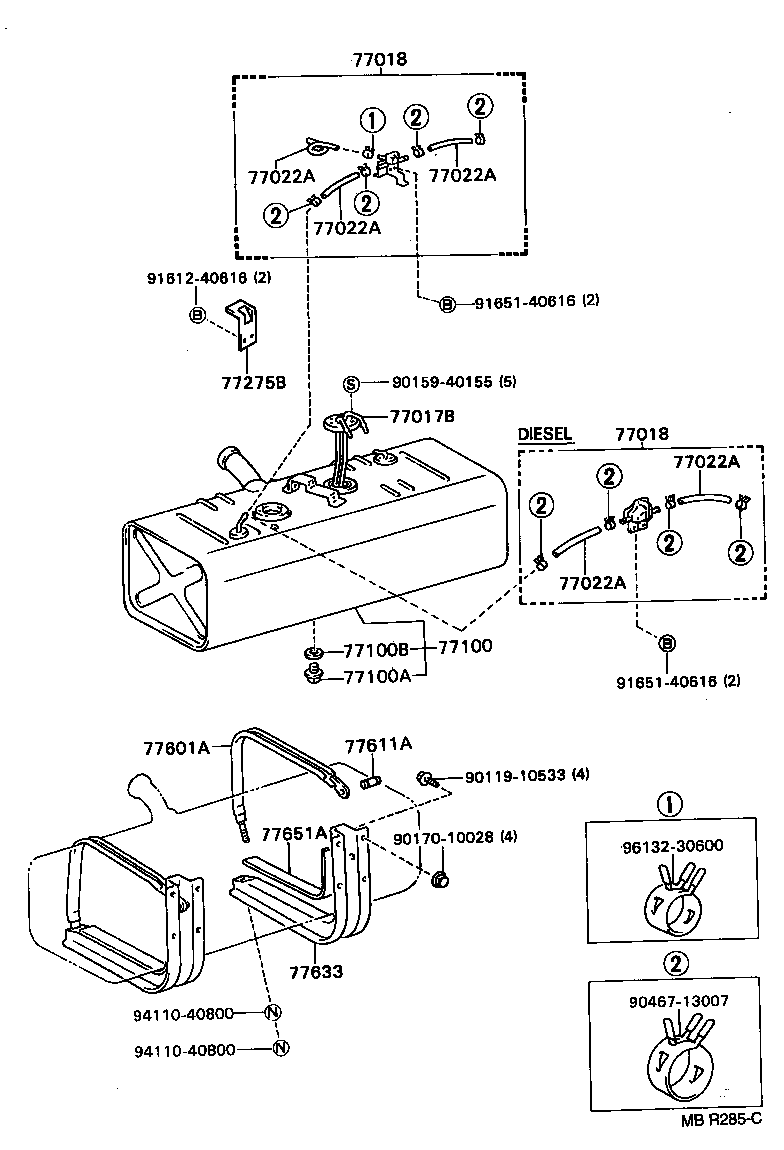

BU67D-PDSTJ3 (1988)
Toyota Dyna/Toyoace
(8808- )DMP,TR..DSL,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36330 |
BU87..V;BU88..T3,TW1;BU87,96..5F..(275,35T);BU87..(T3,TW1)..(20T,30T);BU6#,72,73,74,91,94..(DM1,DM3,DM4,T3)..(DSL,TD) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B090 |
BU6#..(DM1,DM3,DM4,T3)..DSL ｱﾘ(ﾌﾕｰｴﾙ ﾀﾝｸ = 77.5L),W=385,H=310,L=780 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77275B - PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE | ||||
| 77275-36020 |
BU66,67,68,72..DMP |
1 | ||
| 77275-36020 |
BU67,72..DMP;BU66..DM2,DM3,DM5 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
BU72..DM4,T3;BU60,66,67,68,74..(DM1,DM3,DM4,T3)..WT..20T |
2 | ||
| 77601-36150 |
BU88..T3..IV3;BU87..T3..4FC..20T;BU87,94..T3..5F..IV3;BU66..(DM1,DM3,T3)..WT..20T;BU66,91,96..T3..5F..(275,30T,35T)..IV3;BU60,67,68,72,73,74..(DM1,DM3,DM4,T3)..WT..DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-36080 |
BU67 |
2 | ||
| 77501-36080 |
BU67;BU96..5F..IV3;BU88,91,94..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77651-36110 |
BU87,88..T2,T4;BU61,67,78,83,84..WT;BU87,96..4FC..(275,35T);BU60,66,72,73,90,91,94..(DM2,DM5,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| Common parts | ||||
| 90119-10533 | ||||
| 90159-40155 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91612-40616 | ||||
| 91651-40616 | ||||
| 94110-40800 | ||||
| 96132-30600 | ||||

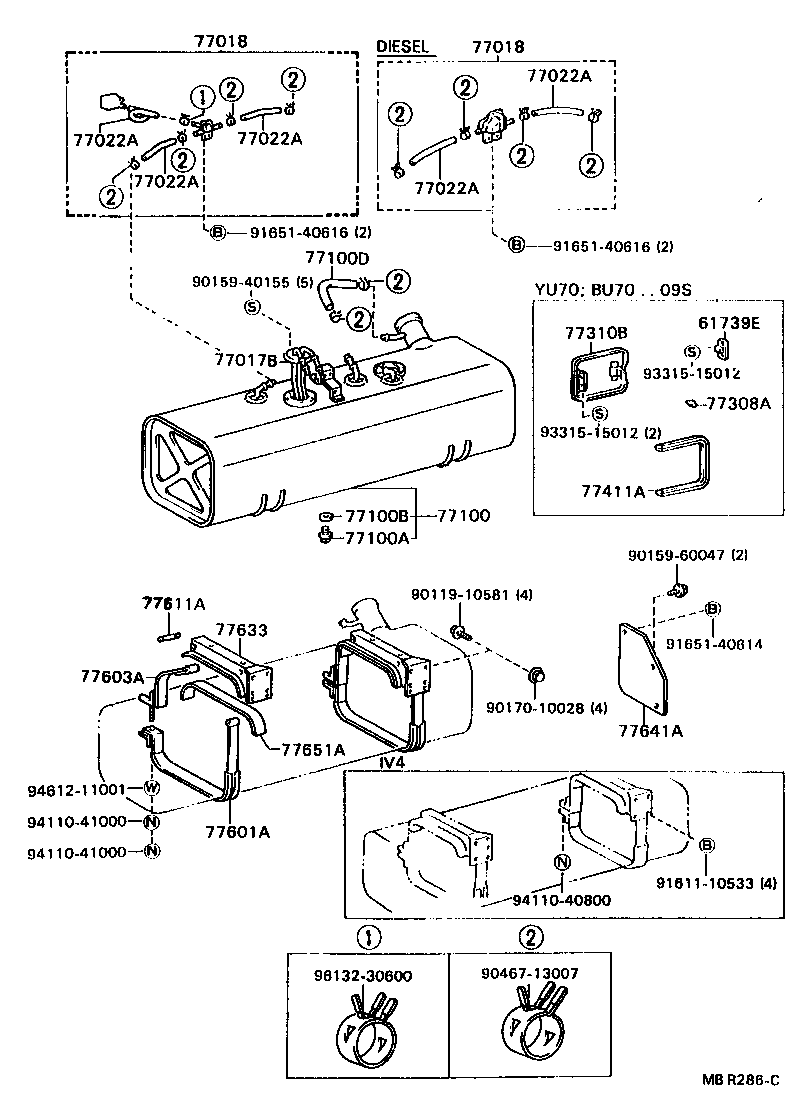

(8808- )BU87..V ; (8808- )BU87..06S..IV3 ;(8808- )BU66..175..CBU ; (8808-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-36330 |
BU87..V;BU88..T3,TW1;BU87,96..5F..(275,35T);BU87..(T3,TW1)..(20T,30T);BU6#,72,73,74,91,94..(DM1,DM3,DM4,T3)..(DSL,TD) |
1 | ||
| 77017-36330 |
BU87..V;BU88..T3,TW1;BU87,96..5F..(275,35T);BU87..(T3,TW1)..(20T,30T);BU6#,72,73,74,91,94..(DM1,DM3,DM4,T3)..(DSL,TD) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77018-36230 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 95333-08030 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) *H,L=300 |
2 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-3B090 |
BU6#..(DM1,DM3,DM4,T3)..DSL ｱﾘ(ﾌﾕｰｴﾙ ﾀﾝｸ = 77.5L),W=385,H=310,L=780 |
1 | ||
| 77001-3B090 |
BU6#..(DM1,DM3,DM4,T3)..DSL ｱﾘ(ﾌﾕｰｴﾙ ﾀﾝｸ = 77.5L),W=385,H=310,L=780 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 90105-12116 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 90430-12245 |
BU6#,7#,8#,9#..DSL,TD |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
BU72..DM4,T3;BU60,66,67,68,74..(DM1,DM3,DM4,T3)..WT..20T |
2 | ||
| 77601-36150 |
BU72..DM4,T3;BU60,66,67,68,74..(DM1,DM3,DM4,T3)..WT..20T |
2 | ||
| 77601-36150 |
BU88..T3..IV3;BU87..T3..4FC..20T;BU87,94..T3..5F..IV3;BU66..(DM1,DM3,T3)..WT..20T;BU66,91,96..T3..5F..(275,30T,35T)..IV3;BU60,67,68,72,73,74..(DM1,DM3,DM4,T3)..WT..DSL |
2 | ||
| 77601-36150 |
BU88..T3..IV3;BU87..T3..4FC..20T;BU87,94..T3..5F..IV3;BU66..(DM1,DM3,T3)..WT..20T;BU66,91,96..T3..5F..(275,30T,35T)..IV3;BU60,67,68,72,73,74..(DM1,DM3,DM4,T3)..WT..DSL |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77629-36010 |
BU87;BU6#,72,73,74,78,83,84,85,88,9#..(20T,275,30T,35T,IV4)..(DSL,TD) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-36080 |
BU67 |
2 | ||
| 77501-36080 |
BU67 |
2 | ||
| 77501-36080 |
BU67;BU96..5F..IV3;BU88,91,94..T3..IV3 |
2 | ||
| 77501-36080 |
BU67;BU96..5F..IV3;BU88,91,94..T3..IV3 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77651-36110 |
BU96..4FC;BU87,88..T2,T4;BU61,67,83,84..WT;BU60,66,90,91..(DM2,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77651-36110 |
BU87,88..T2,T4;BU61,67,78,83,84..WT;BU87,96..4FC..(275,35T);BU60,66,72,73,90,91,94..(DM2,DM5,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| 77651-36110 |
BU87,88..T2,T4;BU61,67,78,83,84..WT;BU87,96..4FC..(275,35T);BU60,66,72,73,90,91,94..(DM2,DM5,T1,T2,T4,TW1)..(20T,35T,IV4) |
2 | ||
| Common parts | ||||
| 90119-10581 | ||||
| 90159-40155 | ||||
| 90159-60047 | ||||
| 90170-10028 | ||||
| 90467-13007 | ||||
| 91611-10533 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 93315-15012 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||

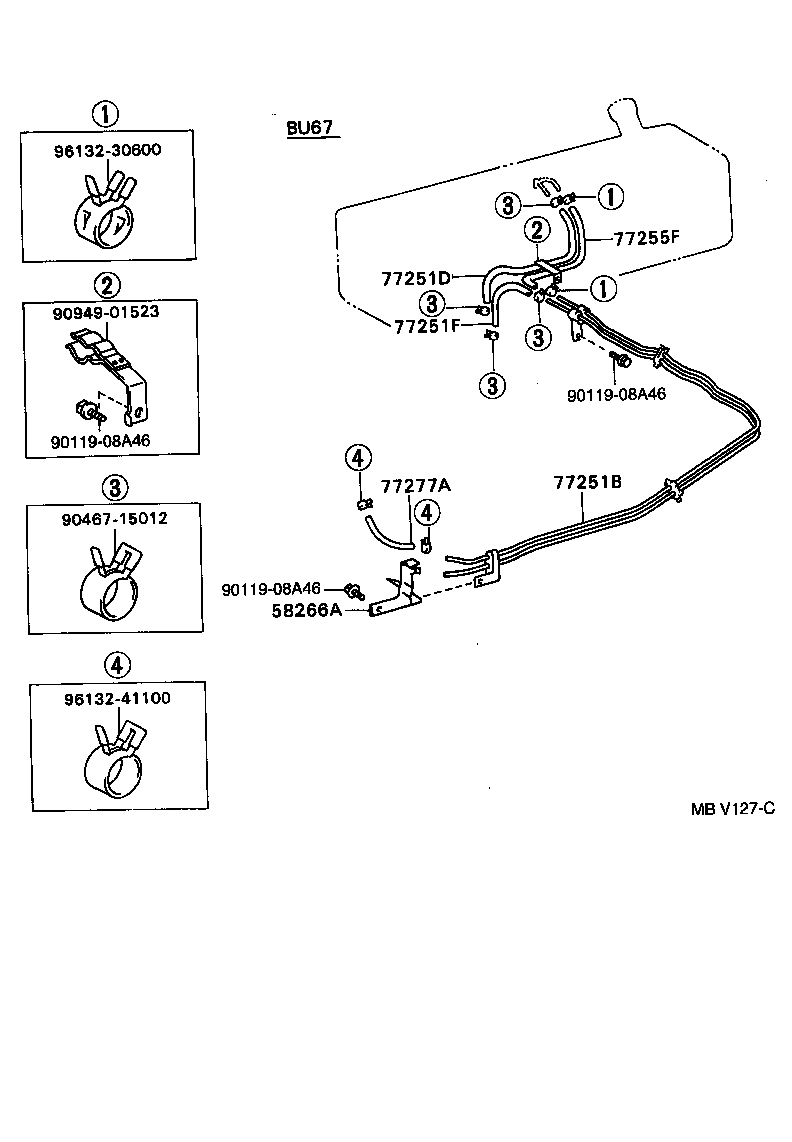

(8808- )BU67
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-36361 |
BU67..4FC |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-36641 |
BU67..4FC |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-10070 |
BU67 *H,L=700 |
1 | ||
| 95332-10070 |
BU67..DM4,T3 *H,L=700 |
1 | ||
| 77251F - HOSE, FUEL | ||||
| 95332-10030 |
BU67 *H,L=300 |
1 | ||
| 95332-10030 |
BU67..DM4,T3 *H,L=300 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06060 |
BU67..DM4,T3 *H,L=600 |
1 | ||
| 95333-06060 |
BU67 *H,L=600 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23273-56010 |
BU6#,7#,83,84,87,88,91,94,96..DSL,TD 長さ=220 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90467-15012 | ||||
| 90949-01523 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||
