BU67D-PDSTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )14B..BU67

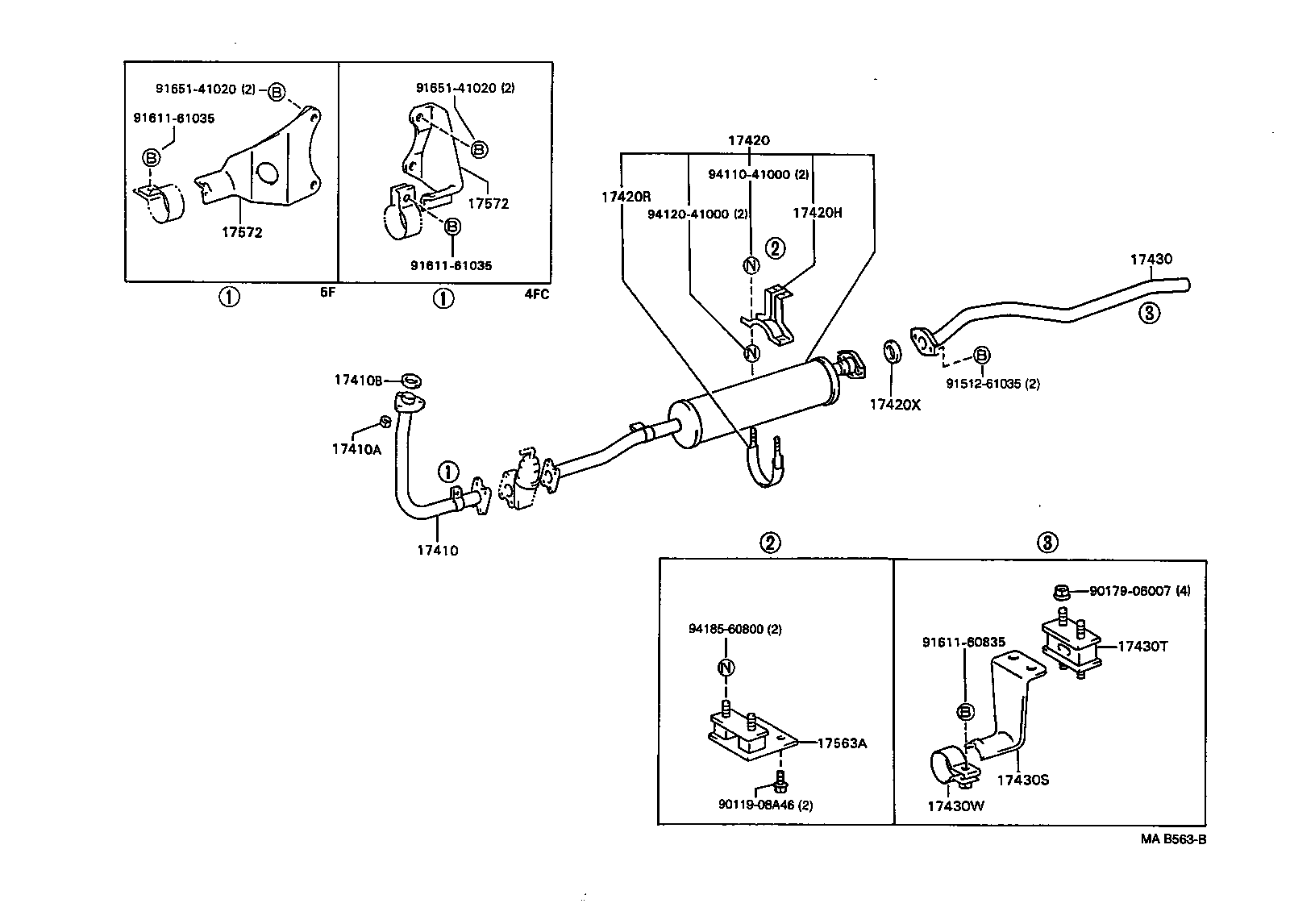

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17420H 17420R 17420X 17430 17430S 17430T 17430W 17563A 17572 17572 9011908A46 9017906007 9151261035 9161160835 9161161035 9161161035 9165141020 9165141020 9411041000 9412041000 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58160

B,11B,14B,3B..BU6#,70,83,84,87

 1
17401-58171

B,11B,14B,3B..BU6#,70,83,84,87

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9#

 3
17410B - GASKET, EXHAUST PIPE
90917-06059

B,11B,14B#,3B..BU6#,7#,8#,9#

 1
90917-06034

B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-58430

14B..BU67

 1
17420H - CLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17576-58020

B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87

 1
17420R - CLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17504-58010

B,11B,14B,27LPG,3B..BU6#,70,74,83,84,87

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06042

B,11B,14B#,3B..BU6#,7#,8#,9#

 1
90917-06005

B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-58350

14B..BU67

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17561-47010

14B..BU72..T3;B,14B,3B..BU60,66,67,68..(DM1,DM3,DM4,T3,TW1)..WT..(20T,IV4)

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17567-61030

B,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9#

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-32007

B,11B,13BT,14B#,3B..BU6#,7#,8#,9#

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17563-58020

14B..BU67

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58210

14B..BU66,67,87..4FC

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17571-58210

14B..BU66,67,87..4FC

 1
Common parts
90119-08A46
90179-06007
91512-61035
91611-60835
91611-61035
91651-41020
94110-41000
94120-41000
94185-60800
