BU67D-MDSTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU6#,70,83,84,87..DSL

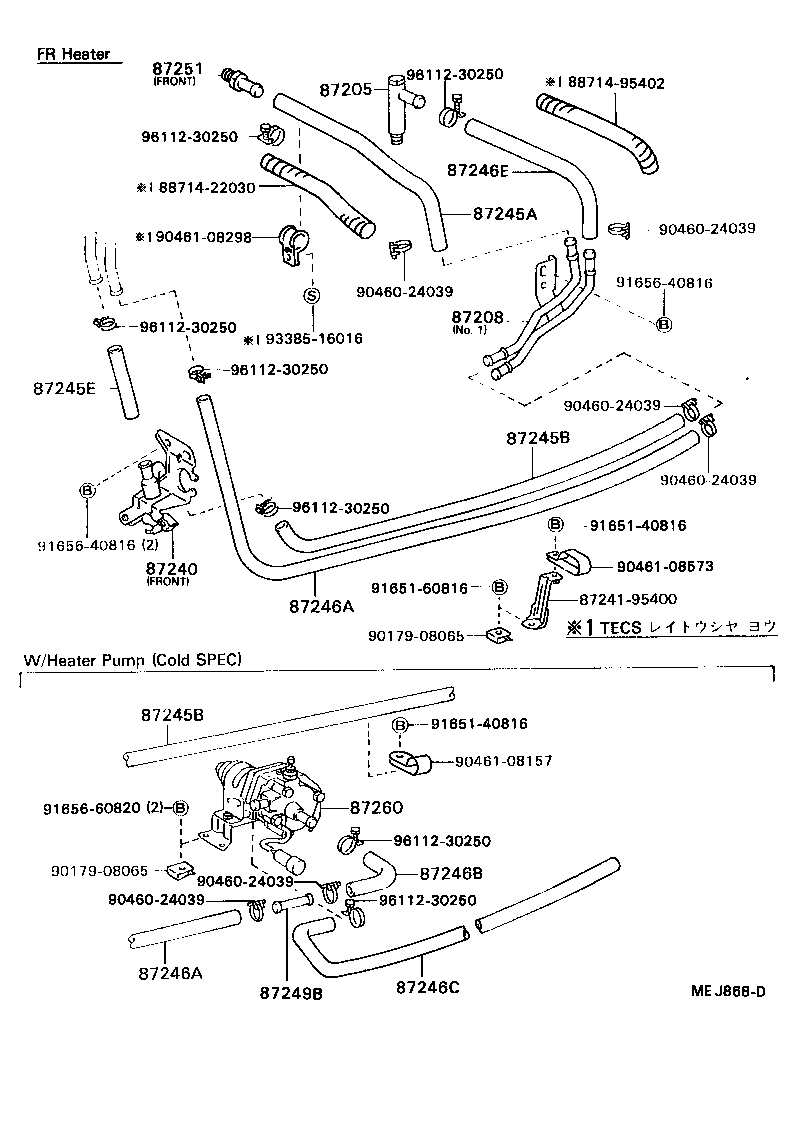

Click highlighted areas on diagram

diagram 87205 87208 87240 8724195400 87245A 87245B 87245B 87245E 87246A 87246A 87246B 87246C 87246E 87249B 87251 87260 8871422030 8871495402 9017908065 9017908065 9046024039 9046024039 9046024039 9046024039 9046024039 9046024039 9046108157 9046108298 9046108573 9165140816 9165140816 9165160816 9165540816 9165640816 9165660820 9338516016 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250 9611230250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU6#,70,8#,9#

 1
87251-95400

BU6#,70,78,83,84,87,88,91,94,96..DSL,TD

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95409

BU67

 1
87208-95409

BU6#,70,83,84,87..DSL

 1
87240 - VALVE ASSY, HEATER WATER
87240-95409

BU6#,70,8#,9#

 1
87240-95409

BU6#,7#,83,84,87,88,91,94,96

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

BU6#,70,83,84,87..DSL

長さ=300

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU6#,70,83,84,87..DSL

*H,L=680

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30680

BU6#,70,83,84,87..DSL

*H,L=680

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30135

BU6#,7#,83,84,87,88,91,94,96..DSL,TD

*H,L=135

 1
99556-30135

BU6#,70,8#,9#

*H,L=135

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU6#,70,72,73,74,83,84,87..DSL

*H,L=980

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

BU6#,70,72,73,74,83,84,87..DSL

*H,L=980

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

BU6#,70,83,84,87..DSL

長さ=300

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20160

BU6#,70,8#,9#

 1
87251-30200

BU6#,70,78,8#,9#..DSL,TD

 1
87251-20160

BU6#,70,78,83,84,87,88,91,94,96

 1
Common parts
87241-95400
88714-22030
88714-95402
90179-08065
90460-24039
90461-08157
90461-08298
90461-08573
91651-40816
91651-60816
91655-40816
91656-40816
91656-60820
93385-16016
96112-30250
