BU67D-MDSTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU66,67,72..DM1,DM2,DM4,DM5

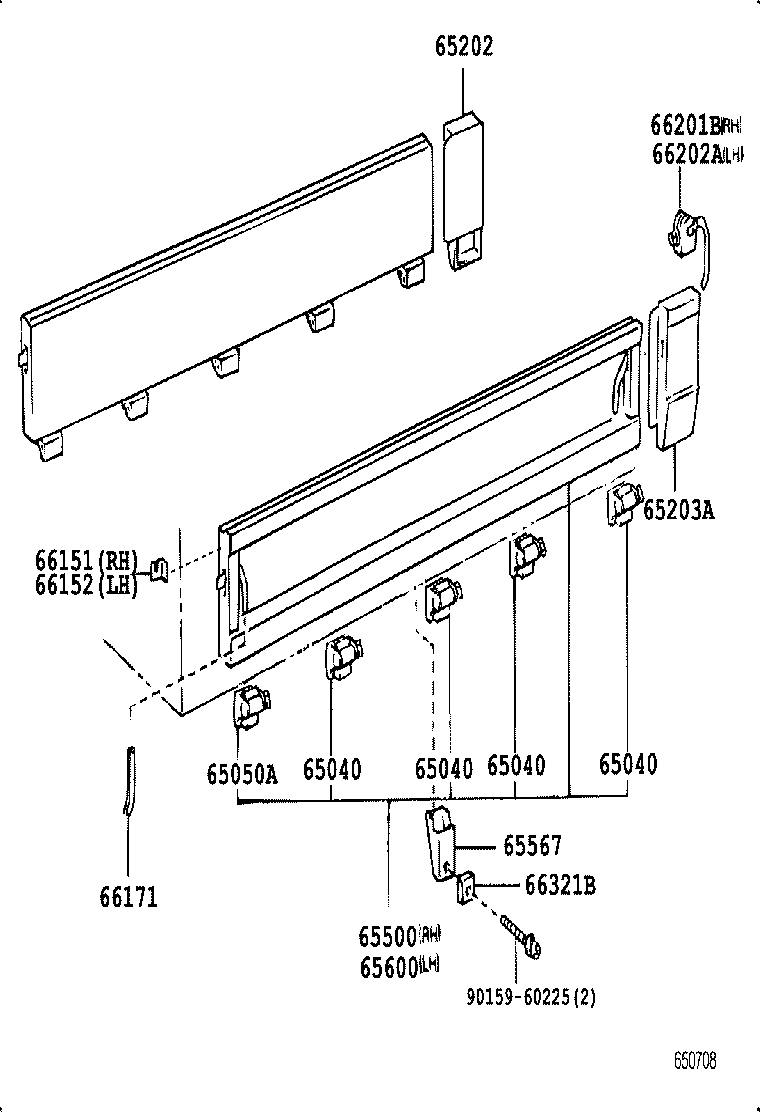

Click highlighted areas on diagram

diagram 65040 65040 65040 65040 65050A 65202 65203A 65500 65567 65600 66151 66152 66171 66201B 66202A 66321B 9015960225
Part # Description Qty Price
65040 - HINGE ASSY, SIDE GATE 1
65040-93101

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 4
65050-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 4
65040 - HINGE ASSY, SIDE GATE 1
65040-93101

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 4
65050-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 4
65040 - HINGE ASSY, SIDE GATE 1
65040-93101

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 4
65050-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 4
65040 - HINGE ASSY, SIDE GATE 1
65040-93101

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 4
65050-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 4
65050A - HINGE ASSY, SIDE GATE 2
65040-93101

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 1
65050-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 1
65202 - POST SUB-ASSY, SIDE GATE, REAR RH
65202-93101

BU67..DMP..CBU

 1
65203A - POST SUB-ASSY, SIDE GATE, REAR LH
65203-93101

BU67..DMP..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-93108

BU67..DM4..CBU

 1
65567 - SUPPORT, SIDE GATE
65567-93101

BU67,72..(DM1,DM4)..CBU

 4
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-93109

BU67..DM4..CBU

 1
66201B - LATCH SUB-ASSY, TAIL GATE, RH
66201-93104

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

 1
66202A - LATCH SUB-ASSY, TAIL GATE, LH
66202-93104

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

 1
66321B - BUMPER, GATE RUBBER
66321-93103

BU72..DM3;BU67..DMP..CBU

 4
Common parts
90159-60225

(8808- )BU87,88..06S ; (8808- )BU66..175..CBU ; (8808- )BU60,61,66,67..T2,

Click highlighted areas on diagram

diagram 65500 65500 65600 65600 65621A 65621A 65679E 66110C 66110C 66120C 66120C 9010908119 9010908120 9011908464 9014960058 9014960075 9014960076 9014980009 9017906113 9046708008 9054106021
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-93108

BU67..DM4..CBU

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-93108

BU67..DM4..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-93109

BU67..DM4..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-93109

BU67..DM4..CBU

 1
Common parts
90109-08119
90109-08120
90119-08464
90149-60058
90149-60075
90149-60076
90149-80009
90179-06113
90467-08008
90541-06021
