BU67D-MDSTJ (1988)
Toyota Dyna/Toyoace

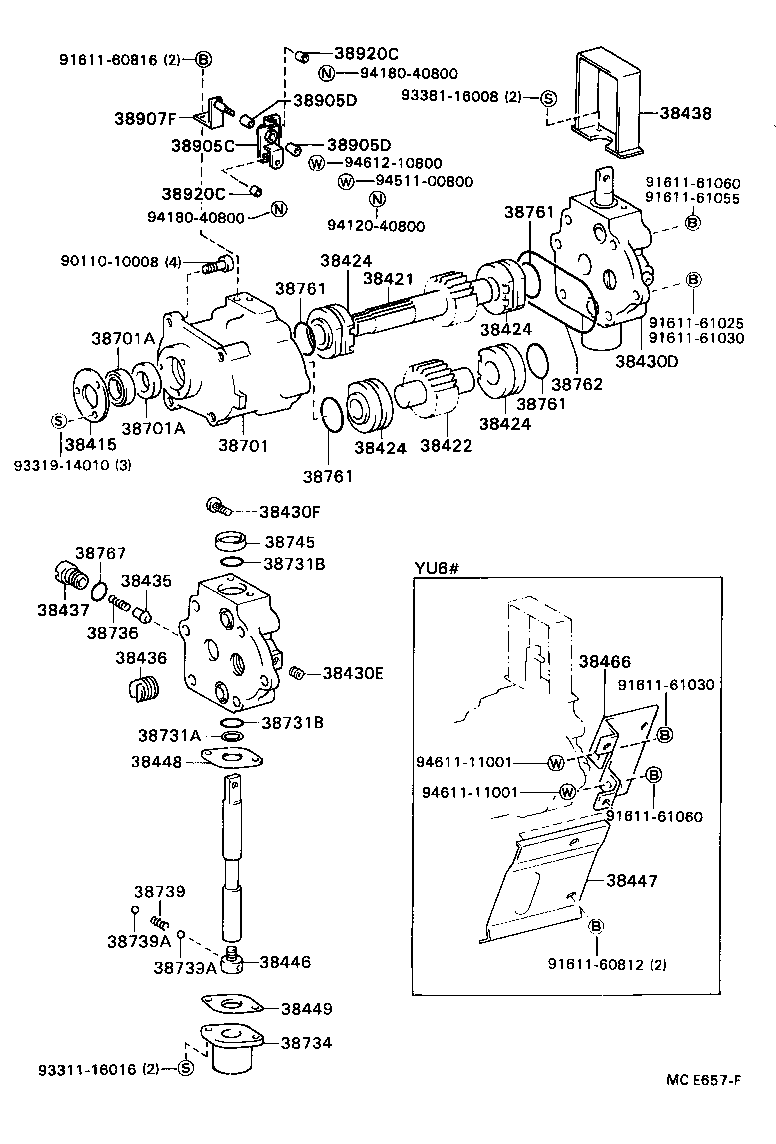

(8808-9109)BU66,67..DMP..5F ; (9109- )DM3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38415 - COVER, POWER OIL PUMP SEAL | ||||
| 38415-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38421 - GEAR, POWER OIL PUMP DRIVE | ||||
| 38421-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38421-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38422 - GEAR, POWER OIL PUMP FOLLOW | ||||
| 38422-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38422-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38430D - VALVE ASSY, POWER CONTROL | ||||
| 38430-96302 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38430-96301 |
BU66,67..DMP..5F |
1 | ||
| 38430E - PLUG (FOR POWER CONTROL VALVE) | ||||
| 90344-51006 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38430F - BOLT, SERRATION (FOR OIL PUMP SHAFT) | ||||
| 90114-08025 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38435 - VALVE, POWER CONTROL CHECK, NO.1 | ||||
| 38435-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38436 - VALVE, POWER CONTROL CHECK, NO.2 | ||||
| 38436-96301 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38436-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38437 - PLUG, POWER CONTROL CHECK VALVE | ||||
| 38437-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38437-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38438 - COVER, VALVE CONTROL PLUNGER | ||||
| 38438-96302 |
BU67..DMP..5F;BU66..DM2,DM3,DM5 |
1 | ||
| 38446 - STOPPER, POWER CONTROL DETENTION SPRING | ||||
| 38446-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38448 - HOLDER, POWER CONTROL PLUNGER COVER | ||||
| 38448-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38449 - GASKET, POWER CONTROL PLUNGER COVER | ||||
| 38449-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38701 - BODY SUB-ASSY, OIL PUMP | ||||
| 38411-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38701A - SEAL, OIL (FOR OIL PUMP BODY) | ||||
| 90311-22008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾘﾔ |
1 | ||
| 90311-22004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾌﾛﾝﾄ |
1 | ||
| 38701A - SEAL, OIL (FOR OIL PUMP BODY) | ||||
| 90311-22008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾘﾔ |
1 | ||
| 90311-22004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾌﾛﾝﾄ |
1 | ||
| 38731A - RING, O (FOR PLUNGER NO.1) | ||||
| 90562-18005 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 90562-18005 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38734 - COVER, PLUNGER | ||||
| 38441-96301 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38736 - SPRING, CHECK VALVE | ||||
| 90501-04017 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL | ||||
| 90501-08069 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38739A - BALL, PLUNGER NEUTRAL INDICATING | ||||
| 90360-05004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38739A - BALL, PLUNGER NEUTRAL INDICATING | ||||
| 90360-05004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38745 - SEAL, OIL (FOR PUMP CONTROL VALVE PLUNGER) | ||||
| 90304-17001 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38761 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38762 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 96711-31080 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38767 - RING, O (FOR CHECK VALVE SPRING) | ||||
| 90301-10005 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38905C - ARM SUB-ASSY, POWER TAKE-OFF CONTROL, NO.1 | ||||
| 38905-96303 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38905D - BUSH (FOR POWER TAKE-OFF CONTROL ARM) | ||||
| 90386-13007 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38905D - BUSH (FOR POWER TAKE-OFF CONTROL ARM) | ||||
| 90386-13007 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38907F - STAY SUB-ASSY, POWER TAKE-OFF CONTROL | ||||
| 38907-96301 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38920C - SPACER (FOR POWER TAKE-OFF CONTROL LEVER) | ||||
| 90560-08045 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38920C - SPACER (FOR POWER TAKE-OFF CONTROL LEVER) | ||||
| 90560-08045 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| Common parts | ||||
| 90110-10008 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61055 | ||||
| 91611-61060 | ||||
| 93311-16016 | ||||
| 93319-14010 | ||||
| 93381-16008 | ||||
| 94120-40800 | ||||
| 94180-40800 | ||||
| 94511-00800 | ||||
| 94611-11001 | ||||
| 94612-10800 | ||||

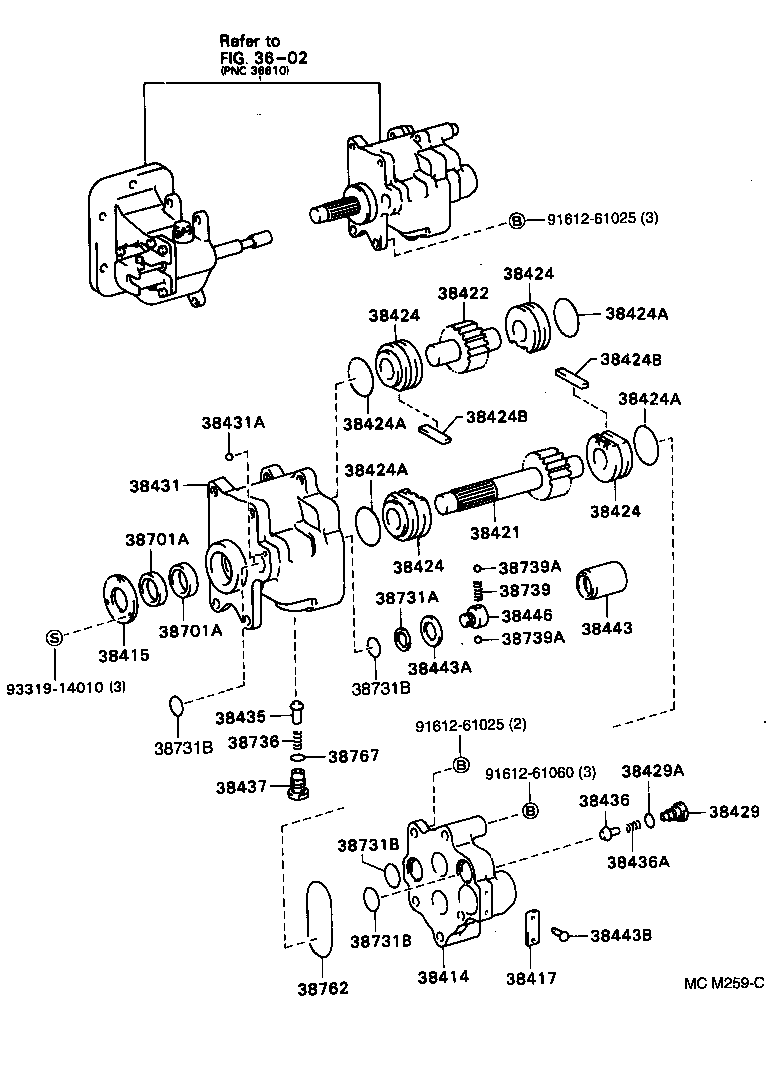

(9109- )BU67..DMP..5F ; (9109- )BU66,72..DM2,DM4,DM5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38414 - COVER, POWER OIL PUMP | ||||
| 38414-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38415 - COVER, POWER OIL PUMP SEAL | ||||
| 38415-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38417 - PLATE, POWER OIL PUMP NAME | ||||
| 38417-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38421 - GEAR, POWER OIL PUMP DRIVE | ||||
| 38421-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38421-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38422 - GEAR, POWER OIL PUMP FOLLOW | ||||
| 38422-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38422-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424 - BUSH, POWER OIL PUMP INNER | ||||
| 38424-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
4 | ||
| 38424A - RING, O (FOR POWER OIL PUMP) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424A - RING, O (FOR POWER OIL PUMP) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424A - RING, O (FOR POWER OIL PUMP) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424A - RING, O (FOR POWER OIL PUMP) | ||||
| 90301-33008 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
4 | ||
| 38424B - KEY, STRAIGHT (FOR POWER OIL PUMP) | ||||
| 90282-03012 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38424B - KEY, STRAIGHT (FOR POWER OIL PUMP) | ||||
| 90282-03012 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38429 - PLUG, POWER CONTROL CHECK VALVE NO.2 | ||||
| 38429-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38429A - RING, O (POWER CONTROL CHECK VALVE NO.2 PLUG) | ||||
| 96711-19010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38431 - BODY, POWER CONTROL VALVE | ||||
| 38431-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38431A - BALL (FOR POWER CONTROL VALVE) | ||||
| 90360-02001 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38435 - VALVE, POWER CONTROL CHECK, NO.1 | ||||
| 38435-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38436 - VALVE, POWER CONTROL CHECK, NO.2 | ||||
| 38436-96301 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38436-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38436A - SPRING, COMPRESSION (FOR POWER CONTROL CHECK NO.2 VALVE | ||||
| 90501-06075 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38437 - PLUG, POWER CONTROL CHECK VALVE | ||||
| 38437-36010 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38437-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38443 - SLEEVE, POWER CONTROL VALVE PLUNGER | ||||
| 38443-96300 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38443A - WASHER, PLATE (FOR POWER CONTROL VALVE PLUNGER SLEEVE) | ||||
| 90201-19012 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 38443B - RIVET, ROUND (FOR POWER CONTROL VALVE PLUNGER SLEEVE) | ||||
| 90260-02003 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
2 | ||
| 38446 - STOPPER, POWER CONTROL DETENTION SPRING | ||||
| 38446-96300 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38701A - SEAL, OIL (FOR OIL PUMP BODY) | ||||
| 90311-22008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾘﾔ |
1 | ||
| 90311-22004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾌﾛﾝﾄ |
1 | ||
| 38701A - SEAL, OIL (FOR OIL PUMP BODY) | ||||
| 90311-22008 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾘﾔ |
1 | ||
| 90311-22004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 ﾌﾛﾝﾄ |
1 | ||
| 38731A - RING, O (FOR PLUNGER NO.1) | ||||
| 90562-18005 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 |
1 | ||
| 90562-18005 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38731B - RING, O (FOR PLUNGER NO.2) | ||||
| 90301-17011 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=2.4 |
2 | ||
| 96711-24018 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 96711-24021 |
BU67..DMP..5F;BU66,72..DM2,DM4,DM5 OD=25.6 |
2 | ||
| 38736 - SPRING, CHECK VALVE | ||||
| 90501-04017 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL | ||||
| 90501-08069 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38739A - BALL, PLUNGER NEUTRAL INDICATING | ||||
| 90360-05004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38739A - BALL, PLUNGER NEUTRAL INDICATING | ||||
| 90360-05004 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
2 | ||
| 38762 - RING, O (FOR OIL PUMP INNER BUSH) | ||||
| 96711-31080 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| 38767 - RING, O (FOR CHECK VALVE SPRING) | ||||
| 90301-10005 |
BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5 |
1 | ||
| Common parts | ||||
| 91612-61025 | ||||
| 91612-61060 | ||||
| 93319-14010 | ||||
| Linked diagrams | ||||
| 3602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
