Toyota Dyna/toyoace BU67 HOIST CYLINDER TRUNNION & LIFT ARM

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BU67D-MDST (1988)
3606 - HOIST CYLINDER TRUNNION & LIFT ARM

BU67D-MDST (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808-9210)BU66,67..DM1,DM2,DM4,DM5..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty
38461 - HOSE, POWER OIL PUMP SUCTION
38461-96304	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
38461-96308	BU67..DMP..5F..CBU	10/1989 - 09/1991	1
38461-93102	BU67..DMP..5F..CBU	09/1991 - 10/1992	1
38461-93103	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38461 - HOSE, POWER OIL PUMP SUCTION
38461-96304	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
38461-96308	BU67..DMP..5F..CBU	10/1989 - 09/1991	1
38461-93102	BU67..DMP..5F..CBU	09/1991 - 10/1992	1
38461-93103	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-37002	BU67..DM4..CBU	08/1988 - 08/1990	2
90460-44002	BU67..DM4..CBU	08/1990 - 10/1992	2
90460-44002	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-37002	BU67..DM4..CBU	08/1988 - 08/1990	2
90460-44002	BU67..DM4..CBU	08/1990 - 10/1992	2
90460-44002	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38462 - HOSE, POWER OIL PUMP DELIVERY
38462-96308	BU67..DMP..5F..CBU	10/1989 - 09/1991	1
38462-96304	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
38462-96309	BU67..DMP..5F..CBU	09/1991 - 10/1992	1
38462-93103	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38701B - ARM SUB-ASSY, LIFT
38701-96309	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	05/1990 - 05/1995	1
38701-96309	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	11/1989 - 05/1990	1
38701-96305	BU66,67..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 11/1989	1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96304	BU66,67..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	1
38703B - ARM SUB-ASSY, TENSION
38703-96302	BU67..DMP..CBU	08/1988 - 05/1995	2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304	BU67..DMP..CBU	08/1988 - 05/1995	2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304	BU67..DMP..CBU	08/1988 - 05/1995	2
38707C - UNION (FOR SUCTION HOSE)
90407-26001	BU67..DMP..5F;BU66,72..DM2,DM4,DM5	10/1992 - 05/1995	1
90407-26001	BU66,67..DMP..5F..CBU	08/1988 - 10/1989	1
90407-80001	BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5	10/1989 - 10/1992	1
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308	BU67..DMP..CBU	08/1988 - 05/1995	2
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308	BU67..DMP..CBU	08/1988 - 05/1995	2
38708C - UNION (FOR DELIVERY HOSE)
90404-26002	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
90404-79001	BU67..DMP..5F;BU72..DMP..CBU	10/1989 - 09/1991	1
90407-79001	BU67..DMP..5F;BU66..DM2,DM3,DM5	09/1991 - 10/1992	1
90407-21001	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..CBU HOIST CYLINDER SIDE	10/1992 - 05/1995	1
90407-79001	BU66..DM2,DM3;BU66..DM5..CBU;BU66..TOY..DM5..IV3;BU67,72..(DM1,DM4,DM5)..5F POWER TAKE-OFF ASSY SIDE	10/1992 - 05/1995	1
38709D - BRACKET SUB-ASSY, LIFT ARM
38709-96304	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	2
38741A - TRUNNION, HOIST CYLINDER
38741-96302	BU67..DMP..CBU	08/1990 - 10/1992	1
38741-96302	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38741-96302	BU67..DMP..5F..CBU	08/1988 - 08/1990	1
38753A - PIN, CROSSHEAD
38753-96303	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	1
38806A - BUSH, TENSION ARM HEAD
90384-35005	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	4
38882 - BUSH, TRUNNION
38882-96304	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	08/1988 - 05/1995	2
38892A - BUSH (FOR LINK ARM BODY BRACKET)
90384-35004	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	08/1988 - 05/1995	4
Common parts
90101-12171
90101-14026
90101-18003
90170-18002
90201-21005
90949-01277
91162-51640
91611-60816
91611-61025
94115-51400
94146-42000
94512-01200
94512-01600
94612-11400
94612-11800
95381-04045
96451-00600
96456-00609

(9210- )BU66,67,72..DM1,DM2,DM4,DM5..5F

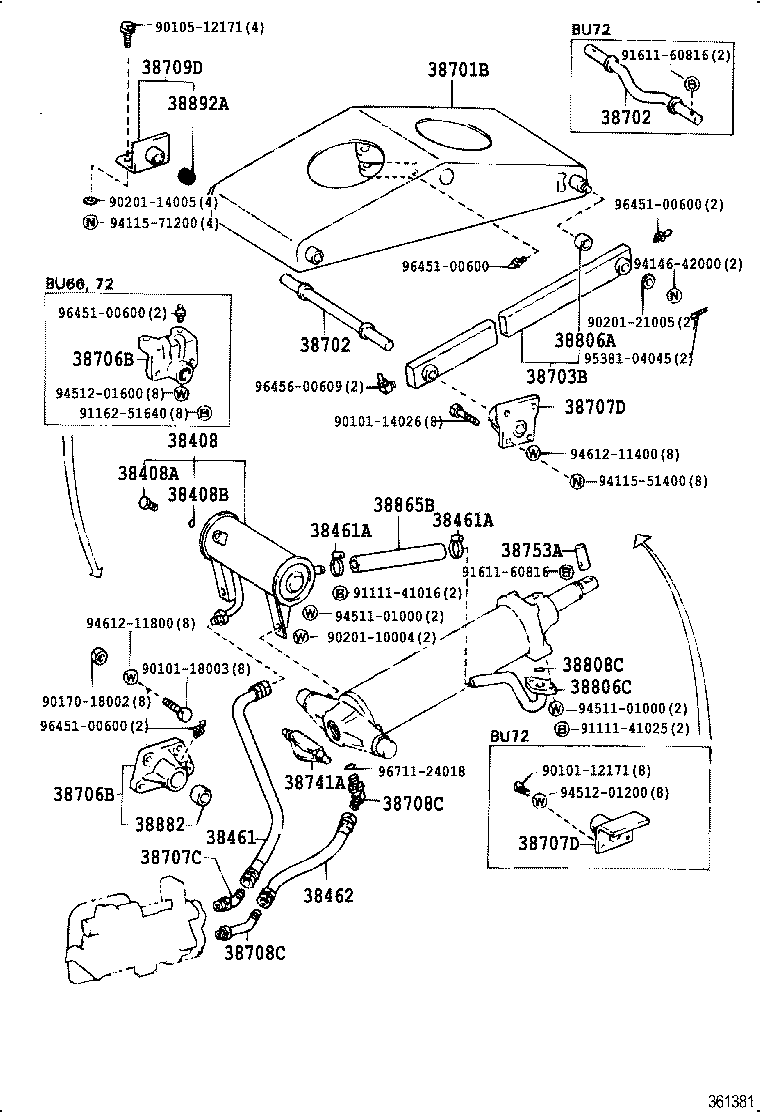

Click highlighted areas on diagram

Part #	Description	Period	Qty
38408 - TANK SUB-ASSY, POWER
38408-93100	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..5F..CBU	10/1992 - 05/1995	1
38408A - PLUG (FOR POWER TANK)
90341-20001	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38408B - RING, O (FOR POWER TANK PLUG)
90301-21007	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38461 - HOSE, POWER OIL PUMP SUCTION
38461-96304	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
38461-96308	BU67..DMP..5F..CBU	10/1989 - 09/1991	1
38461-93102	BU67..DMP..5F..CBU	09/1991 - 10/1992	1
38461-93103	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-37002	BU67..DM4..CBU	08/1988 - 08/1990	2
90460-44002	BU67..DM4..CBU	08/1990 - 10/1992	2
90460-44002	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38461A - CLAMP (FOR POWER OIL PUMP SUCTION)
90460-37002	BU67..DM4..CBU	08/1988 - 08/1990	2
90460-44002	BU67..DM4..CBU	08/1990 - 10/1992	2
90460-44002	BU66..DYN..DM5;BU72..DMP..CBU;BU66,67..(DM1,DM2,DM3,DM4)..CBU	10/1992 - 05/1995	2
38462 - HOSE, POWER OIL PUMP DELIVERY
38462-96308	BU67..DMP..5F..CBU	10/1989 - 09/1991	1
38462-96304	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
38462-96309	BU67..DMP..5F..CBU	09/1991 - 10/1992	1
38462-93103	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38701B - ARM SUB-ASSY, LIFT
38701-96309	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	05/1990 - 05/1995	1
38701-96309	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	11/1989 - 05/1990	1
38701-96305	BU66,67..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 11/1989	1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96304	BU66,67..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96304	BU66,67..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	1
38703B - ARM SUB-ASSY, TENSION
38703-96302	BU67..DMP..CBU	08/1988 - 05/1995	2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304	BU67..DMP..CBU	08/1988 - 05/1995	2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304	BU67..DMP..CBU	08/1988 - 05/1995	2
38707C - UNION (FOR SUCTION HOSE)
90407-26001	BU67..DMP..5F;BU66,72..DM2,DM4,DM5	10/1992 - 05/1995	1
90407-26001	BU66,67..DMP..5F..CBU	08/1988 - 10/1989	1
90407-80001	BU67..DMP..5F;BU66,72..DM2,DM3,DM4,DM5	10/1989 - 10/1992	1
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308	BU67..DMP..CBU	08/1988 - 05/1995	2
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308	BU67..DMP..CBU	08/1988 - 05/1995	2
38708C - UNION (FOR DELIVERY HOSE)
90404-26002	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
90404-79001	BU67..DMP..5F;BU72..DMP..CBU	10/1989 - 09/1991	1
90407-79001	BU67..DMP..5F;BU66..DM2,DM3,DM5	09/1991 - 10/1992	1
90407-21001	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..CBU HOIST CYLINDER SIDE	10/1992 - 05/1995	1
90407-79001	BU66..DM2,DM3;BU66..DM5..CBU;BU66..TOY..DM5..IV3;BU67,72..(DM1,DM4,DM5)..5F POWER TAKE-OFF ASSY SIDE	10/1992 - 05/1995	1
38708C - UNION (FOR DELIVERY HOSE)
90404-26002	BU67..DMP..5F..CBU	08/1988 - 10/1989	1
90404-79001	BU67..DMP..5F;BU72..DMP..CBU	10/1989 - 09/1991	1
90407-79001	BU67..DMP..5F;BU66..DM2,DM3,DM5	09/1991 - 10/1992	1
90407-21001	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..CBU HOIST CYLINDER SIDE	10/1992 - 05/1995	1
90407-79001	BU66..DM2,DM3;BU66..DM5..CBU;BU66..TOY..DM5..IV3;BU67,72..(DM1,DM4,DM5)..5F POWER TAKE-OFF ASSY SIDE	10/1992 - 05/1995	1
38709D - BRACKET SUB-ASSY, LIFT ARM
38709-96304	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	2
38741A - TRUNNION, HOIST CYLINDER
38741-96302	BU67..DMP..CBU	08/1990 - 10/1992	1
38741-96302	BU67..DMP..5F..CBU	10/1992 - 05/1995	1
38741-96302	BU67..DMP..5F..CBU	08/1988 - 08/1990	1
38753A - PIN, CROSSHEAD
38753-96303	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	1
38806A - BUSH, TENSION ARM HEAD
90384-35005	BU66,67,72..(DM1,DM2,DM4,DM5)..CBU	08/1988 - 05/1995	4
38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1
38806-93103	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..CBU	10/1992 - 05/1995	1
38808C - RING, O (FOR HOIST CYLINDER SUCTION)
90301-29009	BU66..DYN..DM5;BU72..(DM4,DM5)..CBU;BU66,67..(DM1,DM2,DM4)..CBU	10/1992 - 05/1995	1
38865B - HOSE, HOIST CYLINDER SUCTION
38865-93100	BU66..DYN..DM5;BU67..DMP..CBU;BU66..DYN..DM2..CBU	10/1992 - 05/1995	1
38882 - BUSH, TRUNNION
38882-96304	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	08/1988 - 05/1995	2
38892A - BUSH (FOR LINK ARM BODY BRACKET)
90384-35004	BU66,67,72..(DM1,DM2,DM4,DM5)..5F..CBU	08/1988 - 05/1995	4
Common parts
90101-12171
90101-14026
90101-18003
90105-12171
90170-18002
90201-10004
90201-14005
90201-21005
91111-41016
91111-41025
91162-51640
91611-60816
94115-51400
94115-71200
94146-42000
94511-01000
94512-01200
94512-01600
94612-11400
94612-11800
95381-04045
96451-00600
96456-00609
96711-24018

BU67D-MDST (1988)

(8808-9210)BU66,67..DM1,DM2,DM4,DM5..5F

(9210- )BU66,67,72..DM1,DM2,DM4,DM5..5F
