BU67D-MDKT (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )BU66,67,72..DMP

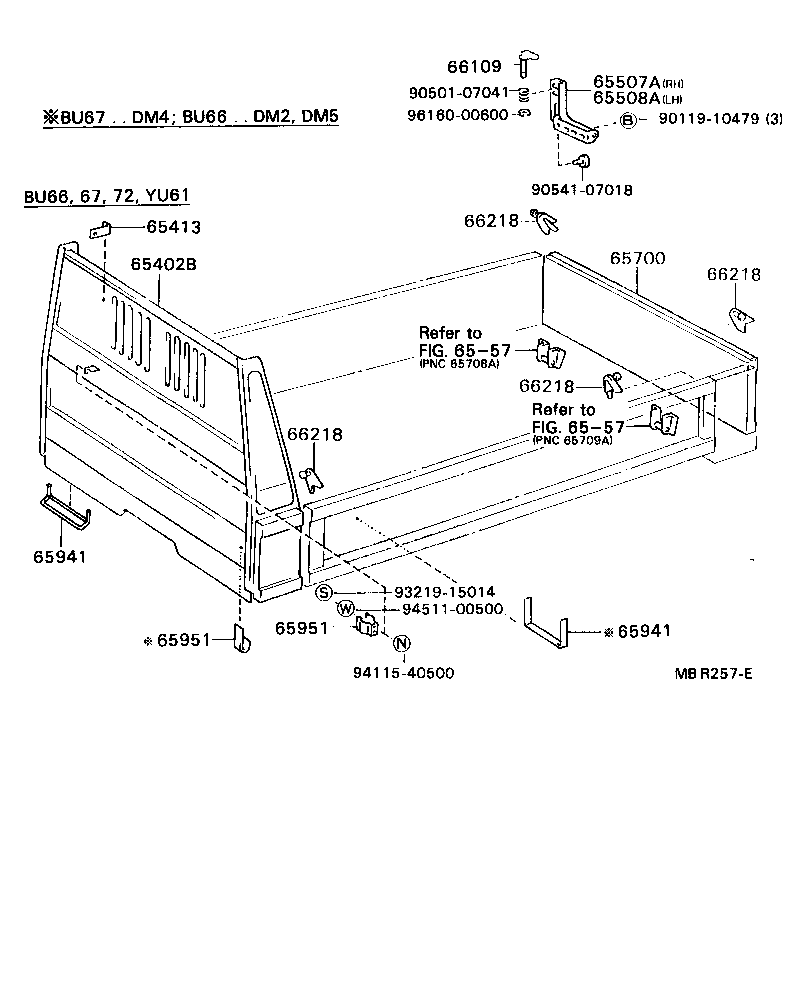

Click highlighted areas on diagram

diagram 65402B 65413 65507A 65508A 6557 6557 65700 65941 65941 65951 65951 66109 66218 66218 66218 66218 9011910479 9050107041 9054107018 9321915014 9411540500 9451100500 9616000600
Part # Description Qty Price
65402B - FRAME SUB-ASSY, REAR BODY
66209-93101

BU67..DM1

 1
65413 - BRACKET, GUARD FRAME
65413-93101

BU67,72..(DM1,DM5)..CBU

 1
65413-93101

BU67..DM1;BU72..DMP..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65701-93105

BU66,67..(DM1,DM2,DM4)..CBU

 1
65701-93112

BU67..DMP..CBU

 1
65701-93110

BU72..DM5..CBU;BU66,67..(DM1,DM2,DM4,DM5)..CBU

 1
65941 - STOPPER, SHOVEL
65941-93102

BU67..DM1;BU72..(DM4,DM5)..CBU

 1
65941 - STOPPER, SHOVEL
65941-93102

BU67..DM1;BU72..(DM4,DM5)..CBU

 1
65951 - CLAMP, SHOVEL
65941-93103

BU67..DM1;BU72..(DM4,DM5)..CBU

 1
65951 - CLAMP, SHOVEL
65941-93103

BU67..DM1;BU72..(DM4,DM5)..CBU

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 1
66266-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 1
66266-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 1
66266-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 1
66218 - BRACKET, TAIL GATE LATCH PIN
66267-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

左側

 1
66266-93100

BU66,67,72..(DM1,DM2,DM4,DM5)..CBU

右側

 1
Common parts
90119-10479
90501-07041
90541-07018
93219-15014
94115-40500
94511-00500
96160-00600
Linked diagrams
6557
