BU64D-MDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )B

Click highlighted areas on diagram

diagram 23300A 23300B 23300C 23300C 23300C 23300C 23301A 23301A 23303 23319 23319 23322 23322A 23338 23921 8401 9017908146 9165160835 9165540825
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
90099-18010

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54071

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
Common parts
90179-08146
91651-60835
91655-40825
Linked diagrams
8401

(8409- )11B,13B#

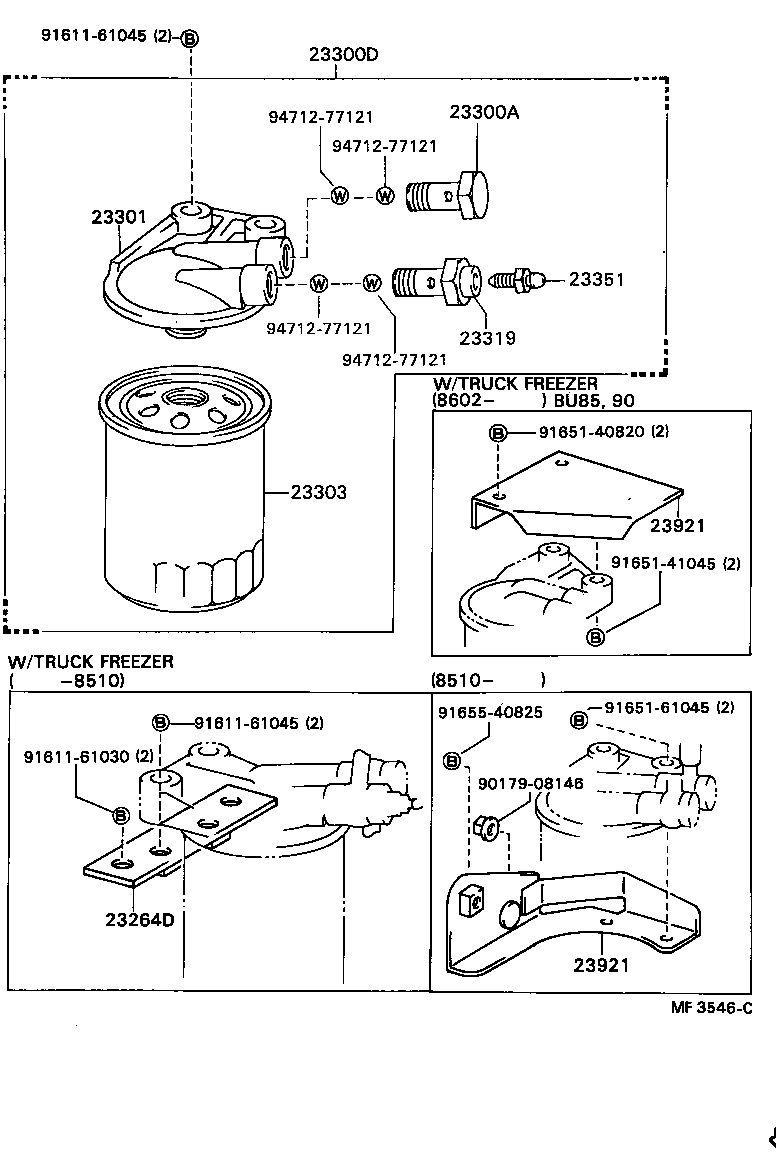

Click highlighted areas on diagram

diagram 23264D 23300A 23300D 23301 23303 23319 23351 23921 23921 9017908146 9161161030 9161161045 9161161045 9165140820 9165141045 9165161045 9165540825 9471277121 9471277121 9471277121 9471277121
Part # Description Qty Price
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90401-14060

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
90099-18010

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-56080

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23301 - BODY SUB-ASSY, FUEL FILTER
23311-56070

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-54071

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23319 - SCREW, FUEL PIPE FOLLOW
23319-48010

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
23351 - PLUG, AIR VENT
47547-12030

11B,13B#..BU61,62,64,77,81,82,85,9#

 1
Common parts
90179-08146
91611-61030
91611-61045
91651-40820
91651-41045
91651-61045
91655-40825
94712-77121
