BU64D-MDSTJ (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST ; (8708- )BU85..V ; (8708- )BU62..275,30T ; (8708- )BU8#,90,

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93100

BU64..DM4..CBU

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-93100

BU64..DM4..CBU

 1
Common parts
91611-60820
91651-40616

(8708- )DM3,DM4

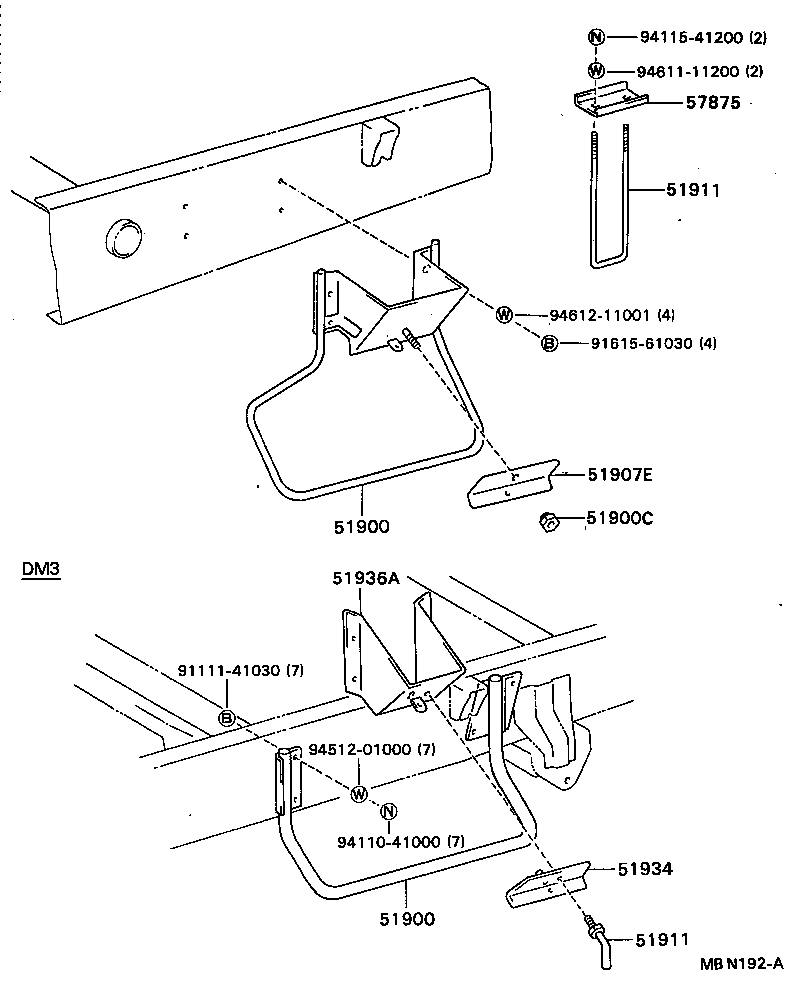

Click highlighted areas on diagram

diagram 51900 51900 51900C 51907E 51911 51911 51934 51936A 57875 9111141030 9161561030 9411041000 9411541200 9451201000 9461111200 9461211001
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93100

BU64..DM4..CBU

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-93100

BU64..DM4..CBU

 1
51900C - NUT, SPARE WHEEL, HUB
90942-01023

BU64..DM4..CBU

 1
51907E - RETAINER SUB-ASSY, SPARE TIRE CARRIER
51912-93100

BU64..DM4..CBU

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
90117-12011

BU64..DMP

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
90117-12011

BU64..DMP

 1
57875 - PLATE, U-BOLT
51875-95011

BU64..DMP

 1
Common parts
91111-41030
91615-61030
94110-41000
94115-41200
94512-01000
94611-11200
94612-11001

(8708- )BU64..DMP

Click highlighted areas on diagram

diagram 51900 51911 51933 51935 51943 51944 51948 57875 5842693100 9161561030 9411541200 9461111001 9461111200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93100

BU64..DM4..CBU

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
90117-12011

BU64..DMP

 1
57875 - PLATE, U-BOLT
51875-95011

BU64..DMP

 1
Common parts
58426-93100
91615-61030
94115-41200
94611-11001
94611-11200
