BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DMP

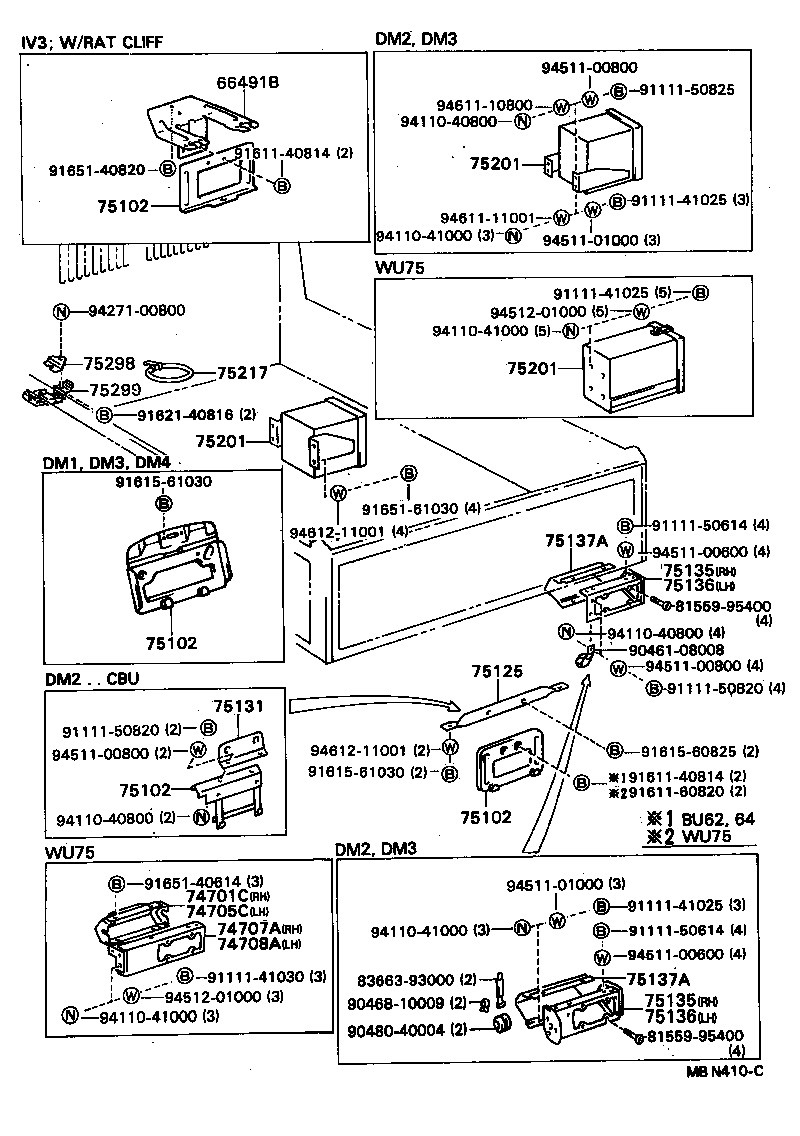

Click highlighted areas on diagram

diagram 66491B 74701C 74705C 74707A 74708A 75102 75102 75102 75102 75125 75131 75135 75135 75136 75136 75137A 75137A 75201 75201 75201 75217 75298 75299 8155995400 8155995400 8366393000 9046108008 9046810009 9048040004 9111141025 9111141025 9111141025 9111141030 9111150614 9111150614 9111150820 9111150820 9111150825 9161140814 9161140814 9161160820 9161560825 9161561030 9161561030 9162140816 9165140614 9165140820 9165161030 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9427100800 9451100600 9451100600 9451100800 9451100800 9451100800 9451101000 9451101000 9451201000 9451201000 9461110800 9461111001 9461211001 9461211001
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

BU93,95;BU82..(T2,T4)..IV3;BU62,64..DM1,DM3,DM4;BU80,81,85,90,98..IV3;BU85,90..(T3,TW1)..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

BU93,95;BU82..(T2,T4)..IV3;BU62,64..DM1,DM3,DM4;BU80,81,85,90,98..IV3;BU85,90..(T3,TW1)..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

BU93,95;BU82..(T2,T4)..IV3;BU62,64..DM1,DM3,DM4;BU80,81,85,90,98..IV3;BU85,90..(T3,TW1)..CBU

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
75102-92800

BU93,95;BU82..(T2,T4)..IV3;BU62,64..DM1,DM3,DM4;BU80,81,85,90,98..IV3;BU85,90..(T3,TW1)..CBU

 1
75125 - STAY, REAR LICENCE PLATE
75125-93102

BU64..DMP

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-93100

BU64..DMP..CBU

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-93100

BU64..DMP..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75106-93100

BU64..DMP..CBU

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75106-93100

BU64..DMP..CBU

 1
75137A - COVER COMBINATION
75137-93100

BU62..DMP;BU64..DMP..CBU

 2
75137A - COVER COMBINATION
75137-93100

BU62..DMP;BU64..DMP..CBU

 2
75201 - BOX SUB-ASSY, TOOL W/STAY
75021-93102

BU64..DMP

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75021-93102

BU64..DMP

 1
75201 - BOX SUB-ASSY, TOOL W/STAY
75021-93102

BU64..DMP

 1
75217 - BAND, TOOL BAG
58705-95A01

BU6#,8#,9#..CBU,IV3

 1
75298 - PLATE, JACK HOLDER
75298-95400

BU85..03S;BU6#,70,80,81,82,93,98..DM1,DM2,DM3,DM4,HRF,SRF,T1,T2,T3,T4

 1
75299 - BASE, JACK HOLDER
75299-95400

BU60,62,64,82..(DM1,DM3,DM4,T3)..WT

 1
Common parts
81559-95400
83663-93000
90461-08008
90468-10009
90480-40004
91111-41025
91111-41030
91111-50614
91111-50820
91111-50825
91611-40814
91611-60820
91615-60825
91615-61030
91621-40816
91651-40614
91651-40820
91651-61030
94110-40800
94110-41000
94271-00800
94511-00600
94511-00800
94511-01000
94512-01000
94611-10800
94611-11001
94612-11001
