BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DM1,DM2,DM4

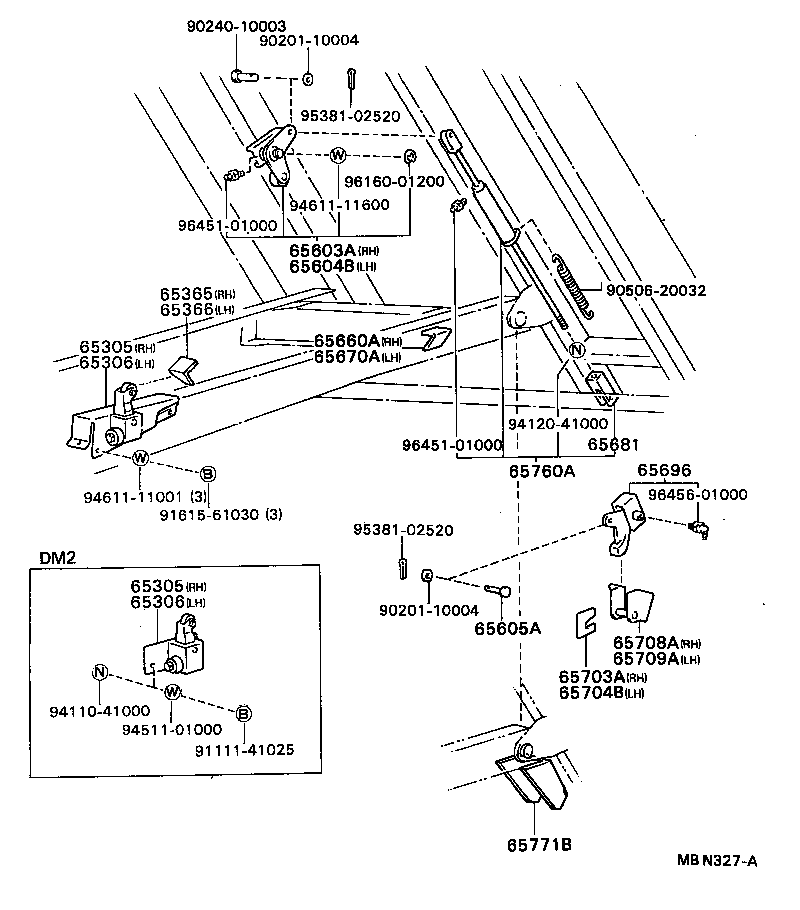

Click highlighted areas on diagram

diagram 65305 65305 65306 65306 65365 65366 65603A 65604B 65605A 65660A 65670A 65681 65696 65703A 65704B 65708A 65709A 65760A 65771B 9020110004 9020110004 9024010003 9050620032 9111141025 9161561030 9411041000 9412041000 9451101000 9461111001 9461111600 9538102520 9538102520 9616001200 9645101000 9645101000 9645601000
Part # Description Qty Price
65305 - LOCK SUB-ASSY, BEZEL, RH
65305-93108

BU64..DM1

 1
65305 - LOCK SUB-ASSY, BEZEL, RH
65305-93108

BU64..DM1

 1
65306 - LOCK SUB-ASSY, BEZEL, LH
65306-93108

BU64..DM1

 1
65306 - LOCK SUB-ASSY, BEZEL, LH
65306-93108

BU64..DM1

 1
65365 - GUIDE, VESSEL LOCK, RH
65365-93101

BU64..DMP..CBU

 1
65366 - GUIDE, VESSEL LOCK,
65366-93101

BU64..DMP..CBU

 1
65603A - ARM ASSY, TAIL GATE LOCK ROLLER, RH
65603-93102

BU62,64..(DM1,DM2,DM4)..CBU

 1
65604B - ARM ASSY, TAIL GATE LOCK ROLLER, LH
65604-93102

BU62,64..(DM1,DM2,DM4)..CBU

 1
65605A - PIN, TAIL GATE LOCK LINK
90240-10004

BU62,64..(DM1,DM2,DM4)..CBU

 2
65660A - GUIDE, ROLLER
65661-93102

BU64..DMP..CBU

 1
65670A - GUIDE, ROLLER
65661-93102

BU64..DMP..CBU

 1
65681 - END, TAIL GATE LOCK LINK
65681-93103

BU62,64..(DM1,DM2,DM4)..CBU

 1
65696 - LATCH, TAIL GATE LOCK
65790-93101

BU62,64..DMP..CBU

左側

 1
65780-93101

BU62,64..DMP..CBU

右側

 1
65703A - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, RH
65703-93100

BU62,64..DMP..CBU

 1
65704B - GUIDE SUB-ASSY, TAIL GATE LOCK HINGE, LH
65704-93104

BU62,64..DMP..CBU

 1
65708A - BAR SUB-ASSY, TAIL GATE LOCK, RH
65708-93103

BU64..DMP..CBU

 1
65709A - BAR SUB-ASSY, TAIL GATE LOCK, LH
65709-93101

BU64..DMP..CBU

 1
65760A - CONTROL SUB-ASSY, TAIL GATE
65760-93101

BU64..DMP..CBU

 2
Common parts
90201-10004
90240-10003
90506-20032
91111-41025
91615-61030
94110-41000
94120-41000
94511-01000
94611-11001
94611-11600
95381-02520
96160-01200
96451-01000
96456-01000
