BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DM1,DM2,DM4

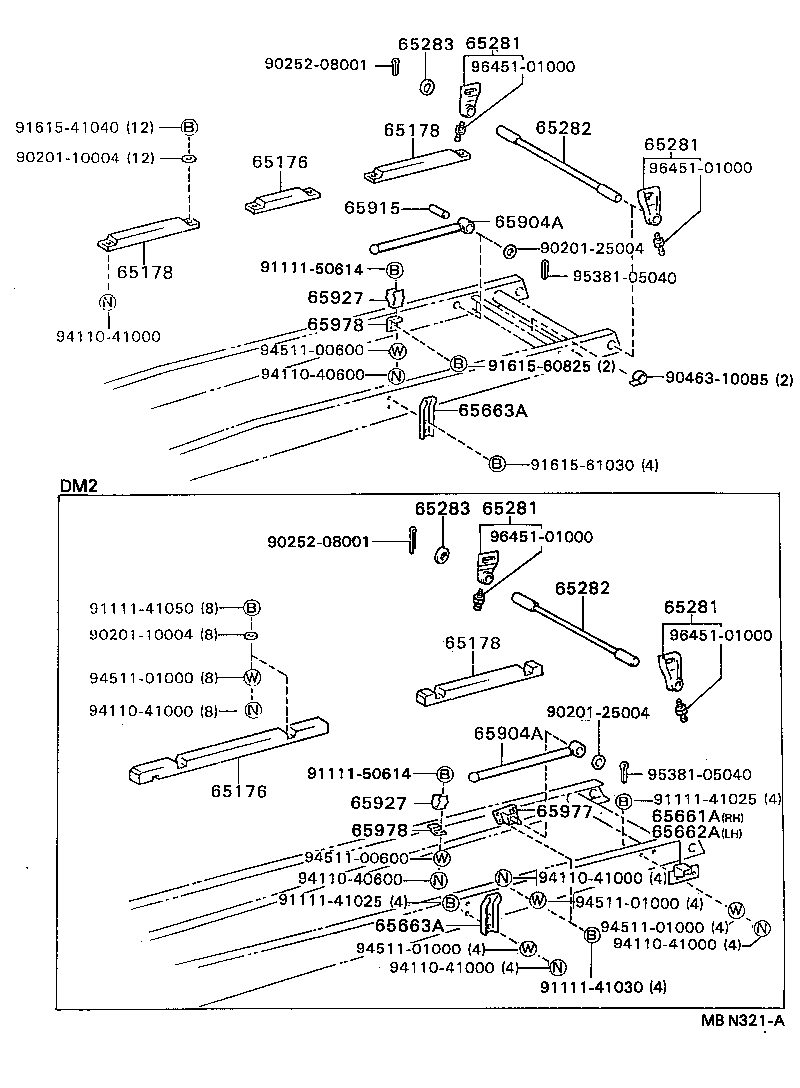

Click highlighted areas on diagram

diagram 65176 65176 65178 65178 65178 65281 65281 65281 65281 65282 65282 65283 65283 65661A 65662A 65663A 65663A 65904A 65904A 65915 65927 65927 65977 65978 65978 9020110004 9020110004 9020125004 9020125004 9025208001 9025208001 9046310085 9111141025 9111141025 9111141030 9111141050 9111150614 9111150614 9161541040 9161560825 9161561030 9411040600 9411040600 9411041000 9411041000 9411041000 9411041000 9411041000 9451100600 9451100600 9451101000 9451101000 9451101000 9451101000 9538105040 9538105040 9645101000 9645101000 9645101000 9645101000
Part # Description Qty Price
65176 - SILL, BESSEL RAIL, FRONT
65176-93100

BU64..DMP..CBU

 2
65176 - SILL, BESSEL RAIL, FRONT
65176-93100

BU64..DMP..CBU

 2
65178 - SILL, BESSEL RAIL, REAR
65178-93100

BU64..DMP..CBU

 4
65178 - SILL, BESSEL RAIL, REAR
65178-93100

BU64..DMP..CBU

 4
65178 - SILL, BESSEL RAIL, REAR
65178-93100

BU64..DMP..CBU

 4
65281 - BRACKET, BEZEL HINGE
65281-93101

BU62,64..(DM1,DM2,DM4)..CBU

 2
65281 - BRACKET, BEZEL HINGE
65281-93101

BU62,64..(DM1,DM2,DM4)..CBU

 2
65281 - BRACKET, BEZEL HINGE
65281-93101

BU62,64..(DM1,DM2,DM4)..CBU

 2
65281 - BRACKET, BEZEL HINGE
65281-93101

BU62,64..(DM1,DM2,DM4)..CBU

 2
65282 - SHAFT, BEZEL HINGE
65206-93100

BU64..DMP..CBU

 1
65282 - SHAFT, BEZEL HINGE
65206-93100

BU64..DMP..CBU

 1
65283 - STOPPER, BEZEL HINGE SHAFT
65283-93102

BU62,64..(DM1,DM2,DM4)..CBU

 2
65283 - STOPPER, BEZEL HINGE SHAFT
65283-93102

BU62,64..(DM1,DM2,DM4)..CBU

 2
65663A - GUIDE, VESSEL
65663-93100

BU62,64..(DM1,DM2,DM4)..CBU

 2
65663A - GUIDE, VESSEL
65663-93100

BU62,64..(DM1,DM2,DM4)..CBU

 2
65904A - BAR SUB-ASSY, VESSEL STAND
65904-93100

BU64..DMP..CBU

 1
65904A - BAR SUB-ASSY, VESSEL STAND
65904-93100

BU64..DMP..CBU

 1
65915 - PIN, BEZEL STAND
65974-93100

BU64..DMP..CBU

 1
65927 - CLIP, BAR
90468-12008

BU62,64..(DM1,DM2,DM4)..CBU

 1
65927 - CLIP, BAR
90468-12008

BU62,64..(DM1,DM2,DM4)..CBU

 1
65978 - BRACKET, VESSEL STAND
65978-93100

BU62,64..(DM1,DM3,DM4)..CBU

 1
65978 - BRACKET, VESSEL STAND
65978-93100

BU62,64..(DM1,DM3,DM4)..CBU

 1
Common parts
90201-10004
90201-25004
90252-08001
90463-10085
91111-41025
91111-41030
91111-41050
91111-50614
91615-41040
91615-60825
91615-61030
94110-40600
94110-41000
94511-00600
94511-01000
95381-05040
96451-01000
