BU64D-MDKT (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )DMP

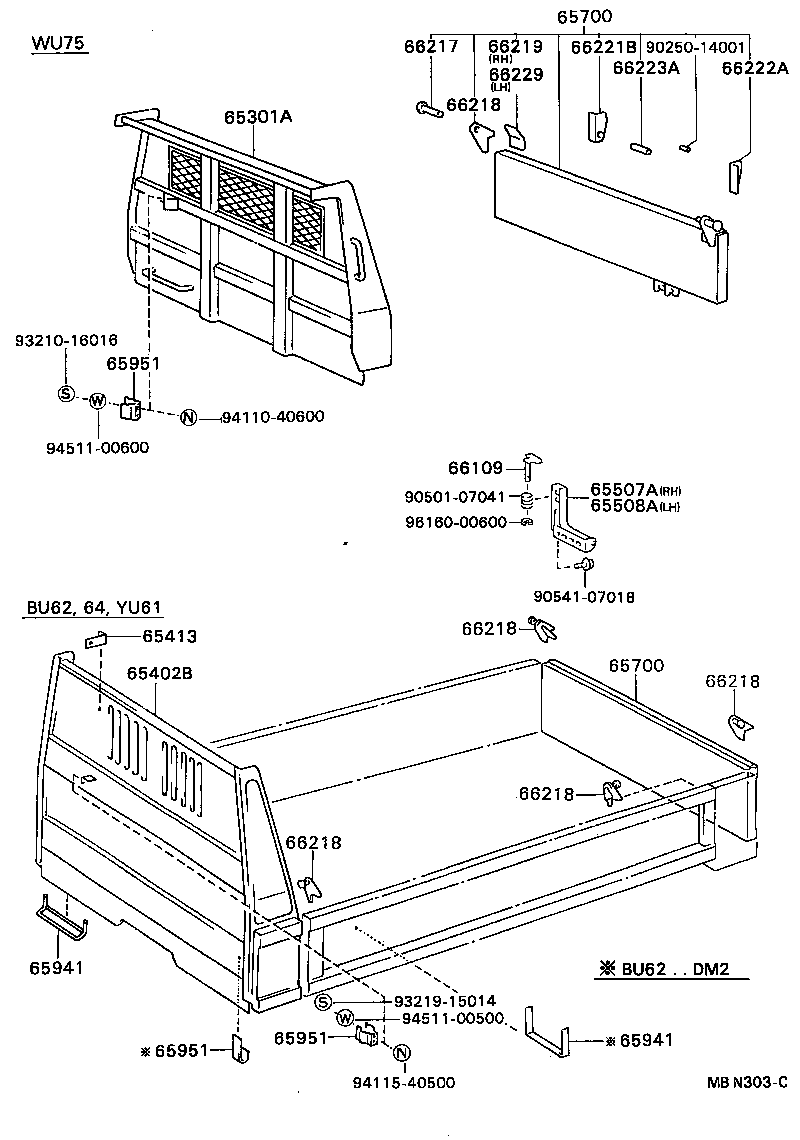

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65402B - FRAME SUB-ASSY, REAR BODY | ||||
| 66209-93101 |
BU64..DM1 |
1 | ||
| 65413 - BRACKET, GUARD FRAME | ||||
| 65413-93101 |
BU64..DM1 |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65701-93105 |
BU62,64..(DM1,DM2,DM4)..CBU |
1 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65701-93105 |
BU62,64..(DM1,DM2,DM4)..CBU |
1 | ||
| 65941 - STOPPER, SHOVEL | ||||
| 65941-93102 |
BU64..DM1 |
1 | ||
| 65941 - STOPPER, SHOVEL | ||||
| 65941-93102 |
BU64..DM1 |
1 | ||
| 65951 - CLAMP, SHOVEL | ||||
| 65941-93103 |
BU64..DM1 |
1 | ||
| 65951 - CLAMP, SHOVEL | ||||
| 65941-93103 |
BU64..DM1 |
1 | ||
| 65951 - CLAMP, SHOVEL | ||||
| 65941-93103 |
BU64..DM1 |
1 | ||
| 66218 - BRACKET, TAIL GATE LATCH PIN | ||||
| 66266-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 右側 |
1 | ||
| 66267-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 左側 |
1 | ||
| 66218 - BRACKET, TAIL GATE LATCH PIN | ||||
| 66266-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 右側 |
1 | ||
| 66267-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 左側 |
1 | ||
| 66218 - BRACKET, TAIL GATE LATCH PIN | ||||
| 66266-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 右側 |
1 | ||
| 66267-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 左側 |
1 | ||
| 66218 - BRACKET, TAIL GATE LATCH PIN | ||||
| 66266-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 右側 |
1 | ||
| 66267-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 左側 |
1 | ||
| 66218 - BRACKET, TAIL GATE LATCH PIN | ||||
| 66266-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 右側 |
1 | ||
| 66267-93100 |
BU62,64..(DM1,DM2,DM4)..CBU 左側 |
1 | ||
| Common parts | ||||
| 90250-14001 | ||||
| 90501-07041 | ||||
| 90541-07018 | ||||
| 93210-16016 | ||||
| 93219-15014 | ||||
| 94110-40600 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 96160-00600 | ||||
(9905-0406)BU400,410,BZU410,XZU382,40#,410,411,412..20T,295T,30T,35T..CBU,IV5 ; (02
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10155 | ||||
| 90148-80008 | ||||
| 90179-08024 | ||||
| 90179-08245 | ||||
| 90201-10159 | ||||
| 90501-07041 | ||||
| 90501-45024 | ||||
| 90541-06028 | ||||
| 90541-07018 | ||||
| 91511-B0814 | ||||
| 91642-81025 | ||||
| 93240-18012 | ||||
| 93560-14008 | ||||
| 93560-14014 | ||||
| 94184-01001 | ||||
| 94185-61000 | ||||
| 94612-11001 | ||||
| 94613-10800 | ||||
| 96160-00600 | ||||
