BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST ; (8708- )BU85..V ; (8708- )BU62..275,30T ; (8708- )BU8#,90,

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93101

BU64..DM1

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-93101

BU64..DM1

 1
51943 - BRACKET, SPARE WHEEL CARRIER, NO.1
65103-93100

BU64..DM1

 1
Common parts
91611-60820
91651-40616

(8708- )BU64..DMP

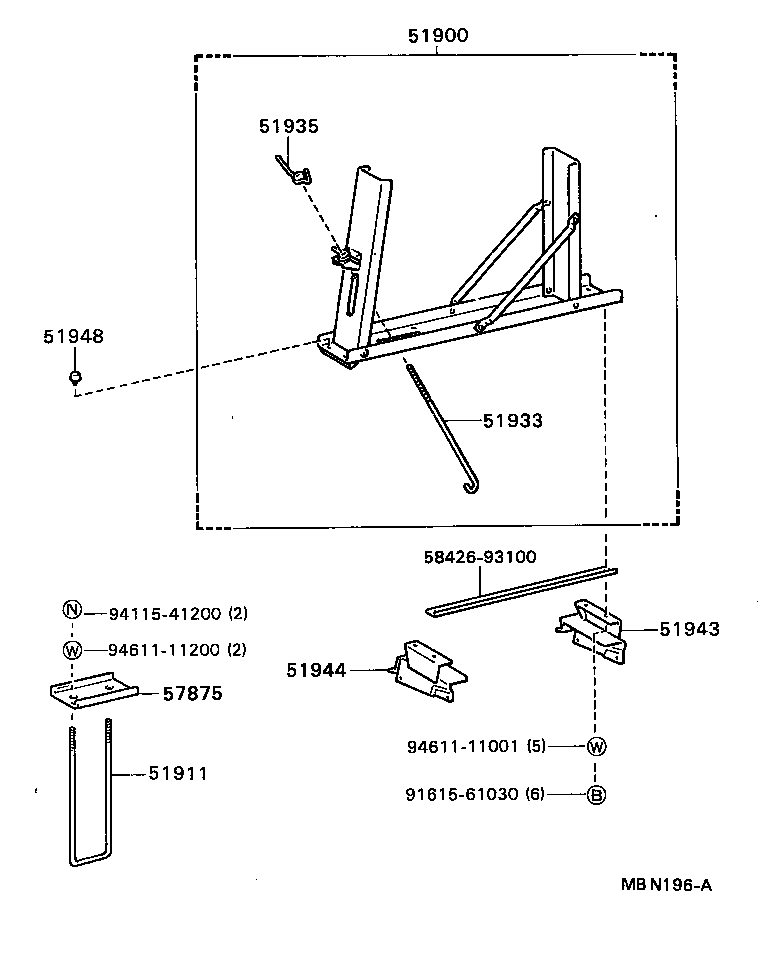

Click highlighted areas on diagram

diagram 51900 51911 51933 51935 51943 51944 51948 57875 5842693100 9161561030 9411541200 9461111001 9461111200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-93101

BU64..DM1

 1
51911 - BOLT ASSY, SPARE WHEEL MOUNTING
90117-12011

BU64..DMP

 1
51933 - BOLT, SPARE WHEEL CARRIER EYE
51933-93102

BU64..DM1

 1
51935 - NUT, SPARE WHEEL CARRIER EYE
51935-93110

BU64..DM1

 1
51943 - BRACKET, SPARE WHEEL CARRIER, NO.1
65103-93100

BU64..DM1

 1
51944 - BRACKET, SPARE WHEEL CARRIER, NO.2
65104-93100

BU64..DM1

 1
51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY
51948-93100

BU64..DM1

 3
57875 - PLATE, U-BOLT
51875-95011

BU64..DMP

 1
Common parts
58426-93100
91615-61030
94115-41200
94611-11001
94611-11200
