BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DM1,DM2,DM4

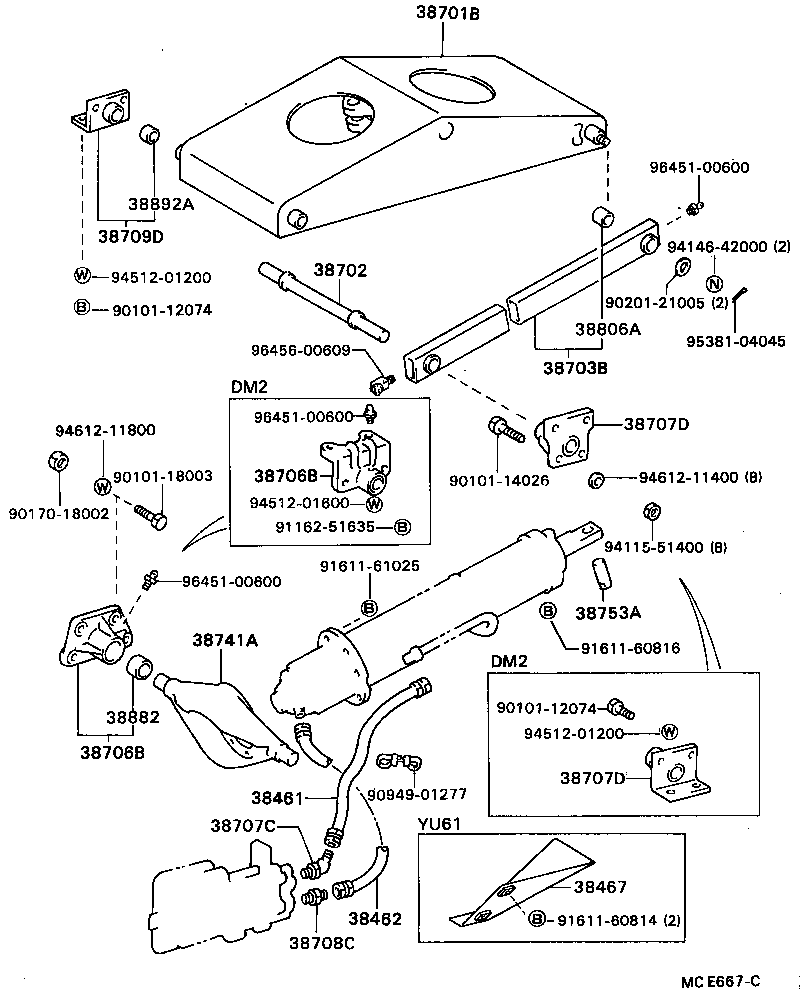

Click highlighted areas on diagram

diagram 38461 38462 38467 38701B 38702 38703B 38706B 38706B 38707C 38707D 38707D 38708C 38709D 38741A 38753A 38806A 38882 38892A 9010112074 9010112074 9010114026 9010118003 9017018002 9020121005 9094901277 9116251635 9161160814 9161160816 9161161025 9411551400 9414642000 9451201200 9451201200 9451201600 9461211400 9461211800 9538104045 9645100600 9645100600 9645100600 9645600609
Part # Description Qty Price
38461 - HOSE, POWER OIL PUMP SUCTION
38461-96304

BU64..DMP..CBU

 1
38462 - HOSE, POWER OIL PUMP DELIVERY
38462-96304

BU64..DMP..CBU

 1
38701B - ARM SUB-ASSY, LIFT
38701-96307

BU62,64..(DM1,DM2,DM4)..CBU

 1
38701-96305

BU62,64..(DM1,DM2,DM4)..CBU

 1
38702 - SHAFT SUB-ASSY, TENSION ARM
38702-96304

BU62,64..(DM1,DM2,DM4)..CBU

 1
38703B - ARM SUB-ASSY, TENSION
38703-96302

BU64..DMP..CBU

 2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304

BU64..DMP..CBU

 2
38706B - BRACKET SUB-ASSY, TRUNNION
38706-96304

BU64..DMP..CBU

 2
38707C - UNION (FOR SUCTION HOSE)
90407-26001

BU62,64..(DM1,DM2,DM4)..CBU

 1
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308

BU64..DMP..CBU

 2
38707D - BRACKET SUB-ASSY, TENSION ARM SHAFT
38707-96308

BU64..DMP..CBU

 2
38708C - UNION (FOR DELIVERY HOSE)
90404-26002

BU64..DMP..CBU

 1
38709D - BRACKET SUB-ASSY, LIFT ARM
38709-96304

BU62,64..(DM1,DM2,DM4)..CBU

 2
38741A - TRUNNION, HOIST CYLINDER
38741-96302

BU64..DMP..CBU

 1
38753A - PIN, CROSSHEAD
38753-96303

BU62,64..(DM1,DM2,DM4)..CBU

 1
38806A - BUSH, TENSION ARM HEAD
90384-35005

BU62,64..(DM1,DM2,DM4)..CBU

 4
38882 - BUSH, TRUNNION
38882-96304

BU62,64..(DM1,DM2,DM4)..CBU

 2
38892A - BUSH (FOR LINK ARM BODY BRACKET)
90384-35004

BU62,64..(DM1,DM2,DM4)..CBU

 2
Common parts
90101-12074
90101-14026
90101-18003
90170-18002
90201-21005
90949-01277
91162-51635
91611-60814
91611-60816
91611-61025
94115-51400
94146-42000
94512-01200
94512-01600
94612-11400
94612-11800
95381-04045
96451-00600
96456-00609
