BU64D-MDKT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8708- )BU6#,8#,90,93,98..DM1,DM2,DM4,T1,T2,T3,T4,TW2,TW4

Click highlighted areas on diagram

diagram 38901D 38902B 38902C 38902C 38903A 38908A 38946A 9161160616 9161160816 9161160816 9161160825 9161160825 9411040800 9451200800 9461210800
Part # Description Qty Price
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-96315

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-96310

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-13007

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38903A - BRACKET SUB-ASSY, VALVE CONTROL LEVER LOCK
38903-96309

BU64..DMP;BU62..DM2..CBU

 1
38908A - KNOB SUB-ASSY, CONTROL LEVER
38908-96304

BU64..DMP;BU62..DM2..CBU

 1
38946A - KNOB, VALVE LOCK LEVER
38946-96302

BU64..DMP;BU62..DM2..CBU

 1
Common parts
91611-60616
91611-60816
91611-60825
94110-40800
94512-00800
94612-10800

ILLUST NO. 2 OF 2(8708- )BU6#,80,81,82

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38907E 38920A 38930A 38947A 38961 38962 38982 38982 8271195410 9024908001 9046108047 9046108047 9046108047 9046108047 9046108047 9046108047 9046108047 9046108058 9046108058 9046108202 9161140820 9161160616 9161160616 9161160812 9161160812 9161160812 9161160816 9161160820 9161160820 9161160820 9161160820 9411040600 9411040600 9411040600 9451200600 9451200600 9616000600
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-96302

BU64..DMP;BU62..DM2..CBU

 1
38930A - CABLE ASSY, PUSH PULL
38930-96315

BU64..DMP

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96304

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
Common parts
82711-95410
90249-08001
90461-08047
90461-08058
90461-08202
91611-40820
91611-60616
91611-60812
91611-60816
91611-60820
94110-40600
94512-00600
96160-00600

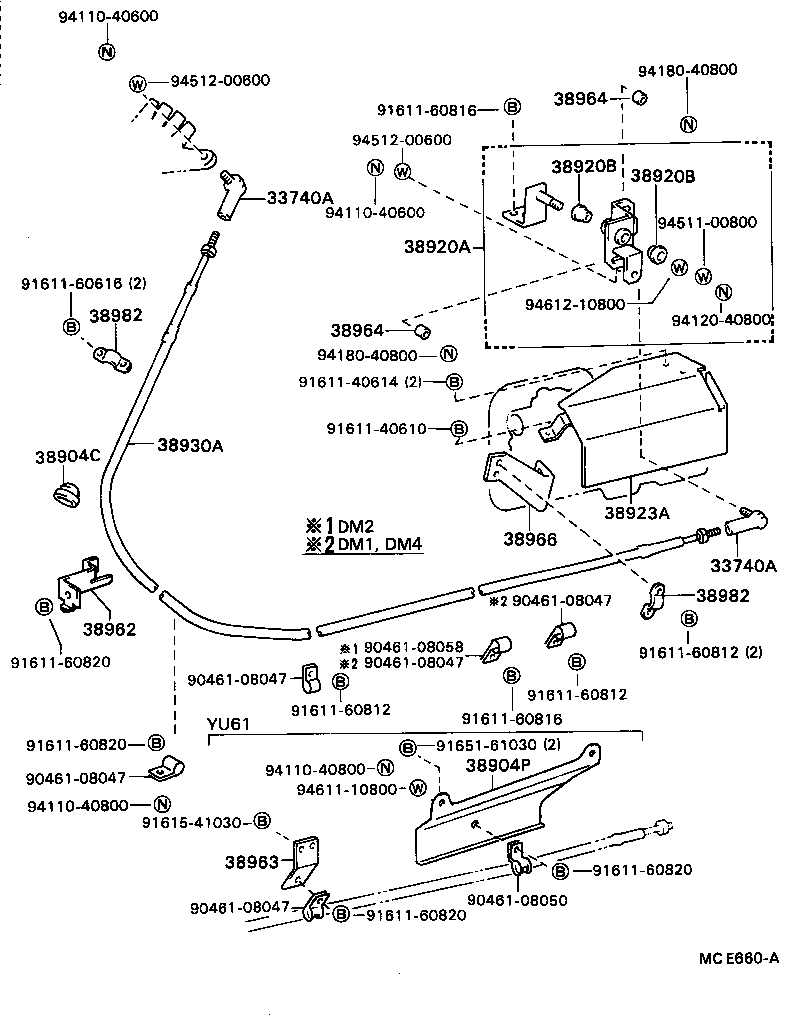

ILLUST NO. 2 OF 2(8708- )DM1,DM2,DM4

Click highlighted areas on diagram

diagram 33740A 33740A 38904C 38904P 38920A 38920B 38920B 38923A 38930A 38962 38963 38964 38964 38966 38982 38982 9046108047 9046108047 9046108047 9046108047 9046108047 9046108050 9046108058 9161140610 9161140614 9161160616 9161160812 9161160812 9161160812 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161541030 9165161030 9411040600 9411040600 9411040800 9411040800 9412040800 9418040800 9418040800 9451100800 9451200600 9451200600 9461110800 9461210800
Part # Description Qty Price
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
33740A - END ASSY, PUSH-PULL CONTROL CABLE
33740-96301

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38904C - GROMMET, PUSH PULL CABLE
90480-22013

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-96302

BU64..DMP;BU62..DM2..CBU

 1
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

BU64..DMP;BU62..DM2..CBU

 2
38920B - BUSH (FOR POWER TAKE-OFF CONTROL LEVER)
90386-13007

BU64..DMP;BU62..DM2..CBU

 2
38923A - PROTECTOR, POWER TAKE-OFF CONTROL
38923-96305

BU64..DMP;BU62..DMP..CBU

 1
38930A - CABLE ASSY, PUSH PULL
38930-96315

BU64..DMP

 1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-96304

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 1
38964 - COLLAR, CONTROL LEVER
90560-08045

BU64..DMP;BU62..DMP..CBU

 2
38964 - COLLAR, CONTROL LEVER
90560-08045

BU64..DMP;BU62..DMP..CBU

 2
38966 - BRACKET, CABLE CLAMP, NO.6
38966-96301

BU64..DMP;BU62..DM2..CBU

 1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302

BU64..DMP;BU62..(DM2,TW1)..(CBU,IV4)

 2
Common parts
90461-08047
90461-08050
90461-08058
91611-40610
91611-40614
91611-60616
91611-60812
91611-60816
91611-60820
91615-41030
91651-61030
94110-40600
94110-40800
94120-40800
94180-40800
94511-00800
94512-00600
94611-10800
94612-10800

ILLUST NO. 1 OF 3(8808-9008)BU67..4FC ; (8808- )BU66,88..4FC ;(8808- )BU87..4FC..CBU ; (8808-

Click highlighted areas on diagram

diagram 38906B 38907A 38907E 38908C 38920A 38920A 38927 38970 8271195410 8413 9010906043 9024910110 9046107033 9048040004 9052015002 9111160670 9161160610 9161160855 9161161025 9161161055 9411040600 9411041000 9412041000 9451100600 9451101000 9461111600 9616000900 9645101000
Part # Description Qty Price
Common parts
82711-95410
90109-06043
90249-10110
90461-07033
90480-40004
90520-15002
91111-60670
91611-60610
91611-60855
91611-61025
91611-61055
94110-40600
94110-41000
94120-41000
94511-00600
94511-01000
94611-11600
96160-00900
96451-01000
Linked diagrams
8413
