BU64D-MDKT (1987)
Toyota Dyna/Toyoace
(8708- )BU6#,8#,90,93,98
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-96300 |
BU90;BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-96313 |
BU64..DMP;BU62..DM2..CBU |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-96313 |
BU64..DMP;BU62..DM2..CBU |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90341-10004 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-09073 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-08009 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-16001 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-96305 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10103 |
BU64..DMP;BU62..DMP..CBU |
5 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10103 |
BU64..DMP;BU62..DMP..CBU |
5 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36631-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-96302 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-96304 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 97103-06304 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56002 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56002 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97103-06304 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-96303 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| Common parts | ||||
| 90119-10029 | ||||
| 90170-10082 | ||||
| 90201-14002 | ||||
| 90214-14001 | ||||
| 91111-40820 | ||||
| 91611-61050 | ||||
| 94125-41400 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
(8708- )DMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-96300 |
BU90;BU64..DMP;BU62..DMP..CBU |
1 | ||
| 33162B - GASKET, POWER TAKE-OFF COVER | ||||
| 33162-96300 |
BU90;BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-96313 |
BU64..DMP;BU62..DM2..CBU |
1 | ||
| 36610A - BOLT, LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90341-10004 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF) | ||||
| 90501-09073 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF) | ||||
| 90360-08009 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| 90311-16001 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36610S - RING, O (FOR POWER TAKE-OFF) | ||||
| 96711-31055 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| 36611-96305 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36611A - BOLT, STUD (FOR POWER TAKE-OFF CASE) | ||||
| 90116-10103 |
BU64..DMP;BU62..DMP..CBU |
5 | ||
| 36624 - CAP, POWER TAKE-OFF BEARING | ||||
| 36624-36010 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36631 - GASKET, POWER TAKE-OFF BEARING RETAINER | ||||
| 36631-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36631-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| 36714-96302 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| 36718-96304 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36718A - BEARING(FOR POWER TAKE-OFF IDLER GEAR FRONT) | ||||
| 97103-06304 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56002 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| 90521-56002 |
BU64..DMP;BU62..DMP..CBU |
2 | ||
| 36723A - BEARING (FOR OUTPUT SHAFT FRONT) | ||||
| 97103-06304 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| 36728-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36811 - FORK, POWR TAKE-OFF SHIFT, NO.1 | ||||
| 36811-96300 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36814 - SHAFT, POWR TAKE-OFF FORK, NO.1 | ||||
| 36814-96303 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| 36814D - BOLT, SERRATION (FOR POWER TAKE-OFF SHAFT) | ||||
| 90114-08025 |
BU64..DMP;BU62..DMP..CBU |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 90461-08202 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-61035 | ||||
| 91611-61050 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||

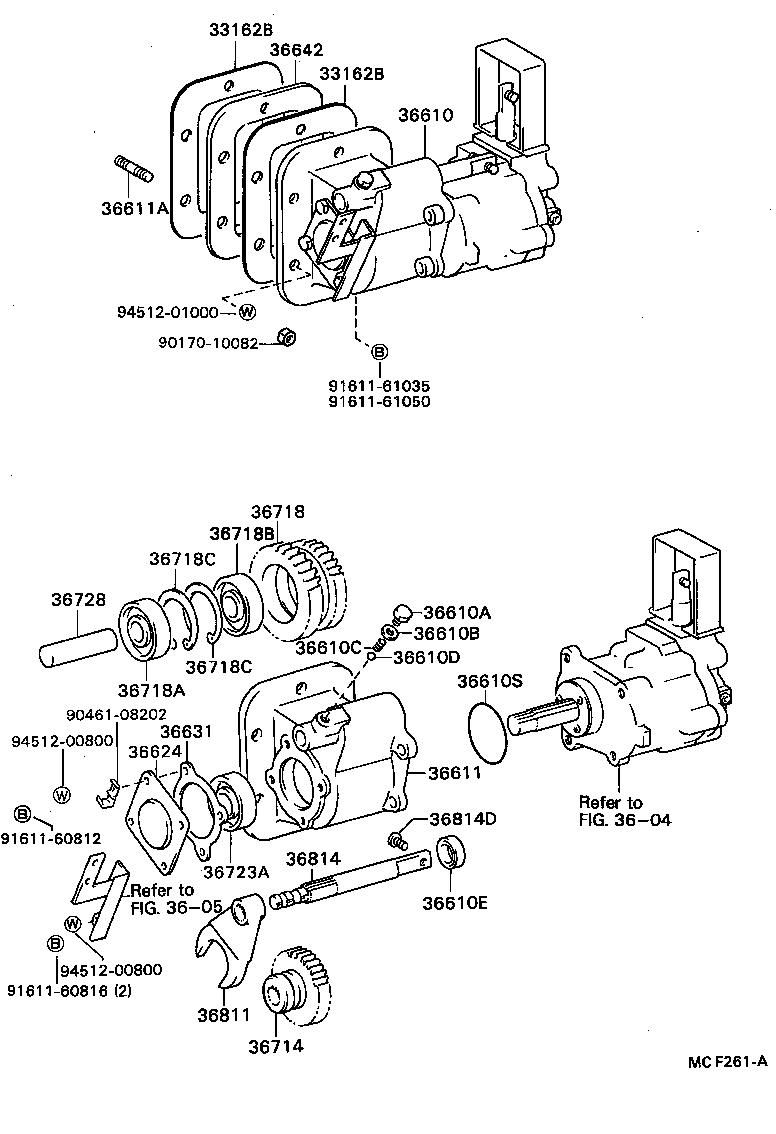

| Linked diagrams | ||||
| 3604 | ||||
| 3605 | ||||
