BU64-MDDT (1984)

Toyota Dyna/Toyoace

Production Sep 1984 - Aug 1987
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )DTP ; (8409- )BU80,81..T4 ; (8409-)BU60,61,70..ST ; (8409- )BU

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36080

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
51900-36100

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-36080

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
51900-36100

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
Common parts
91611-60820
91651-40616

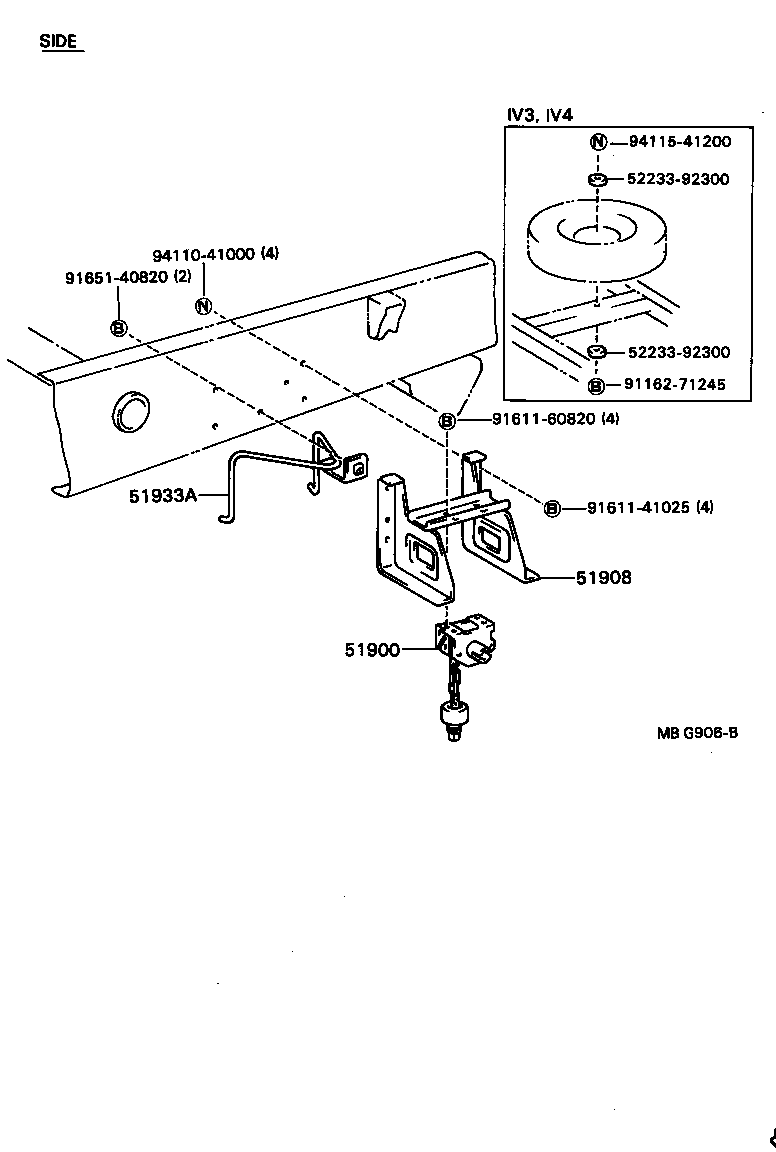

(8409- )BTP,CTP ; (8409- )BU64..T3 ; (8410- )IV4

Click highlighted areas on diagram

diagram 51900 51908 51933A 5223392300 5223392300 9116271245 9161141025 9161160820 9165140820 9411041000 9411541200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36080

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
51900-36100

BU6#,8#,93..T1,T3,T4,TW1,TW4

 1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-36060

BU60,64..T3

 1
Common parts
52233-92300
91162-71245
91611-41025
91611-60820
91651-40820
94110-41000
94115-41200
