BU62H-MDDHT3 (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )BU62..275,30T

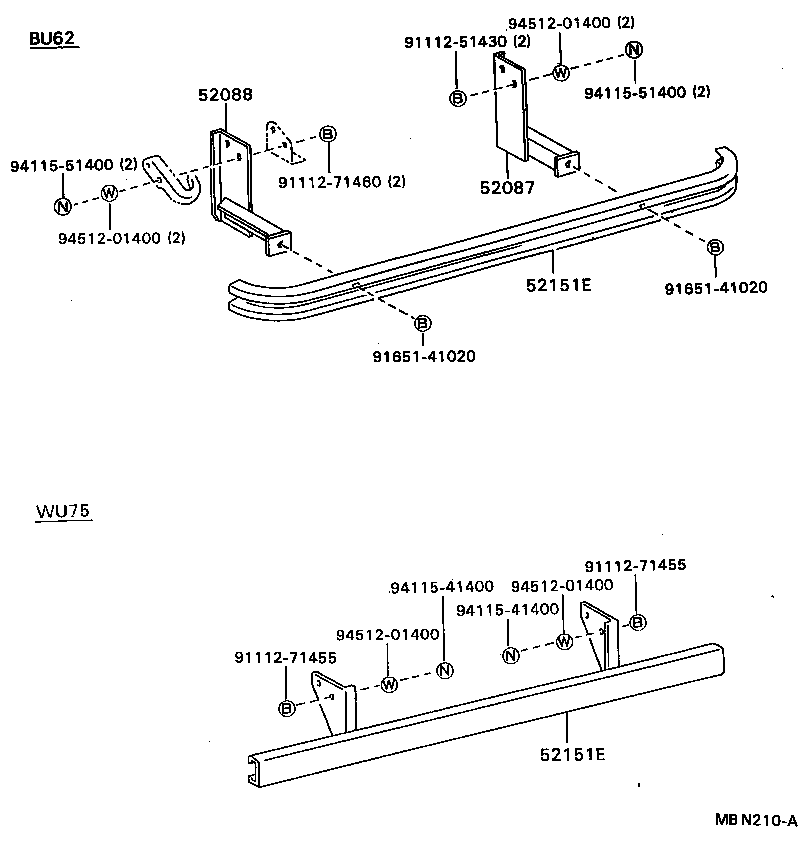

Click highlighted areas on diagram

diagram 52087 52088 52151E 52151E 9111251430 9111271455 9111271455 9111271460 9165141020 9165141020 9411541400 9411541400 9411551400 9411551400 9451201400 9451201400 9451201400 9451201400
Part # Description Qty Price
52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH
52087-92800

BU62..275,30T

 1
52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH
52088-92800

BU62..275,30T

 1
52151E - BAR, REAR BUMPER
52151-92801

BU85..IV3;BU62..275,30T;BU80,81,82..T2,T4;BU85..(T3,TW1)..CBU

 1
52151E - BAR, REAR BUMPER
52151-92801

BU85..IV3;BU62..275,30T;BU80,81,82..T2,T4;BU85..(T3,TW1)..CBU

 1
Common parts
91112-51430
91112-71455
91112-71460
91651-41020
94115-41400
94115-51400
94512-01400
