BU62H-MDDHT3 (1984)
Toyota Dyna/Toyoace

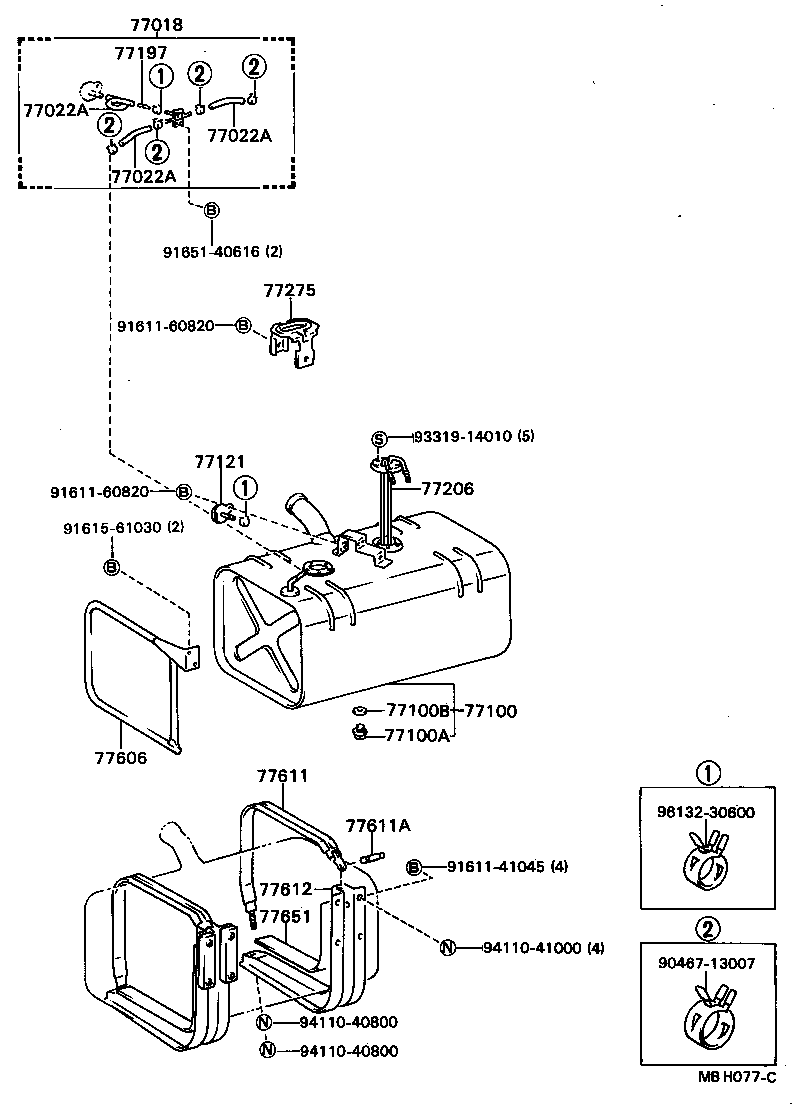

ILLUST NO. 1 OF 2(8409- )BU85..T3 ; (8409- )BTP,DTP,ETP ; (8409- )BU60,62,64,77,82,9#..DM1,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-36130 |
BU62..BTP,CTP,DTP;BU60,61,62,85..DM3,T1,T3 *TCA=70L,90L |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-36730 |
BU62..BTP,CTP,DTP;BU6#..DM1,DM3,DM4,T1,T3 *TCA=70L |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
BU6#,7#,8#,90,93,95..CBU,IV3 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
BU6#,7#,8#,90,93,95..CBU,IV3 |
1 | ||
| 77121 - PROTECTOR, FUEL TUBE | ||||
| 77243-36010 |
BU6#,7#,8#,9# |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-36191 |
BU62,85..BTP,CTP,DTP,ETP;BU61,62,64,77,82,85,9#..(DM1,DM3,DM4,T3,TW1)..(CBU,IV3) *TCA=70L,90L |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-36140 |
BU62,85..DTP,ETP;BU61,62,77,85,95..T3 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
BU82,85;BU6#,77,80,81,9#..03S |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77633-36090 |
BU62,85..DTP,ETP;BU61,62,77,85,95..T3 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-36100 |
BU62,85..BTP,CTP,DTP,ETP;BU60,61,62,77,85..DM3,T1,T3 |
2 | ||
| Common parts | ||||
| 90467-13007 | ||||
| 91611-41045 | ||||
| 91611-60820 | ||||
| 91615-61030 | ||||
| 91651-40616 | ||||
| 93319-14010 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 96132-30600 | ||||
ILLUST NO. 2 OF 2(8409- )BU60,61,62,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77206-36220 |
BU61,62,81,82 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77206-36220 |
BU61,62,81,82 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77206-36220 |
BU61,62,81,82 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-36240 |
BU62..03S |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-36240 |
BU62..03S |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77205-36240 |
BU62..03S |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,70,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 23271-56050 |
BU6#,7#,8#,9# *H,L=180,W/PROTECTOR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,70,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 23271-56050 |
BU6#,7#,8#,9# *H,L=180,W/PROTECTOR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,70,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 23271-56050 |
BU6#,7#,8#,9# *H,L=180,W/PROTECTOR |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BU61,62,81,82,85,90,95..CBU,IV3 *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU61,62,81,82,85,90,93,95..CBU,IV3 *H,L=320,内径=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BU61,62,81,82,85,90,95..CBU,IV3 *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU61,62,81,82,85,90,93,95..CBU,IV3 *H,L=320,内径=7.6 |
1 | ||
| 77241C - HOSE, FUEL, NO.3 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
BU61,62,81,82,85,90,95..CBU,IV3 *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU61,62,81,82,85,90,93,95..CBU,IV3 *H,L=320,内径=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,7#,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,7#,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU6#,7#,8#,9# *H,L=180,内径=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-08020 |
BU60,61,62,70,80,81,82 *H,L=140,内径=7.6 |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
BU60,61,62,8#,90,95..03S *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=340,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=320,内径=7.6 |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
BU60,61,62,8#,90,95..03S *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=340,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=320,内径=7.6 |
1 | ||
| 77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1) | ||||
| 95332-08030 |
BU60,61,62,8#,90,95..03S *H,L=280,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=340,内径=7.6 |
1 | ||
| 95332-08040 |
BU60,61,62,8#,90,93,95..03S *H,L=320,内径=7.6 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 58266-36200 |
BU60,61,62,70,80,81,82 |
2 | ||
| Common parts | ||||
| 90179-08001 | ||||
| 90179-08146 | ||||
| 90461-08614 | ||||
| 90467-13007 | ||||
| 91611-40820 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
