BU62D-MDMTJ (1987)
Toyota Dyna/Toyoace
Production
Aug 1987
-
Aug 1988
Engine
13B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

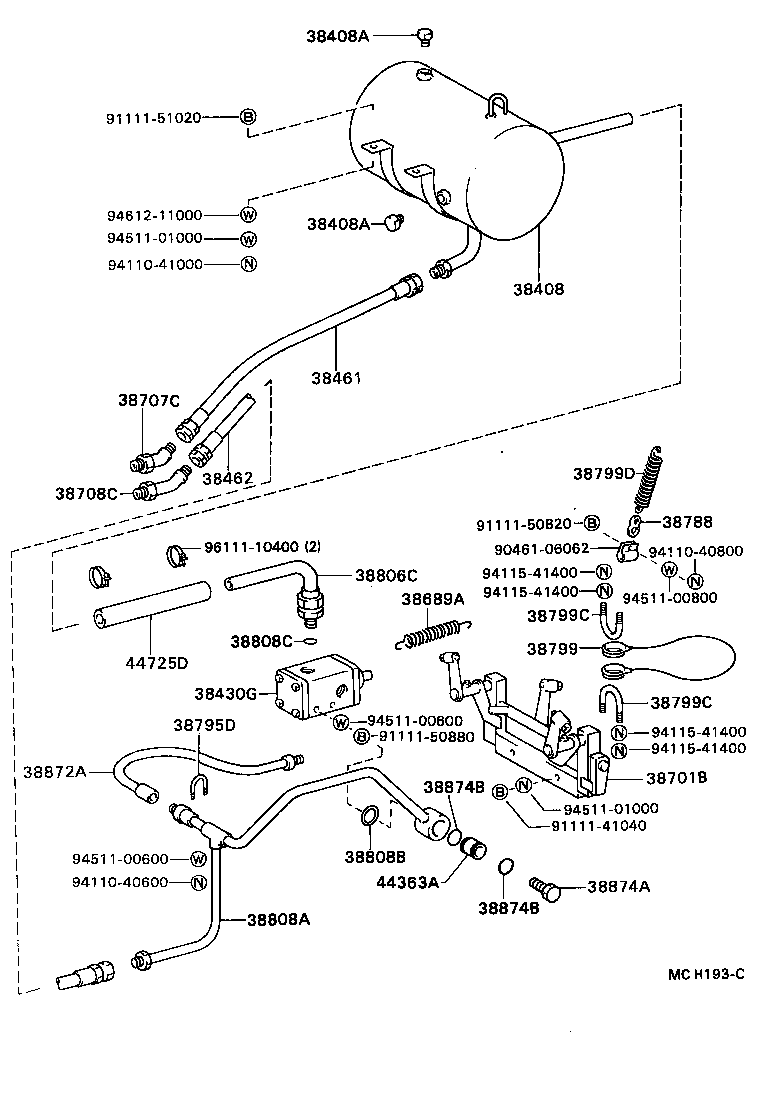

(8708- )DM3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38408 - TANK SUB-ASSY, POWER | ||||
| 38408-93301 |
BU62..DM3 |
1 | ||
| 38408A - PLUG (FOR POWER TANK) | ||||
| 90341-20001 |
BU62..DM3 |
2 | ||
| 38430G - VALVE ASSY, POWER | ||||
| 38430-93301 |
BU62..DM3 |
1 | ||
| 38461 - HOSE, POWER OIL PUMP SUCTION | ||||
| 38461-93301 |
BU62..DM3 |
1 | ||
| 38462 - HOSE, POWER OIL PUMP DELIVERY | ||||
| 38462-93301 |
BU62..DM3 |
1 | ||
| 38689A - SPRING, TENSION (FOR STOP LEVER RETURN) | ||||
| 90506-20032 |
BU62..DM3 |
1 | ||
| 38701B - ARM SUB-ASSY, LIFT | ||||
| 38701-93300 |
BU62..DM3 |
1 | ||
| 38707C - UNION (FOR SUCTION HOSE) | ||||
| 90407-26001 |
BU62..DM3 |
1 | ||
| 38708C - UNION (FOR DELIVERY HOSE) | ||||
| 90407-26001 |
BU62..DM3 |
1 | ||
| 38788 - HOOK, WIRE JOINT | ||||
| 38788-93300 |
BU62..DM3 |
1 | ||
| 38795D - BOLT, U (FOR DELIVERY PIPE) | ||||
| 90117-06005 |
BU62..DM3 |
2 | ||
| 38799 - ROPE, WIRE | ||||
| 38799-93300 |
BU62..DM3 |
1 | ||
| 38799C - BOLT, U (FOR LIFT ARM) | ||||
| 90117-14015 |
BU62..DM3 |
2 | ||
| 38799C - BOLT, U (FOR LIFT ARM) | ||||
| 90117-14015 |
BU62..DM3 |
2 | ||
| 38799D - SPRING, TENSION (FOR LIFT ARM) | ||||
| 90506-20032 |
BU62..DM3 |
1 | ||
| 38806C - PIPE SUB-ASSY, HOIST CYLINDER SUCTION, NO.1 | ||||
| 38806-93301 |
BU62..DM3 |
1 | ||
| 38808A - PIPE SUB-ASSY, HOIST CYLINDER DELIVERY | ||||
| 38808-93301 |
BU62..DM3 |
1 | ||
| 38808B - RING, 0 (FOR HOIST CYLINDER DELIVERY) | ||||
| 90301-40003 |
BU62..DM3 |
1 | ||
| 38808C - RING, O (FOR HOIST CYLINDER SUCTION) | ||||
| 96711-35030 |
BU62..DM3 |
3 | ||
| 38872A - PIPE, HOIST CYLINDER | ||||
| 38872-93300 |
BU62..DM3 |
1 | ||
| 38874A - NIPPLE, HOIST CYLINDER | ||||
| 38874-93301 |
BU62..DM3 |
1 | ||
| 44363A - STRAINER, OIL(FOR HOIST CYLINDER PIPE) | ||||
| 44363-93300 |
BU62..DM3 |
1 | ||
| 44725D - HOSE, SUCTION(FOR POWER OIL PUMP) | ||||
| 44725-93300 |
BU62..DM3 |
1 | ||
| Common parts | ||||
| 90341-20001 | ||||
| 90461-06062 | ||||
| 91111-41040 | ||||
| 91111-50820 | ||||
| 91111-50880 | ||||
| 91111-51020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94612-11000 | ||||
| 96111-10400 | ||||

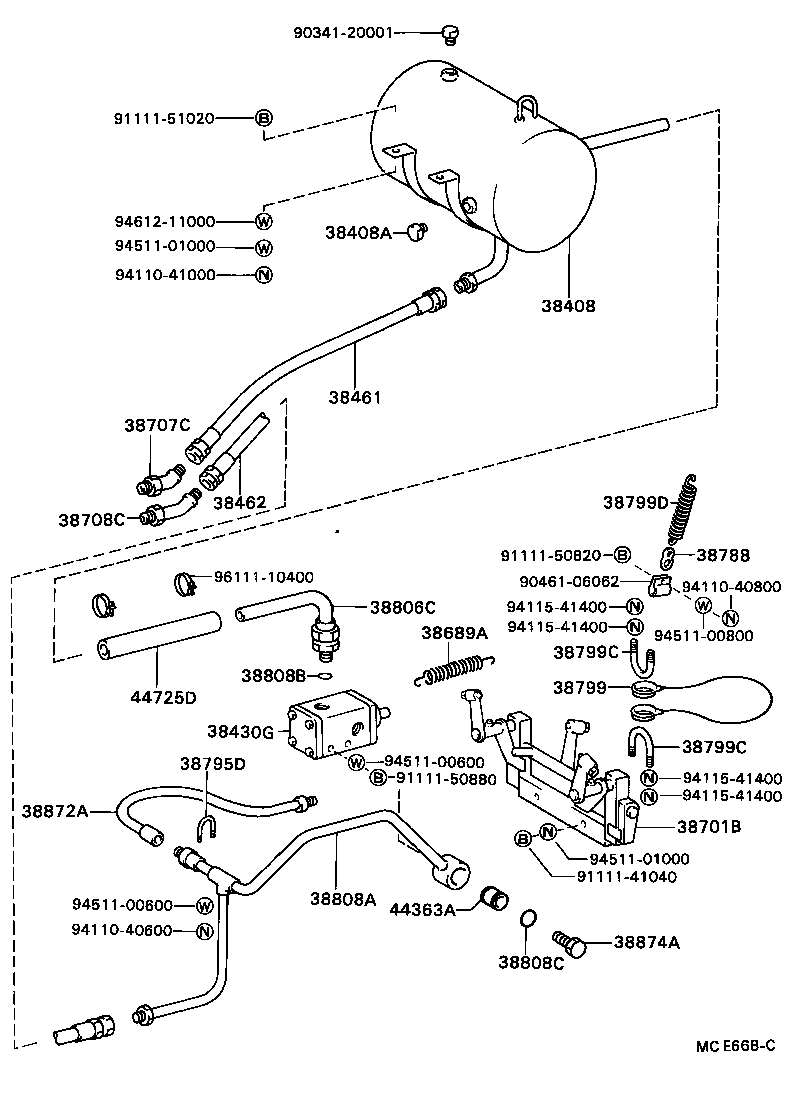

(8808-8910)DM3
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-06062 | ||||
| 91111-41040 | ||||
| 91111-50820 | ||||
| 91111-50880 | ||||
| 91111-51020 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-41400 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94511-01000 | ||||
| 94612-11000 | ||||
| 96111-10400 | ||||
