BU62D-MDLT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )DM1,DM2,DM4

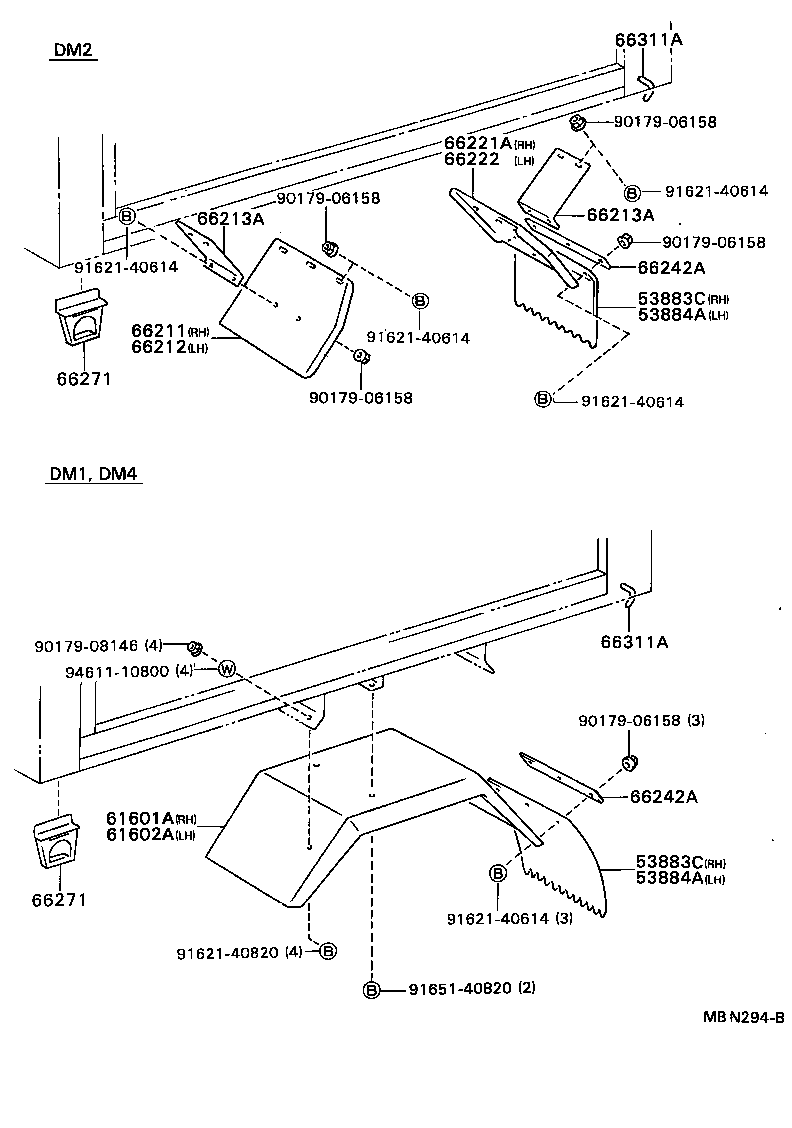

Click highlighted areas on diagram

diagram 53883C 53883C 53884A 53884A 61601A 61602A 66211 66212 66213A 66213A 66221A 66222 66242A 66242A 66271 66271 66311A 66311A 9017906158 9017906158 9017906158 9017906158 9017906158 9017908146 9162140614 9162140614 9162140614 9162140614 9162140614 9162140820 9165140820 9461110800
Part # Description Qty Price
53883C - MUDGUARD, FENDER, RH
53883-93100

BU62..DYN..DM2..CBU

 1
53883C - MUDGUARD, FENDER, RH
53883-93100

BU62..DYN..DM2..CBU

 1
53884A - MUDGUARD, FENDER, LH
53884-93100

BU62..DYN..DMP..CBU

 1
53884A - MUDGUARD, FENDER, LH
53884-93100

BU62..DYN..DMP..CBU

 1
66211 - PLATE, REAR FENDER, NO.1
66211-93100

BU62..DM2..CBU

 1
66212 - PLATE, REAR FENDER, NO.2
66212-93100

BU62..DM2..CBU

 1
66213A - STAY, REAR FENDER, NO.1
66235-93101

BU62..DM2..CBU

 2
66213A - STAY, REAR FENDER, NO.1
66235-93101

BU62..DM2..CBU

 2
66221A - PLATE, REAR FENDER, REAR RH
66221-93101

BU62..DM2..CBU

 1
66222 - PLATE, REAR FENDER, REAR LH
66222-93100

BU62..DM2..CBU

 1
66242A - PLATE, BAFFLE RUBBER
66332-93103

BU62..DM2..CBU

LH

 1
66242-93100

BU62..DM2..CBU

RH

 1
66242A - PLATE, BAFFLE RUBBER
66332-93103

BU62..DM2..CBU

LH

 1
66242-93100

BU62..DM2..CBU

RH

 1
66271 - STEP, REAR BODY
66271-93100

BU62,64..DMP..CBU

 2
66271 - STEP, REAR BODY
66271-93100

BU62,64..DMP..CBU

 2
Common parts
90179-06158
90179-08146
91621-40614
91621-40820
91651-40820
94611-10800
