BU62-PDD (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 13B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )T3..ST

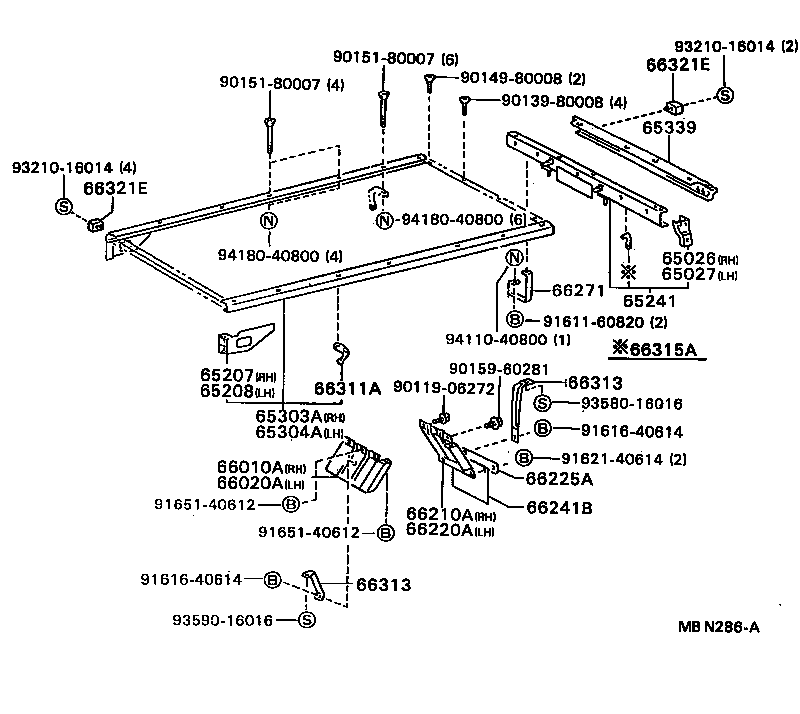

Click highlighted areas on diagram

diagram 65026 65027 65207 65208 65241 65303A 65304A 65339 66010A 66020A 66210A 66220A 66225A 66241B 66271 66311A 66313 66313 66315A 66321E 66321E 9011906272 9013980008 9014980008 9015180007 9015180007 9015960281 9161160820 9161640614 9161640614 9162140614 9165140612 9165140612 9321016014 9321016014 9358016016 9359016016 9411040800 9418040800 9418040800
Part # Description Qty Price
65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH
65026-92705

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

 1
65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH
65027-92705

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

 1
65207 - BRACKET SUB-ASSY, GUARD FRAME, RH
65207-92708

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

 1
65208 - BRACKET SUB-ASSY, GUARD FRAME, LH
65208-92700

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

 1
65241 - SILL, REAR CROSS
65240-92714

BU60,61,62..T3..20T..CBU

 1
65303A - FRAME SUB-ASSY, FLOOR SIDE, RH
65303-92712

BU60,61,62..T3..ST..CBU

 1
65304A - FRAME SUB-ASSY, FLOOR SIDE, LH
65304-92711

BU60,61,62..T3..ST..CBU

 1
65339 - FRAME, FLOOR, REAR
65339-92700

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-92701

BU60,61,62..T3..ST..CBU

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-92701

BU60,61,62..T3..ST..CBU

 1
66210A - FENDER ASSY, REAR NO.1 RH
66210-92705

BU60,61,62..T3..ST..CBU

 1
66220A - FENDER ASSY, REAR NO.1 LH
66220-92705

BU60,61,62..T3..ST..CBU

 1
66225A - SUPPORT, BAFFLE RUBBER
66242-92705

BU60,61,62..T3..ST..CBU

 2
66241B - BAFFLE, RUBBER
66241-92702

BU60,61,62..DYN..T3..ST..CBU

左側

 1
66241-92707

BU60,61,62..DYN..T3..ST..CBU

右側

 1
66271 - STEP, REAR BODY
66271-92701

BU60,61,62..T3..20T..CBU

 1
66311A - HOOK, ROPE, NO.1
66313-92701

BU6#..(T2,T3,T4)..CBU

FLOOR SIDE FRAME

 10
66313-92701

BU6#,8#,90..(T2,T3,T4,TW2,TW4)..CBU

FLOOR SIDE FRAME

 1
66313 - SUPPORT, REAR FENDER
66236-92702

BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,62,64,8#,90,93,95..TR..CBU

FRONT

 2
66235-92701

BU6#,82,85,90,93,95..(T3,TW1)..(20T,275,30T,35T)..CBU

REAR

 2
66313 - SUPPORT, REAR FENDER
66236-92702

BU60..(T2,T3,T4,TW2,TW4)..CBU;BU61,62,64,8#,90,93,95..TR..CBU

FRONT

 2
66235-92701

BU6#,82,85,90,93,95..(T3,TW1)..(20T,275,30T,35T)..CBU

REAR

 2
66315A - HOOK, ROPE
66315-92201

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

RR CROSS SILL

 2
66321E - BUMPER, GATE RUBBER
66321-92704

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

SIDE GATE

 4
66321-92805

BU82..(T3,TW1)..20T..CBU;BU61,64,85,90,93,95..TR..CBU;BU60,62..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

TAIL GATE

 2
66321E - BUMPER, GATE RUBBER
66321-92704

BU6#..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

SIDE GATE

 4
66321-92805

BU82..(T3,TW1)..20T..CBU;BU61,64,85,90,93,95..TR..CBU;BU60,62..(T2,T3,T4,TW2,TW4)..(175,20T)..CBU

TAIL GATE

 2
Common parts
90119-06272
90139-80008
90149-80008
90151-80007
90159-60281
91611-60820
91616-40614
91621-40614
91651-40612
93210-16014
93580-16016
93590-16016
94110-40800
94180-40800
