BU61-MDGT3 (1988)
Toyota Dyna/Toyoace

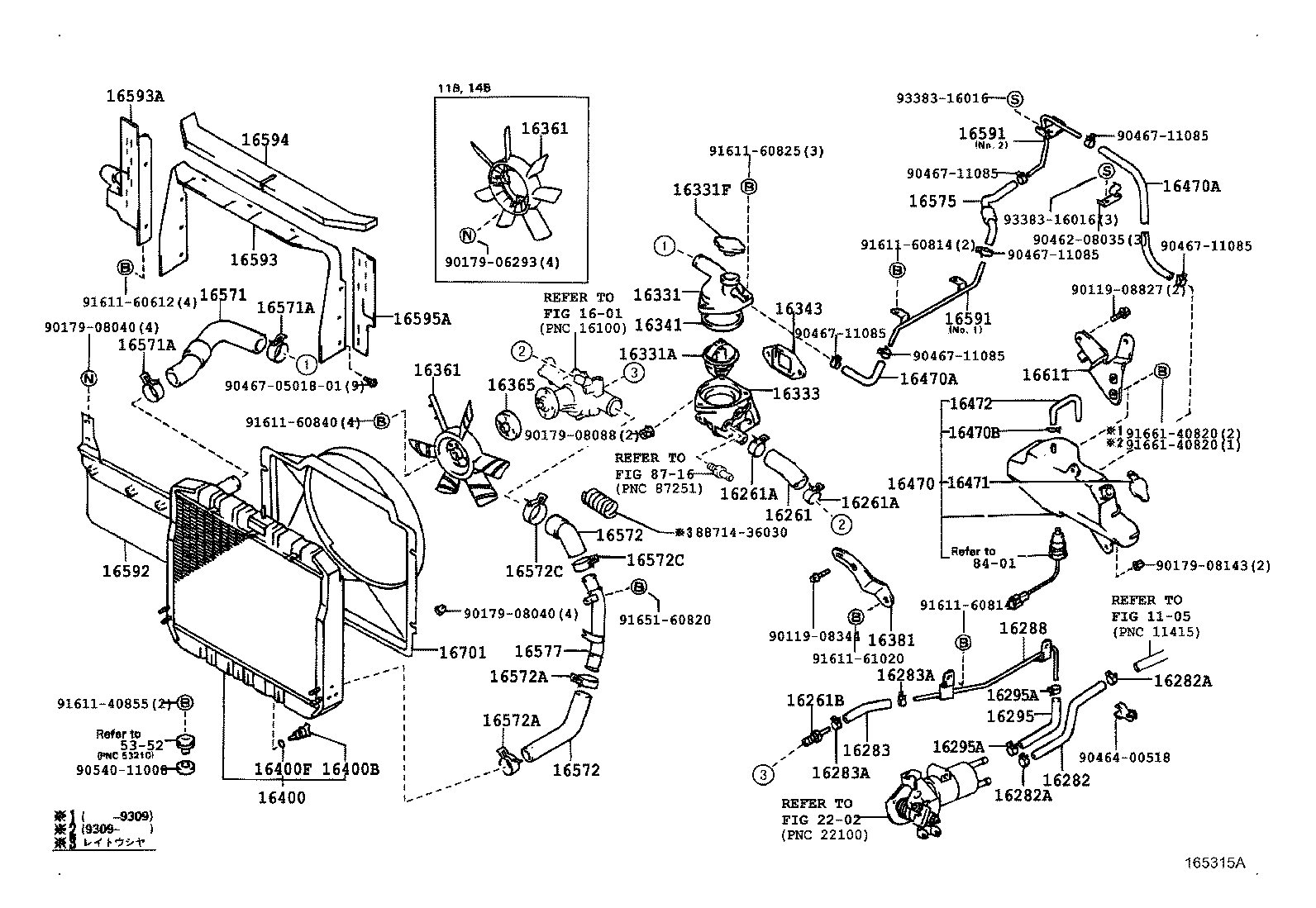

ILLUST NO. 1 OF 2(8808- )B,11B,14B,3B..BU6#,83,84,87..03S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-56012 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-28004 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52028 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-56010 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-56010 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-56010 |
11B,14B..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-56010 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-15004 |
11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56040 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03080 |
14B..BU73..03S;B,11B,13BT,14B#,3B..BU6#,70,72,74,78,8#,9#..CBU,IV3 *WAX 88−100 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
14BT..BU88,91,94,96;B,11B,13BT,14B,3B..BU6#,70,72,73,74,83,84,85,87,90,95 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-56070 |
B,11B,13BT,14B..BU6#,70,8#,9# |
1 | ||
| 16333-56072 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16333-56072 |
B,11B,13BT,14B#,3B..BU6#,70,78,8#,9# |
1 | ||
| 16333-56071 |
B,11B,13BT,14B..BU6#,70,8#,9# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-56030 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-56022 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16343-56021 |
B,11B,13BT,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16343-56023 |
B,11B,14B#,3B..BU6#,7#,8#,9# |
1 | ||
| 16361 - FAN | ||||
| 16361-56070 |
11B,13BT,14B..BU61,66,67,84,85,87,90,95 ﾌｧﾝ(OD=410),ﾏｰｸ:ｸ |
1 | ||
| 16361-56070 |
14B..BU94..T4;14B..BU88..275;14BT..BU88,91,94,96;14B..BU88..T4..5F..30T;11B,13BT,14B..BU61,66,67,84,85,87,90,95 ﾌｧﾝ(OD=410),ﾏｰｸ:ｸ |
1 | ||
| 16361 - FAN | ||||
| 16361-56070 |
11B,13BT,14B..BU61,66,67,84,85,87,90,95 ﾌｧﾝ(OD=410),ﾏｰｸ:ｸ |
1 | ||
| 16361-56070 |
14B..BU94..T4;14B..BU88..275;14BT..BU88,91,94,96;14B..BU88..T4..5F..30T;11B,13BT,14B..BU61,66,67,84,85,87,90,95 ﾌｧﾝ(OD=410),ﾏｰｸ:ｸ |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-58040 |
14B..BU87..(T3,T4)..5F..20T..IV3;11B,14B..BU61,88..(T2,T4)..5F..20T..IV3 TECS ﾚｲﾄｳｼﾔ=ﾚｲﾄｳｼﾔｼﾔｼ |
1 | ||
| 16381-56060 |
B,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96..CBU,IV3 |
1 | ||
| 16381-58040 |
14BT..BU91..T4..IV3;14B..BU88..T2..5F..IV3;14B..BU88..T4..30T..IV3;14B..BU87..(T3,T4)..5F..20T..IV3;11B,14BT..BU61,88,96..5F..WT..IV3 TECS ﾚｲﾄｳｼﾔ=ﾚｲﾄｳｼﾔｼﾔｼ |
1 | ||
| 16381-58040 |
14BT..BU91..T4..IV3;14B..BU88..4FC..30T..IV3;14B..BU88..(T2,T4)..5F..IV3;14B..BU87..(T3,T4)..5F..20T..IV3;11B,14BT..BU61,88,96..5F..WT..IV3 TECS ﾚｲﾄｳｼﾔ=ﾚｲﾄｳｼﾔｼﾔｼ |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-58090 |
B,11B,14B..BU60,61,66,67,70,83,84,87..5F..(CBU,IV3) |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
14B..BU96;14BT..BU96..5F;B,11B,14B#..BU60,61,66,67,70,78,8#,91,94 |
1 | ||
| 16417-58090 |
B,11B,14B..BU60,61,66,67,70,83,84,87 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
14B..BU96;14BT..BU96..5F;B,11B,13BT,14B#..BU60,61,66,67,70,78,8#,90,91,94,95 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-56121 |
B,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12038 |
B,11B,14B,3B..BU6#,83,84,87..03S 長さ=900 |
1 | ||
| 90910-05174 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 長さ=420 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12038 |
B,11B,14B,3B..BU6#,83,84,87..03S 長さ=900 |
1 | ||
| 90910-05174 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 長さ=420 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
B,11B,14B,3B..BU6#,72,73,74,83,84,87..03S |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-56052 |
B,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-56110 |
B,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-56060 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,13BT,14B#,3B..BU6#,70,78,8#,9# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
B,11B,13BT,14B#,3B..BU6#,70,78,8#,9# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#,3B..BU6#,7#,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-56050 |
B,11B,14B,3B..BU6#,70,83,84,87 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572-56091 |
B,11B,14B#,3B..BU6#,70,78,8#,9# |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-56090 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 WATER PUMP SIDE |
1 | ||
| 16572-56091 |
B,11B,14B#,3B..BU6#,7#,8#,9# WATER PUMP SIDE |
1 | ||
| 16573-56050 |
B,11B,14B,3B..BU6#,70,83,84,87 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 16572-56091 |
B,11B,14B#,3B..BU6#,70,78,8#,9# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10490 |
B,11B,14B#,3B..BU6#,7#,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 WATER PUMP SIDE |
1 | ||
| 96111-10510 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 PIPE SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10490 |
B,11B,14B#,3B..BU6#,7#,8#,9# PIPE SIDE |
1 | ||
| 96111-10570 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 WATER PUMP SIDE |
1 | ||
| 96111-10510 |
B,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96 PIPE SIDE |
1 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-56010 |
B,11B,14B,3B..BU6#,83,84,87..03S |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-56050 |
B,11B,14B#,3B..BU6#,70,78,83,84,87,88,91,94,96 |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56040 |
14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3 NO.2 |
1 | ||
| 16591-56070 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 16591-56070 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 16591-56040 |
14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3 NO.2 |
1 | ||
| 16591 - PIPE, RADIATOR | ||||
| 16591-56040 |
14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3 NO.2 |
1 | ||
| 16591-56070 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 16591-56070 |
B,11B,14B,3B..BU6#,70,72,73,74,83,84,87 NO.1 |
1 | ||
| 16591-56040 |
14B..BU87..V;B,11B,14B,3B..BU6#,84,87..DM1,DM2,DM3,DM4,T1,T2,T3 NO.2 |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16593-56030 |
B,11B,14B,27LPG,3B..BU6#,70,72,73,74,83,84,87 |
1 | ||
| 16593A - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-56040 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-56020 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 16595A - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-56020 |
B,11B,14B,3B..BU6#,70,83,84,87 |
1 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-56050 |
B,11B,14B,27LPG,3B..BU6#,72,73,74,83,84,87..03S |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-58030 |
11B,14B..BU61,66,67,84,87..5F |
1 | ||
| Common parts | ||||
| 88714-36030 | ||||
| 90119-08344 | ||||
| 90119-08827 | ||||
| 90179-06293 | ||||
| 90179-08040 | ||||
| 90179-08088 | ||||
| 90179-08143 | ||||
| 90462-08035 | ||||
| 90464-00518 | ||||
| 90467-0501801 | ||||
| 90467-11085 | ||||
| 90540-11008 | ||||
| 91611-40855 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 91661-40820 | ||||
| 93383-16016 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1601 | ||||
| 2202 | ||||
| 5352 | ||||
| 8401 | ||||
| 8716 | ||||
