BU61-MDGT (1988)
Toyota Dyna/Toyoace

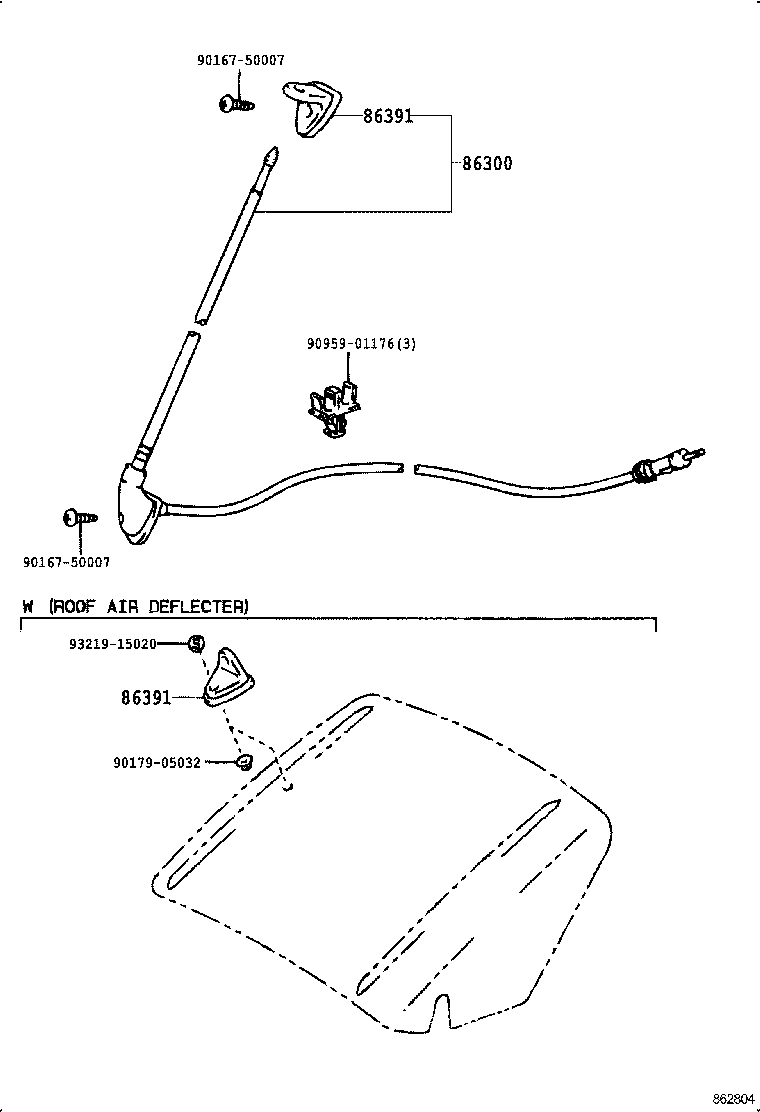

ILLUST NO. 1 OF 2(8808-9109)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-95403 |
BU6#,7#,8#,9# |
1 | ||
| 86300-37020 |
BU88..03S;BU87..T4..CBU;BU87..5F..275;BU6#,7#,83,84,9#;BU87..T4..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T) |
1 | ||
| 86300-37030 |
BU60,61,67,78..T2,T3,T4;BU66,88..TR..03S..20T..DSL ｱﾘ(*WDL) |
1 | ||
| 86300-95404 |
BU60,61,67,78..T2,T3,T4;BU66,88..TR..03S..20T..DSL ｱﾘ(*WDL) |
1 | ||
| 86300-95404 |
BU87..03S;BU66,88..TR..03S..20T..DSL;BU60,61,67,70,72,74,78,83,84..HRF,SRF,T1,T2,T3,T4 ｱﾘ(*WDL) |
1 | ||
| 86300-37030 |
BU66..TR..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL ｱﾘ(*WDL) |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-95700 |
BU6#,7#,8#,9# |
1 | ||
| 86391-37020 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| 86391-37020 |
BU87..V;BU66..DM1;BU87..4FC..275;BU60,61,68,78,84,88,9#..03S |
1 | ||
| 86391-37010 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-95700 |
BU6#,7#,8#,9# |
1 | ||
| 86391-37020 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| 86391-37020 |
BU87..V;BU66..DM1;BU87..4FC..275;BU60,61,68,78,84,88,9#..03S |
1 | ||
| 86391-37010 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| Common parts | ||||
| 90167-50007 | ||||
| 90179-05032 | ||||
| 90959-01176 | ||||
| 93219-15020 | ||||

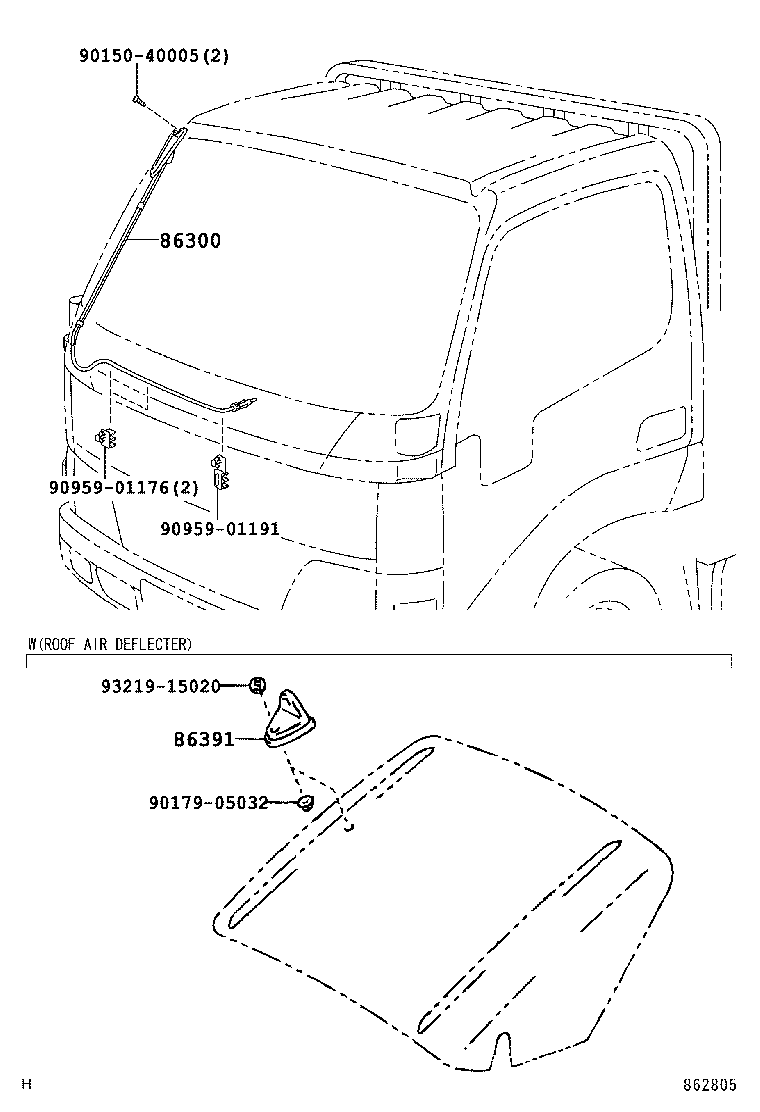

ILLUST NO. 2 OF 2(9109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-95403 |
BU6#,7#,8#,9# |
1 | ||
| 86300-37020 |
BU88..03S;BU87..T4..CBU;BU87..5F..275;BU6#,7#,83,84,9#;BU87..T4..5F..IV3;BU87..(T2,T3,TW1)..(20T,30T) |
1 | ||
| 86300-37030 |
BU60,61,67,78..T2,T3,T4;BU66,88..TR..03S..20T..DSL ｱﾘ(*WDL) |
1 | ||
| 86300-95404 |
BU60,61,67,78..T2,T3,T4;BU66,88..TR..03S..20T..DSL ｱﾘ(*WDL) |
1 | ||
| 86300-95404 |
BU87..03S;BU66,88..TR..03S..20T..DSL;BU60,61,67,70,72,74,78,83,84..HRF,SRF,T1,T2,T3,T4 ｱﾘ(*WDL) |
1 | ||
| 86300-37030 |
BU66..TR..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL ｱﾘ(*WDL) |
1 | ||
| 86391 - HOLDER, ANTENNA | ||||
| 86391-95700 |
BU6#,7#,8#,9# |
1 | ||
| 86391-37020 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| 86391-37020 |
BU87..V;BU66..DM1;BU87..4FC..275;BU60,61,68,78,84,88,9#..03S |
1 | ||
| 86391-37010 |
BU87..V;BU87..4FC;BU66..DM1;BU60,61,68,78,83,84,88,9#..03S |
1 | ||
| Common parts | ||||
| 90150-40005 | ||||
| 90179-05032 | ||||
| 90959-01176 | ||||
| 90959-01191 | ||||
| 93219-15020 | ||||
