BU61-MDGT (1988)
Toyota Dyna/Toyoace
(8808- )BU60,61,66..DM2,DM5,T2,T4,TW2,TW4

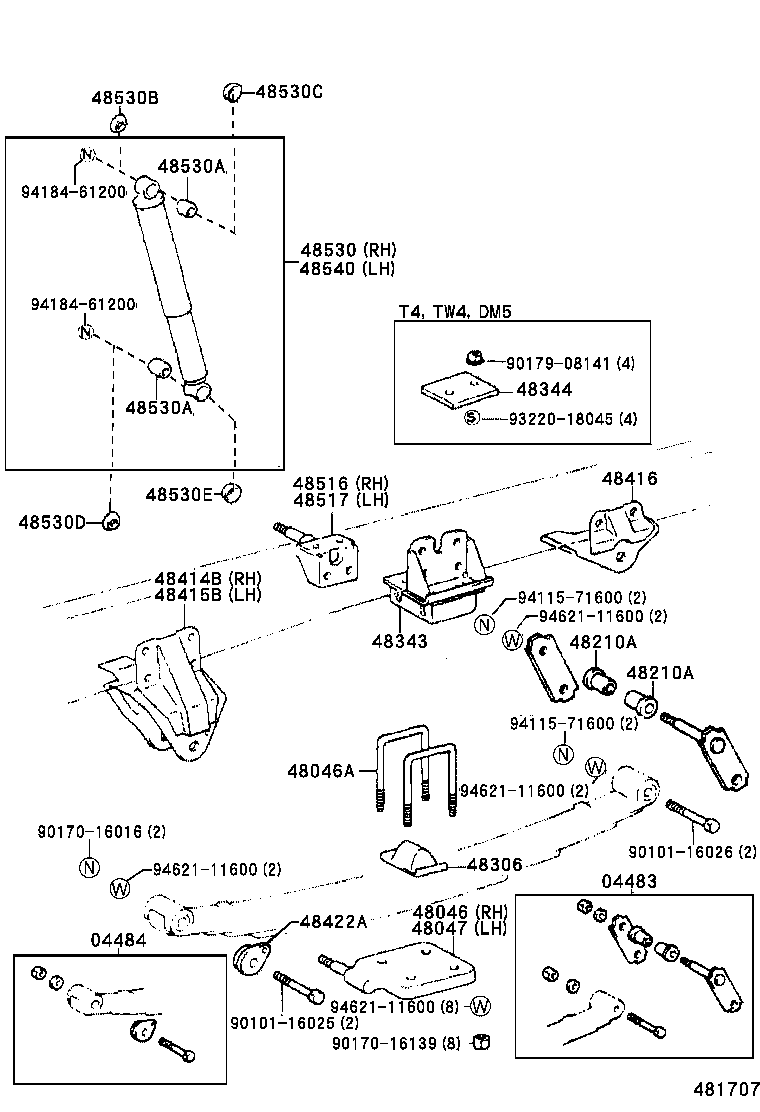

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-36060 |
BU66..175,20T;BU60,61,67,68,70,72 |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-36040 |
BU66..175,20T;BU60,61,67,68,70 |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-36160 |
BU60,61,66..DM2,T2,TW2 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-16022 |
BU66..TOY..DM3;BU60,61,67,68,7#,8#,9#;BU66..DM1,DM2,DM5,T2,T3,T4,TW4 長さ=280 |
4 | ||
| 90117-16014 |
BU60,61,66..DM2,T2,T4,TW2,TW4 長さ=225 |
4 | ||
| 90117-16115 |
BU66..ST;BU66..275,30T;BU66..175..IV3;BU61,67,68,7#,8#,9#;BU66..TOY..175..CBU;BU66..DM1,DM2,DM5,T2,T4 長さ=265 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-36160 |
BU60,61,66..DM2,T2,TW2 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
BU66..175,20T;BU60,61,67,68,70,72 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-23002 |
BU66..175,20T;BU60,61,67,68,70,72 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-36031 |
BU60,61,66..(DM2,DM3,DM5,T2,T3,T4,TW2,TW4)..WT..(175,20T) |
2 | ||
| 48343 - BRACKET, REAR AXLE CUSHION | ||||
| 48308-36040 |
BU60,61,66..DM2,T2,TW2 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-36240 |
BU60,61,66..DM2,T2,TW2 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48414-36240 |
BU60,61,66..DM2,T2,TW2 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48417-36110 |
BU60,61,66..DM2,T2,TW2 左側 |
1 | ||
| 48416-36230 |
BU60,61,66..DM2,T2,TW2 右側 |
1 | ||
| 48422A - SUPPORT, REAR SPRING PIN | ||||
| 48422-36090 |
BU66..175,20T;BU60,61,67,68,70 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-36050 |
BU87..V;BU78,85,87,88..20T;BU60,61,66,68,74,83,84..(DM1,DM2,DM3,T2,T3,T4,TW2,TW4)..WT |
1 | ||
| 48505-36050 |
BU87..V;BU74,78,87,88..20T;BU60,61,66,68,83,84..(DM1,DM3,T2,T3,T4,TW2,TW4)..WT |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-36050 |
BU87..V;BU78,85,87,88..20T;BU60,61,66,68,74,83,84..(DM1,DM2,DM3,T2,T3,T4,TW2,TW4)..WT |
1 | ||
| 48505-36050 |
BU87..V;BU74,78,87,88..20T;BU60,61,66,68,83,84..(DM1,DM3,T2,T3,T4,TW2,TW4)..WT |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39755 |
BU72..DM3,DM4,T3;BU60,61,66,68..WT..(175,20T) |
1 | ||
| 48531-39756 |
BU72..DM3,DM4,T3;BU60,61,66,68..WT..(175,20T) |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU73;BU95..DYN;BU85..TOY..30T;BU6#,70,72,74,78,83,84,87,88,90,91,94,96..CBU,IV3 |
4 | ||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16011 |
BU73;BU95..DYN;BU85..TOY..30T;BU6#,70,72,74,78,83,84,87,88,90,91,94,96..CBU,IV3 |
4 | ||
| 90385-16011 |
BU6#,70,8#,9#..CBU,IV3 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BU66..03S..WT;BU60,61,67,83,84,87,90,91,95,96..(TR,V)..WT |
2 | ||
| 90948-03003 |
BU95..DYN;BU72..DM3,DM4,T3;BU66,68..WT..(CBU,IV3);BU60,61,67,83,84,87,90,91,96..(TR,V)..WT |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU95..DYN;BU85..TOY..30T;BU66..WT..(CBU,IV3);BU60,61,67,68,72,73,74,78,83,84,87,88,90,91,94,96..WT |
2 | ||
| 90948-03004 |
BU6#,8#,9#..WT..(CBU,IV3) |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03003 |
BU66..20T;BU60,61,70,85,88,94 |
2 | ||
| 90948-03003 |
BU66..175,20T;BU85..TOY..30T;BU60,61,68,7#,88,94 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
BU6#,70,8#,9#..CBU,IV3 |
2 | ||
| 90948-03004 |
BU73;BU95..DYN;BU85..TOY..30T;BU6#,70,72,74,78,83,84,87,88,90,91,94,96..CBU,IV3 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39755 |
BU72..DM3,DM4,T3;BU60,61,66,68..WT..(175,20T) |
1 | ||
| 48531-39756 |
BU72..DM3,DM4,T3;BU60,61,66,68..WT..(175,20T) |
1 | ||
| Common parts | ||||
| 90101-16025 | ||||
| 90101-16026 | ||||
| 90170-16016 | ||||
| 90170-16139 | ||||
| 90179-08141 | ||||
| 93220-18045 | ||||
| 94115-71600 | ||||
| 94184-61200 | ||||
| 94621-11600 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 48155-3B470 | ||||
(9309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 48216-3B060 | ||||
| 94110-71000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )BU73..20T,IV4 ; (8808- )BU6#,70,72,74,78,8#,9#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94184-61000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
(8910- ) ; (9005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-71000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48146-60070 |
BU60,61,66,67..(DM2,DM3,T1,T2,T3,T4,TW1,TW2,TW4)..(175,20T) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-25050 |
BU60,61,67..T1,T2,T3,TW1,TW2;BU66,68..(DM1,DM2,DM3,DM5,T2,T3)..20T |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-71000 | ||||
(9307- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94184-61000 | ||||
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-16013 |
BU66..175,20T;BU60,61,67,68,72 |
8 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-3B220 |
BU60,61,66..T2,TW2 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3B220 |
BU60,61,66..T2,TW2 6枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60540 |
BU60,61,66..T2,TW2 |
2 | ||
| Common parts | ||||
| 94110-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
