Toyota Dyna/toyoace BU61 FRONT AXLE HUB

BU61-MDFTJ (1988)

Toyota Dyna/Toyoace

Production Aug 1988 - May 1995

Engine 11B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )BU60,61,66,70,84,87,88

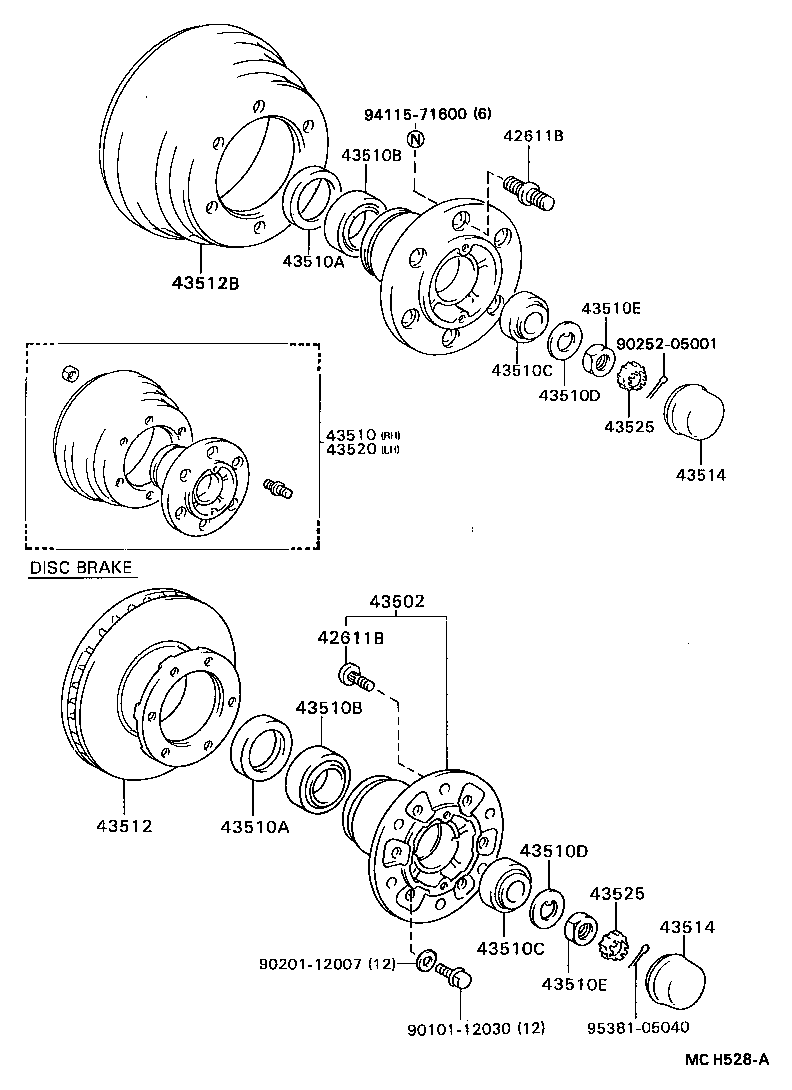

Click highlighted areas on diagram

Part #	Description	Period	Qty
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02062	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	08/1988 - 03/1992	1
90942-02061	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	08/1988 - 03/1992	1
90942-02050	BU60,61,66,72,83,84,87..DM5,T4,TW4 右側	08/1988 - 05/1995	1
90942-02061	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	03/1992 - 10/1993	1
90942-02062	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	03/1992 - 10/1993	1
90942-02061	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	10/1993 - 05/1995	1
90942-02062	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	10/1993 - 05/1995	1
90942-02051	BU60,61,66,72,83,84,87..DM5,T4,TW4 左側	08/1988 - 05/1995	1
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36120	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43512B - DRUM, BRAKE
43512-36090	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	2
43514 - CAP, FRONT HUB GREASE
43514-36030	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36120	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	1
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010	BU6#,70,78,8#,94	08/1988 - 05/1995	2
Common parts
90252-05001

(8808- )BU60,61,66,83,84,87

Click highlighted areas on diagram

Part #	Description	Period	Qty
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02050	BU60,61,66,72,83,84,87..DM5,T4,TW4 右側	08/1988 - 05/1995	1
90942-02062	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	08/1988 - 03/1992	1
90942-02061	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	08/1988 - 03/1992	1
90942-02061	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	03/1992 - 10/1993	1
90942-02062	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	03/1992 - 10/1993	1
90942-02061	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	10/1993 - 05/1995	1
90942-02062	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	10/1993 - 05/1995	1
90942-02051	BU60,61,66,72,83,84,87..DM5,T4,TW4 左側	08/1988 - 05/1995	1
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02050	BU60,61,66,72,83,84,87..DM5,T4,TW4 右側	08/1988 - 05/1995	1
90942-02062	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	08/1988 - 03/1992	1
90942-02061	BU60,61,66,83,84,87..T4,TW4 ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	08/1988 - 03/1992	1
90942-02061	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	03/1992 - 10/1993	1
90942-02062	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	03/1992 - 10/1993	1
90942-02061	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),右側	10/1993 - 05/1995	1
90942-02062	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU ｱﾘ(ﾌﾛﾝﾄﾃﾞｲｽｸﾌﾞﾚ-ｷ),左側	10/1993 - 05/1995	1
90942-02051	BU60,61,66,72,83,84,87..DM5,T4,TW4 左側	08/1988 - 05/1995	1
43502 - HUB SUB-ASSY, FRONT AXLE
43502-25030	BU66..175;BU87..4FC..20T;BU60,61,83,84..T4,TW4 左側	08/1988 - 03/1992	1
43501-25010	BU66..175;BU87..4FC..20T;BU60,61,83,84..T4,TW4 右側	08/1988 - 03/1992	1
43502-25030	BU60,66..TW4;BU60..TOY..T4;BU87..T4..4FC;BU61,83,84..T4;BU60..DYN..T4..CBU 左側	03/1992 - 10/1993	1
43501-25010	BU60,66..TW4;BU60..TOY..T4;BU87..T4..4FC;BU61,83,84..T4;BU60..DYN..T4..CBU 右側	03/1992 - 10/1993	1
43502-25030	BU61,84..T4;BU60,66..TW4;BU60..T4..CBU;BU87..T4..4FC 左側	10/1993 - 05/1995	1
43501-25010	BU61,84..T4;BU60,66..TW4;BU60..T4..CBU;BU87..T4..4FC 右側	10/1993 - 05/1995	1
43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH
43510-36120	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-68001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-42045	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-28001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-27001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43510E - NUT (FOR STEERING KNUCKLE)
90170-26001	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43512 - DISC, FRONT
43512-25050	BU60..TW4;BU87..T4..4FC;BU61,83,84..T4;BU66..DYN..175..IV3;BU66..TOY..(T4,TW4);BU60,87..TOY..T4..5F;BU66..DYN..T4..4FC..IV3;BU66..DYN..(T4,TW4)..CBU;BU60,87..DYN..T4..5F..CBU	03/1992 - 10/1993	2
43512-25050	BU60..TW4;BU61,84..T4;BU66..175..IV3;BU66,87..T4..4FC;BU60,87..T4..5F..CBU;BU66..(T4,TW4)..5F..CBU	10/1993 - 05/1995	2
43512-25050	BU60,61,66,83,84,87..T4,TW4	08/1988 - 03/1992	2
43512B - DRUM, BRAKE
43512-36090	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	2
43514 - CAP, FRONT HUB GREASE
43514-36030	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43514 - CAP, FRONT HUB GREASE
43514-36030	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH
43520-36120	BU60,61,66,83,84,87..DM5,T4,TW4	08/1988 - 05/1995	1
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010	BU6#,70,78,8#,94	08/1988 - 05/1995	2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-36010	BU6#,70,78,8#,94	08/1988 - 05/1995	2
Common parts
90101-12030
90201-12007
90252-05001
94115-71600
95381-05040
