BU61-MDFT (1987)

Toyota Dyna/Toyoace

Production Aug 1987 - Aug 1988
Engine 11B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST ; (8708- )BU85..V ; (8708- )BU62..275,30T ; (8708- )BU8#,90,

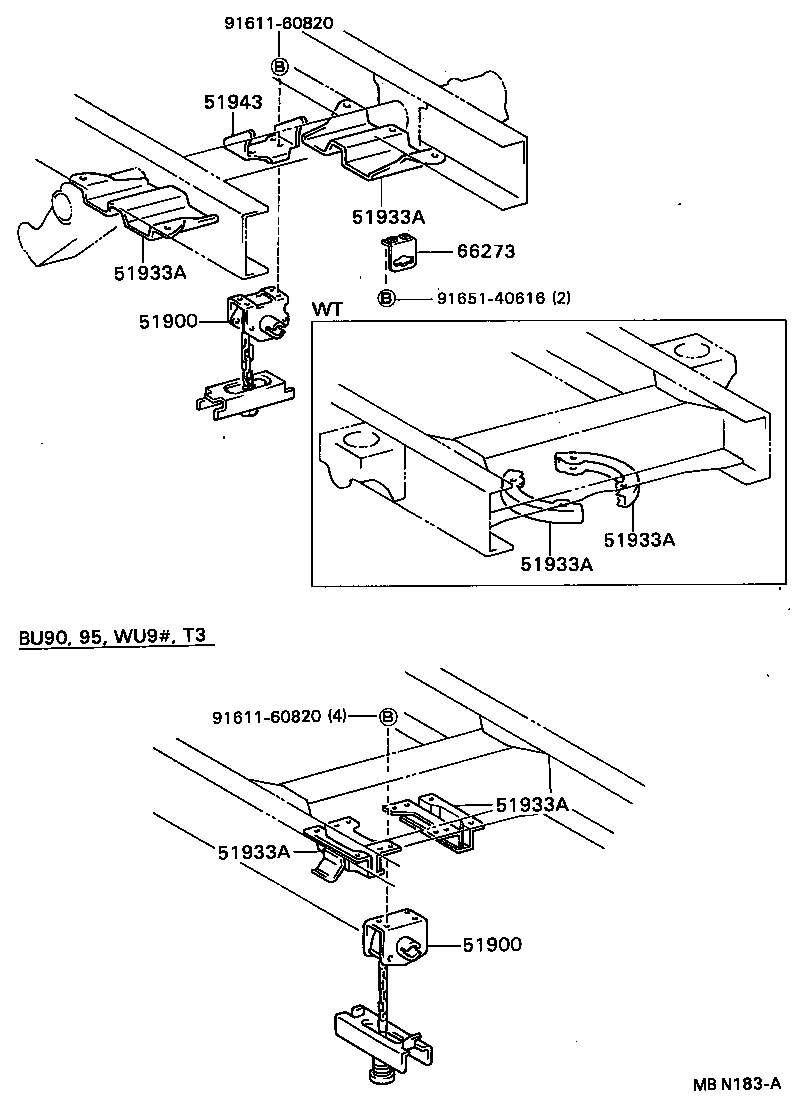

Click highlighted areas on diagram

diagram 51900 51900 51933A 51933A 51933A 51933A 51933A 51933A 51943 66273 9161160820 9161160820 9165140616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
Common parts
91611-60820
91651-40616

(8708- )BU62..T3..4FC..WT ; (8708- )BU6#..T3,T4..5F..WT..20T

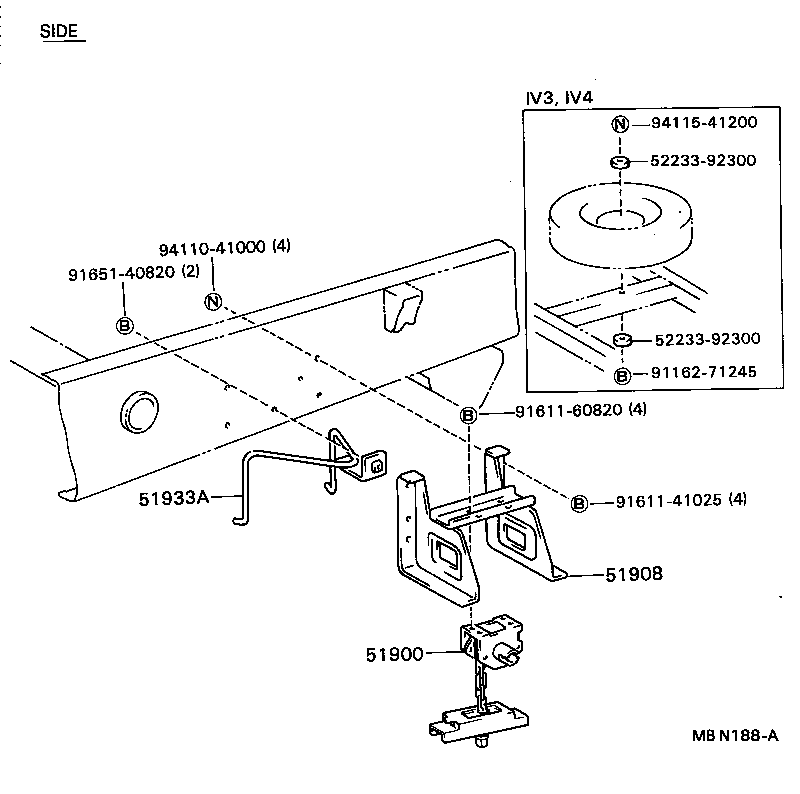

Click highlighted areas on diagram

diagram 51900 51908 51933A 5223392300 5223392300 9116271245 9161141025 9161160820 9165140820 9411041000 9411541200
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-36101

BU6#,8#,93..(T1,T3,T4,TW1,TW4)..(CBU,IV3)

 1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-36040

BU60,61,62..T4,TW4

REAR

 1
51908-36060

BU60,61,62..T4..5F

SIDE

 1
Common parts
52233-92300
91162-71245
91611-41025
91611-60820
91651-40820
94110-41000
94115-41200
